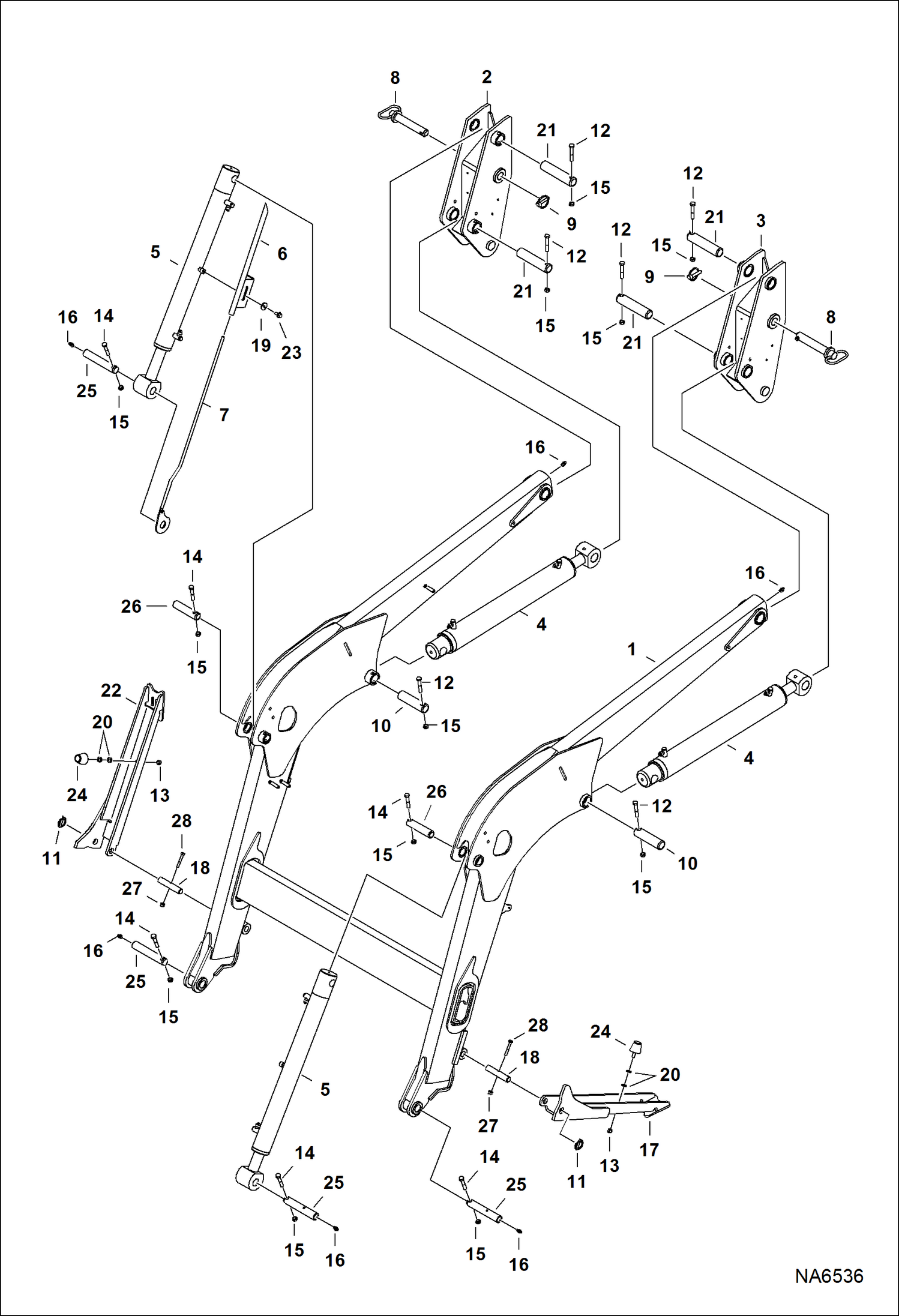

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AKPW, AL4F) (Main Frame) (Outer Mounted Stand) (AKPW00101 & Above) (AL4F01064 & Above) Компактные тракторы

1

7181377

LIFT ARM

2

7181400

MOUNT, LIFT ARM RH

3

7181673

MOUNT, LIFT ARM LH

4

7183341

CYLINDER, LIFT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2706

5

7183451

CYLINDER, TILT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2707 - bucket

6

7188398

TUBE, INDICATOR

7

7188400

ROD, INDICATOR

8

7181396

PIN, HITCH

9

7116284

PIN, LOCK

10

7181395

PIN, PIVOT

11

6649706

PIN

12

17C636

BOLT

13

59D5

NUT 5

14

17C632

BOLT 5

15

85D6

NUT, 5

16

10H25

FITTING, GREASE 5

17

7196828

STAND, LIFT ARM LH

18

7196833

PIN

19

17EM80

WASHER

20

29E5

WASHER

21

7181397

PIN, PIVOT

22

7196830

STAND, LIFT ARM RH

23

59CM816

BOLT

24

6733616

BUMPER

25

7187462

PIN, CYLINDER

26

7181398

PIN, PIVOT

27

89D4

NUT

28

17C432

BOLT
