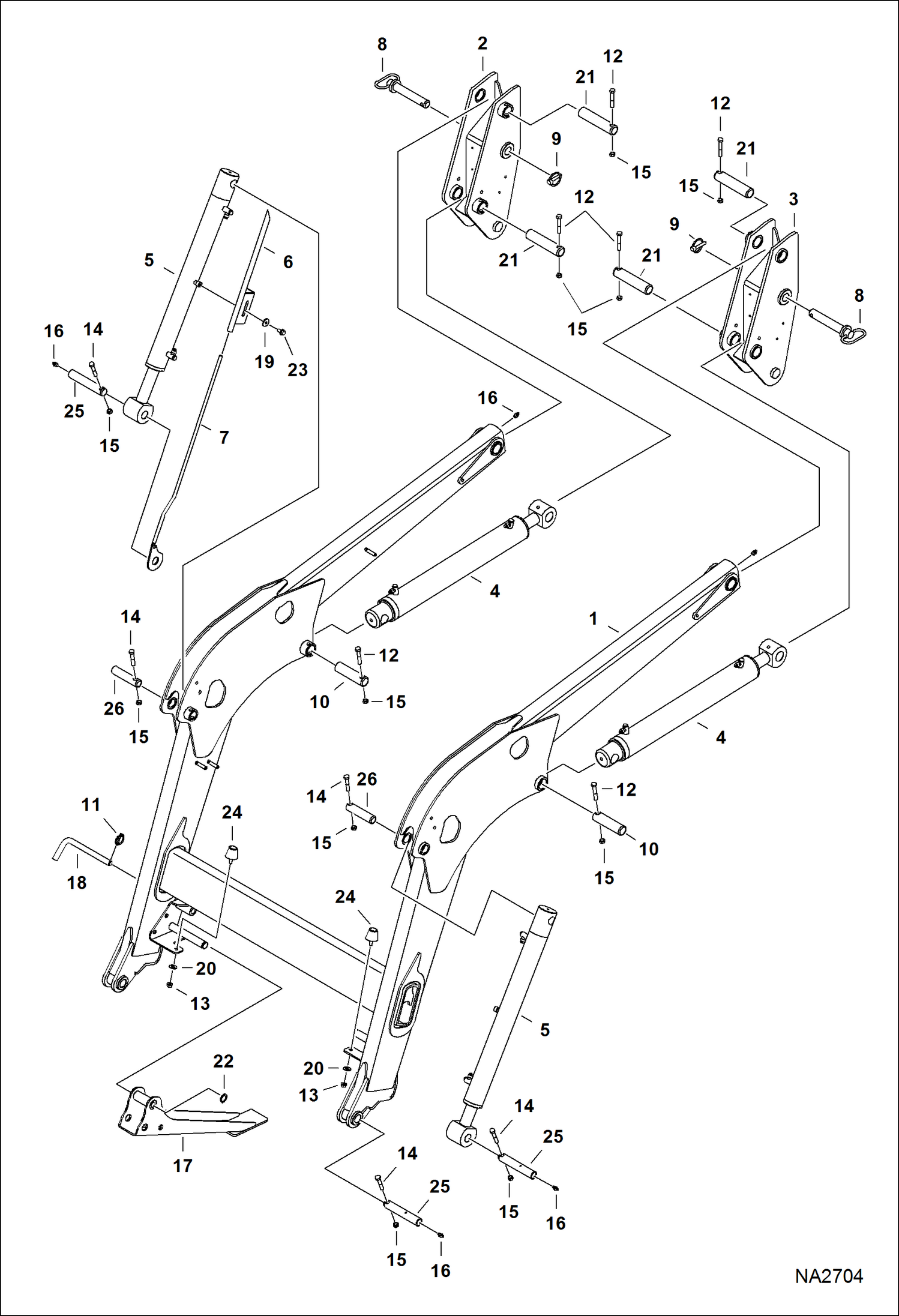

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AKPW, AL4F) (Main Frame) (Inner Mounted Stand) (AL4F00101 - 01063) Компактные тракторы

1

LIFT ARM See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA6536 - NLA - Order 7181377 lift arm, 7196828 stand, 7196830 stand, (2) each of 7196833 pin, 6649706 pin, 89D4 nut, 17C432 bolt, 6733616 bum

2

7181400

MOUNT, LIFT ARM RH

3

7181673

MOUNT, LIFT ARM LH

4

7183341

CYLINDER, LIFT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2706

5

7183451

CYLINDER, TILT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2707 - bucket

6

7188398

TUBE, INDICATOR

7

7188400

ROD, INDICATOR

8

7181396

PIN, HITCH

9

7116284

PIN, LOCK

10

7181395

PIN, PIVOT

11

6649706

PIN

12

17C636

BOLT

13

61D5

NUT

14

17C632

BOLT 5

15

85D6

NUT, 5

16

10H25

FITTING, GREASE 5

17

7188423

STAND, LIFT ARM

18

7187684

PIN, STAND LINCH

19

17EM80

WASHER

20

29E5

WASHER

21

7181397

PIN, PIVOT

22

6534668

SNAP RING

23

59CM816

BOLT

24

6733616

BUMPER

25

7187462

PIN, CYLINDER

26

7181398

PIN, PIVOT
