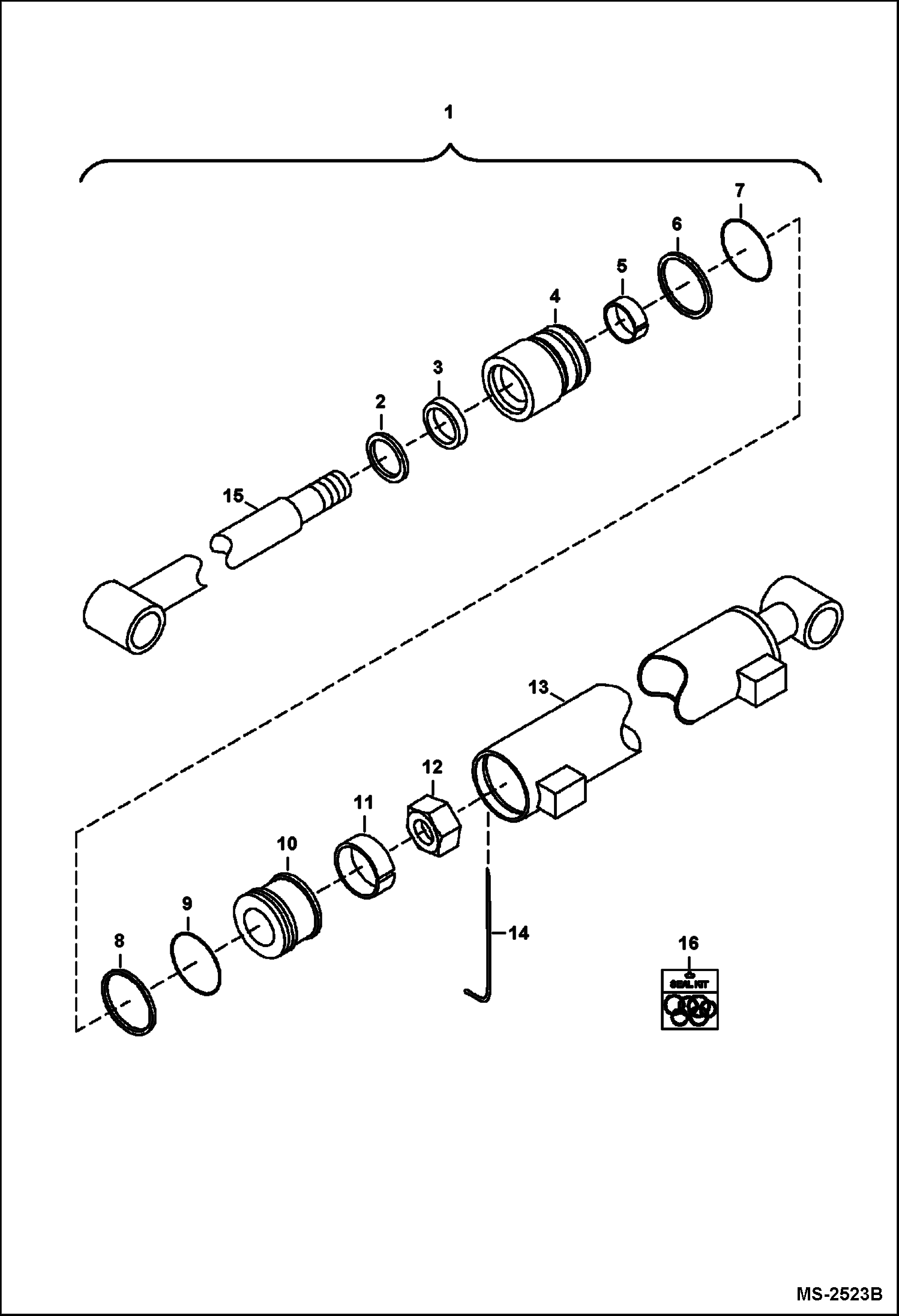

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AE35) (Lift & Bucket Cylinder) Компактные тракторы

1

7008332

CYLINDER, LIFT

1

7008333

CYLINDER, TILT

2

SEAL, WIPER NSS - order Ref. 16

3

SEAL, ROD NSS - order Ref. 16

4

6693758

HEAD, CYLINDER for lift cylinder

4

7003596

HEAD, CYLINDER for tilt cylinder

5

RING, WEAR NSS - order Ref. 16

6

WASHER, BACKUP NSS - order Ref. 16

7

O-RING NSS - order Ref. 16

8

SEAL, PISTON NSS - order Ref. 16

9

O-RING NSS - order Ref. 16

10

6693757

PISTON, CYLINDER for lift cylinder

10

7008344

PISTON, CYLINDER for tilt cylinder

11

RING, WEAR NSS - order Ref. 16

12

6693701

NUT for lift cylinder

12

7003675

NUT, LOCK for tilt cylinder - Was 7008345 - D

13

7008346

TUBE, CYLINDER for lift cylinder

13

7008347

TUBE, CYLINDER for tilt cylinder

14

WIRE, RETAINING NSS - order Ref. 16

15

7008342

ROD, CYLINDER for lift cylinder

15

7008343

ROD, CYLINDER for tilt cylinder

16

6693747

KIT, SEAL CYLINDER for lift cylinder

16

7003599

KIT, SEAL for tilt cylinder
