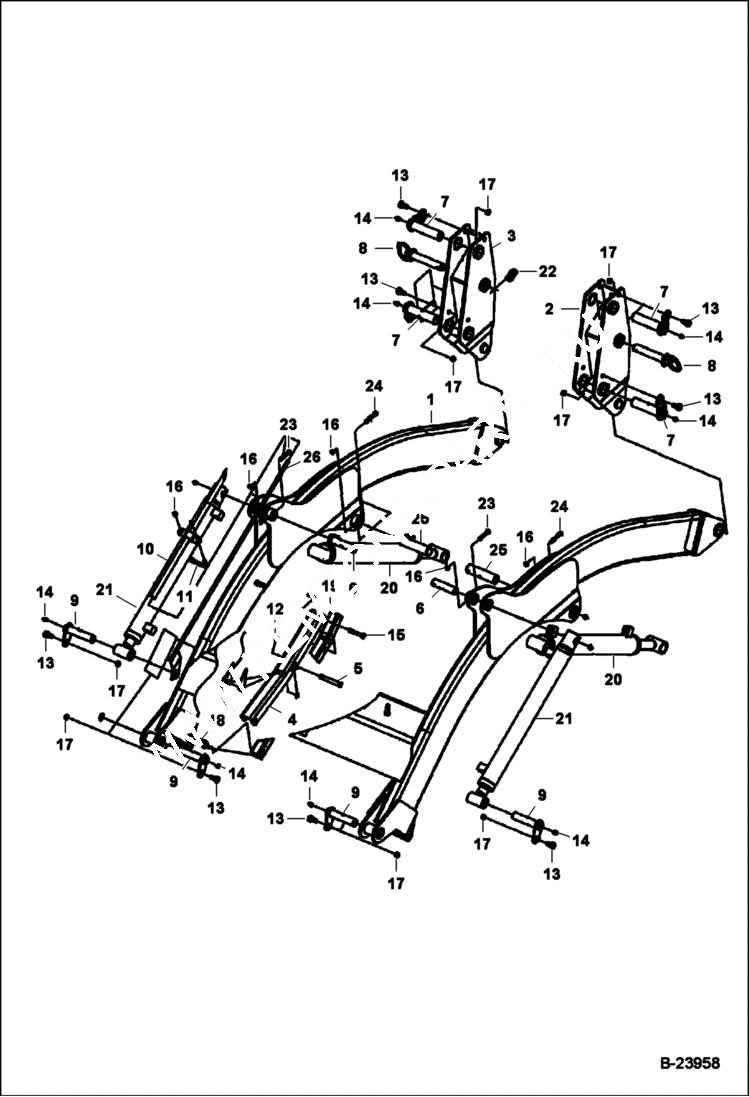

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AE35) (Main Frame) Компактные тракторы

1

7008327

BOOM ASSY

2

7008328

FRAME

3

7008329

FRAME

4

7003656

SUPPORT, LEG

5

6693551

PIN

6

6693585

PIN

7

7008330

PIN

8

7008331

PIN

9

7003654

PIN

10

7003652

TUBE, LEVELING

11

7003657

U-BOLT

12

6693552

PIN

13

6693580

BOLT

14

10H25

FITTING, GREASE 5

15

17C640

BOLT 5

16

85D5

NUT 5

17

85D6

NUT, 5

18

6693629

SNAP RING

19

7003655

SUPPORT, LEG

20

7008332

CYLINDER, LIFT See Illustration TRACTOR LOADER 9TL (AE35)/ MS2523B

21

7008333

CYLINDER, TILT See Illustration TRACTOR LOADER 9TL (AE35)/ MS2523B

22

6693589

PIN

23

17C532

BOLT 5

24

17C536

BOLT

25

7008334

PIN

26

7008335

ROD, INDICATOR
