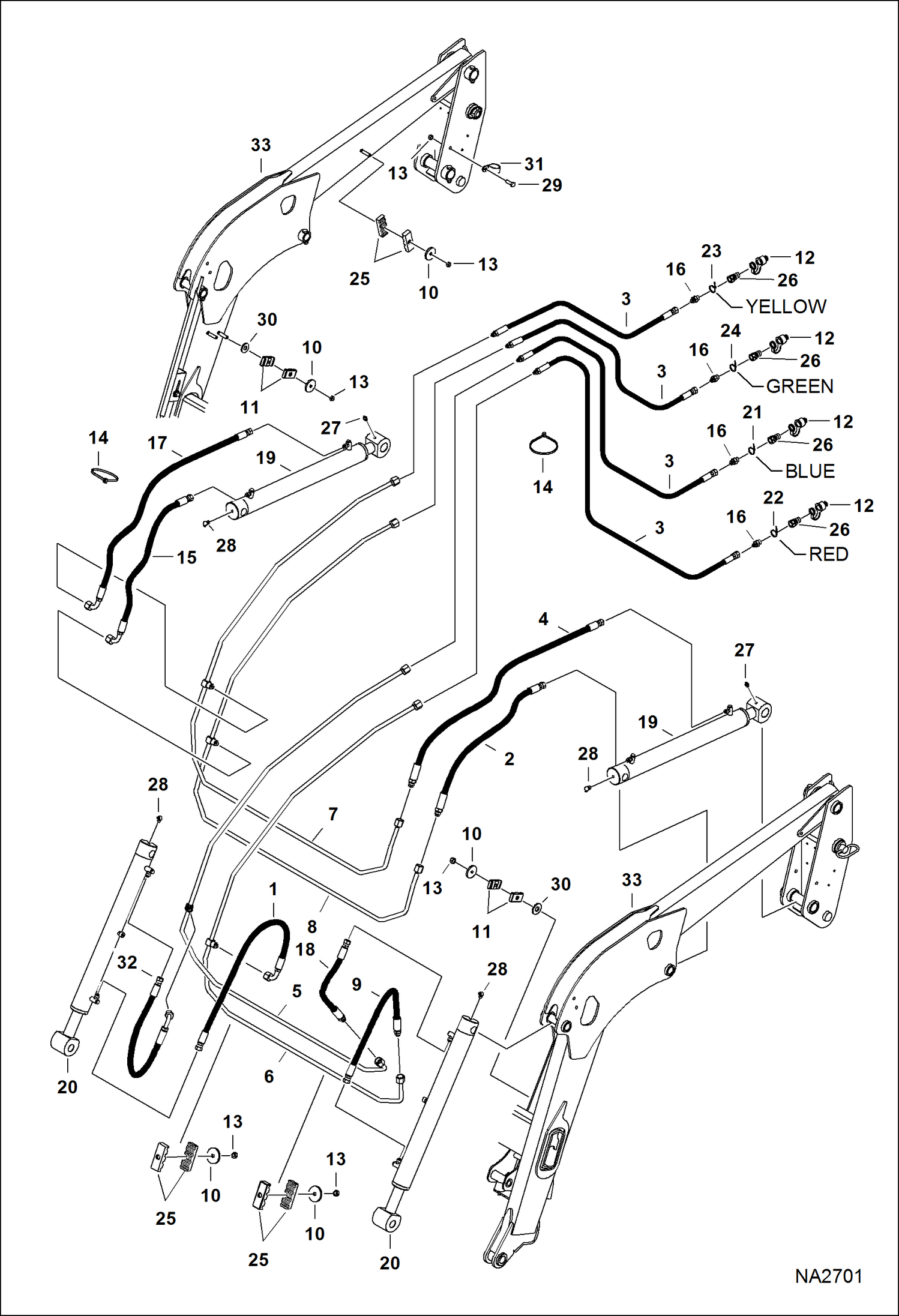

Запчасти Bobcat LOADER TRACTOR LOADER 8TL (AKPM, AL4E) (Hydraulic System) Компактные тракторы

1

7192065

HOSE, HYD 29'' (736,6 mm) long

2

7183006

HOSE, HYD 24'' (609,6 mm) long

3

7183002

HOSE, HYD 62'' (1574,8 mm) long

4

7182997

HOSE, HYD 42'' (1066,8 mm) long

5

7188080

TUBELINE, HYD

6

7188081

TUBELINE, HYD

7

7188082

TUBELINE, HYD

8

7188083

TUBELINE, HYD

9

7182488

HOSE, HYD 21.75'' (552,5 mm) long

10

872229

WASHER

11

6701892

CLAMP

12

7188736

COVER, DUST

13

85D6

NUT, 5

14

6624289

STRAP, TIE

15

7182995

HOSE, HYD 24'' (609,6 mm) long

16

15KB0606

FITTING, HYD CONNECTOR

17

7182994

HOSE, HYD 42'' (1066,8 mm) long

18

7182489

HOSE, HYD 15.5'' (393,7 mm) long

19

7187273

CYLINDER, LIFT See Illustration TRACTOR LOADER 8TL (AKPM, AL4E)/ NA2660

20

7187268

CYLINDER, TILT See Illustration TRACTOR LOADER 8TL (AKPM, AL4E)/ NA2703 - bucket

21

6693541

BAND, SPIRAL BLUE

22

6693542

BAND, SPIRAL RED

23

6693543

BAND, SPIRAL YELLOW

24

6693544

BAND, SPIRAL GREEN

25

7190116

CLAMP, TUBELINE

26

7190242

COUPLER, POPPET MALE

26

7017076

KIT, SEAL

27

10H25

FITTING, GREASE 5

28

12H15

FITTING, GREASE 5

29

17C616

BOLT 5

30

27E8

WASHER 10

31

30H60

CLIP

32

7181709

HOSE, HYD 25.75'' (654,1 mm) long

33

LIFT ARM See Illustration TRACTOR LOADER 8TL (AKPM, AL4E)/ NA2700

33

LIFT ARM See Illustration TRACTOR LOADER 8TL (AKPM, AL4E)/ NA6535
