Запчасти Bobcat LOADER TRACTOR LOADER 8TL (AE3C) (Front Auxiliary Kit) Компактные тракторы

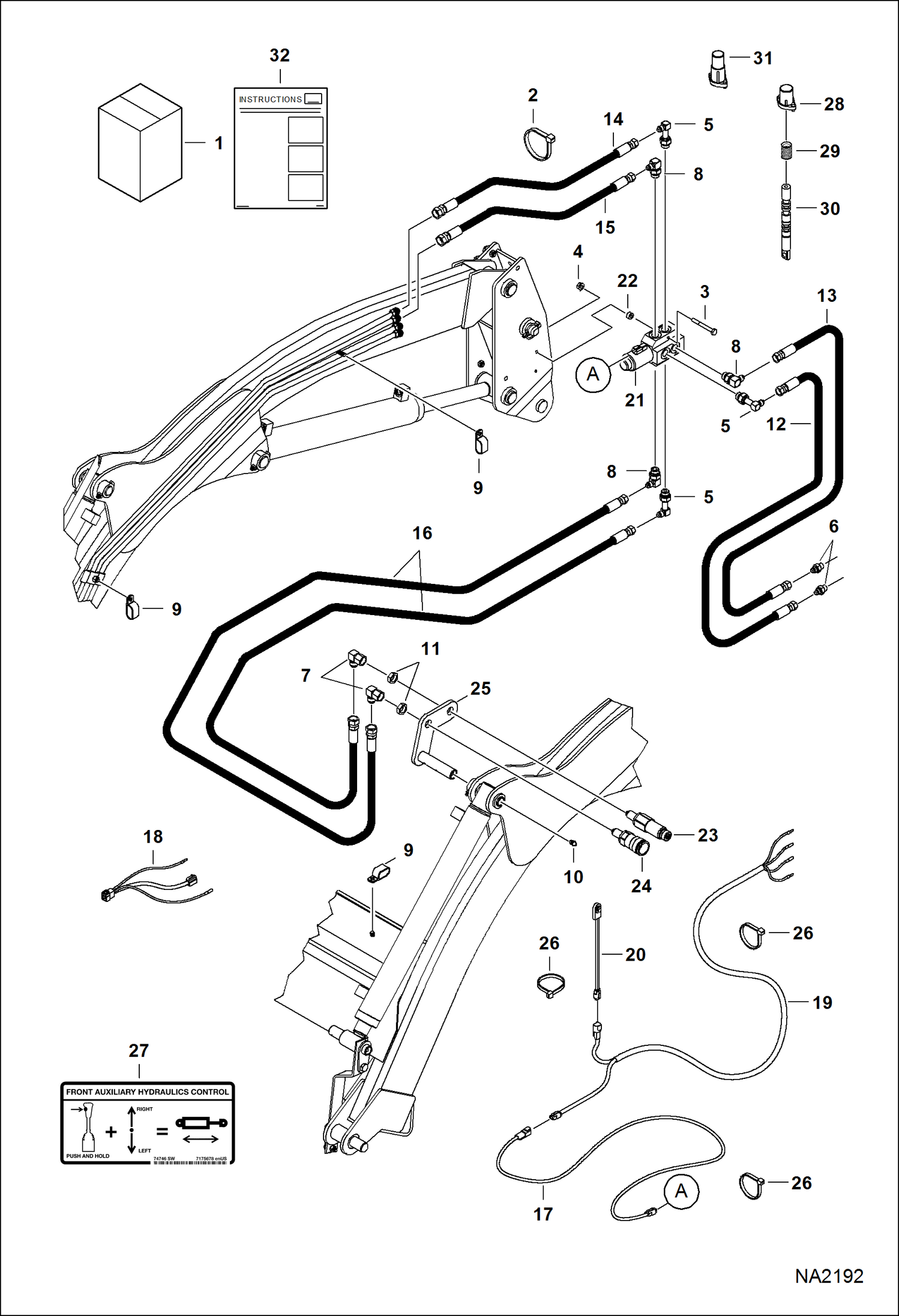

Схема запчастей Bobcat LOADER - TRACTOR LOADER 8TL (AE3C) (Front Auxiliary Kit) Компактные тракторы

Артикул

Название

Примечание

Количество

1

7174344

KIT, AUX FRONT CT Ref. 2-17 & 19-32 - Not approved for use W/CT335 or CT335SST equipped W/7-16 front ag tires

2

6624289

STRAP, TIE

3

17C436

BOLT

4

89D4

NUT

5

6812817

ELBOW

6

15KB0606

FITTING, HYD CONNECTOR

7

11K6

UNION

8

17KB0608

FITTING, HYD ELBOW

9

31H38

CLAMP

10

10H25

FITTING, GREASE 5

11

86F6

NUT

12

7175106

HOSE, HYD 39.5'' (1003,3 mm) long

13

7175105

HOSE, HYD 41.25'' (1047,8 mm) long

14

7175104

HOSE, HYD 26.4'' (670,5 mm) long

15

7175103

HOSE, HYD 24.6'' (624,9 mm) long

16

7175102

HOSE, HYD 130.75'' (3321 mm) long

17

7174786

HARNESS, VALVE

18

7175834

HARNESS, CAB POWER for cab models only - not in kit

19

7174784

HARNESS, SWITCH

20

7174702

SWITCH, MOMENTARY

21

7174466

VALVE, AUX FRONT

21

6683822

KIT solenoid W/nut & seals

21

6683823

COIL

22

6664085

BUSHING nylon

23

6676560

COUPLER, FF MALE 1/2''

24

6676559

COUPLER, FF FEMALE 1/2''

25

7174337

BRACKET

26

6690690

STRAP, TIE

27

7175678

DECAL, INSTRUCTIONS

28

7178633

BONNET, DETENT HYD VALVE W/Ref. 29 - Use on tractor models per listed serial numbers

29

SPRING NSS - Order Ref. 28

30

7178632

SPOOL, VALVE Use on tractor models per listed serial numbers

31

7192353

BONNET, DETENT HYD VALVE Use on tractor models per listed serial numbers

32

6987394

INSTRUCTIONS

Выбрано товаров: 34
