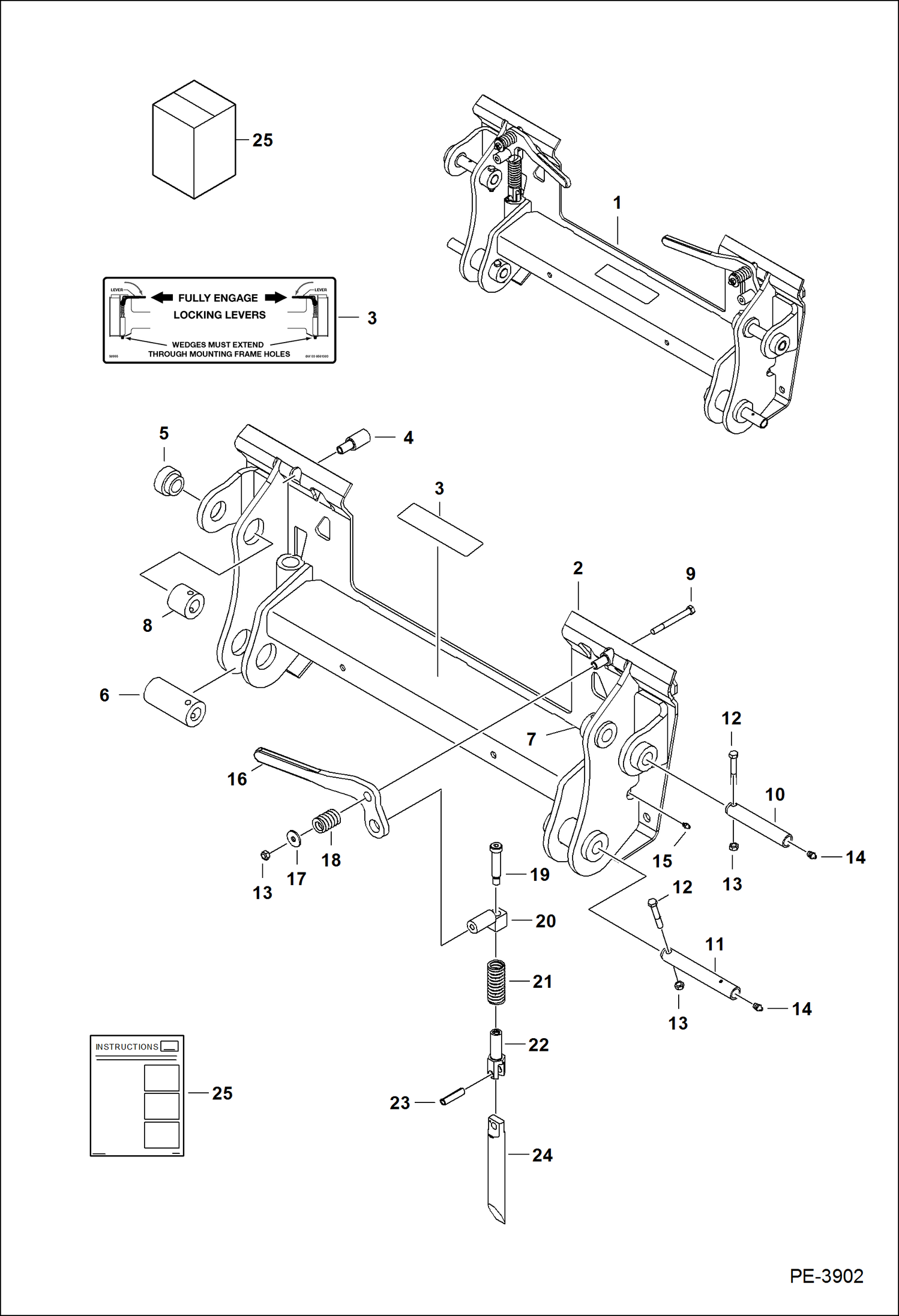

Запчасти Bobcat LOADER TRACTOR LOADER 8TL (AE3C) (Bob-Tach) Компактные тракторы

1

BOBTACH ASSY See Illustration TRACTOR LOADER 8TL (AL4E)/ NA2741 NLA - Ref. 2-25 - Was 7168279 - A

2

FRAME Order Ref. 1

3

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

4

6702958

BUSHING, WELD-ON lever mount

5

7145025

BUSHING

6

7145026

BUSHING

7

7158338

BUSHING RH

8

7145023

BUSHING LH

9

17C660

BOLT

10

7145030

PIN

11

7145029

PIN

12

17C640

BOLT 5

13

85D6

NUT, 5

14

10H25

FITTING, GREASE 5

15

10H35

FITTING, GREASE 10

16

6702904

LEVER, BOB-TACH RH

16

6702903

LEVER, BOB-TACH LH

17

619021

WASHER, 5

18

6713040

SPRING

19

6728473

BOLT, SHOULDER pre-applied thread locker

20

6731119

PIVOT, WEDGE

21

6578253

SPRING, COMPRESSION

22

6704248

PIVOT, WEDGE

23

14J5032

PIN, STRAIGHT

24

6737191

WEDGE

25

6987197

INSTRUCTIONS
