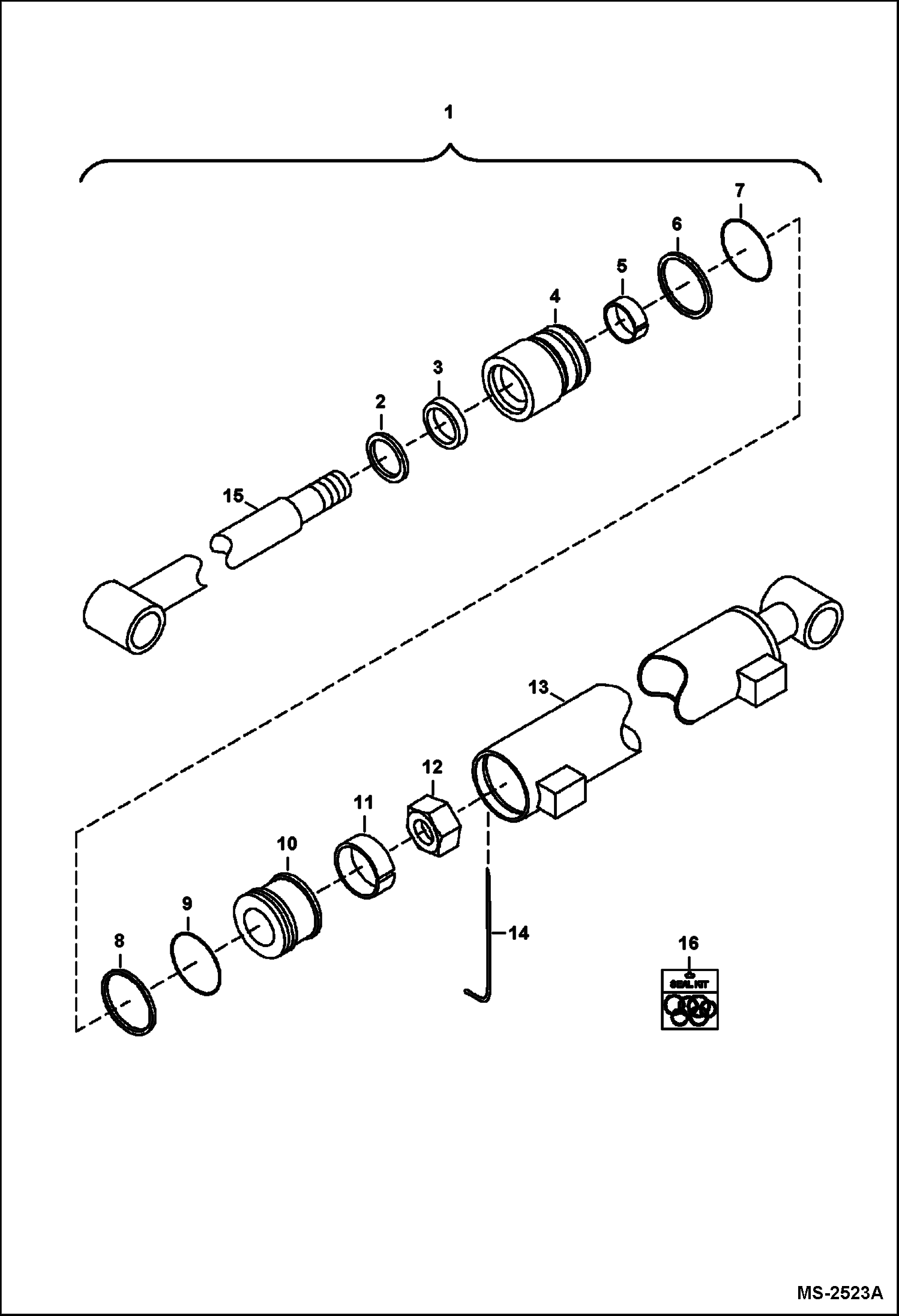

Запчасти Bobcat LOADER TRACTOR LOADER 8TL (AE3C) (Lift & Bucket Cylinder) Компактные тракторы

1

7003650

CYLINDER, LIFT

1

7003651

CYLINDER, TILT

2

SEAL, WIPER NSS - order Ref. 16

3

SEAL, ROD NSS - order Ref. 16

4

7003596

HEAD, CYLINDER for lift cylinder

4

7003596

HEAD, CYLINDER for tilt cylinder - Was 7003673 - A

5

RING, WEAR NSS - order Ref. 16

6

WASHER, BACKUP NSS - order Ref. 16

7

O-RING NSS - order Ref. 16

8

SEAL, PISTON NSS - order Ref. 16

9

O-RING NSS - order Ref. 16

10

7003597

PISTON, CYLINDER for lift cylinder

10

7003674

PISTON, CYLINDER for tilt cylinder

11

RING, WEAR NSS - order Ref. 16

12

7003675

NUT, LOCK

13

7003676

TUBE, CYLINDER for lift cylinder

13

7003677

TUBE, CYLINDER for tilt cylinder

14

WIRE, RETAINING NSS - order Ref. 16

15

7003671

ROD, CYLINDER for lift cylinder

15

7003672

ROD, CYLINDER for tilt cylinder

16

7003599

KIT, SEAL W/Ref. 2, 3, 5-9, 11 & 14 - for lift & tilt cylinders
