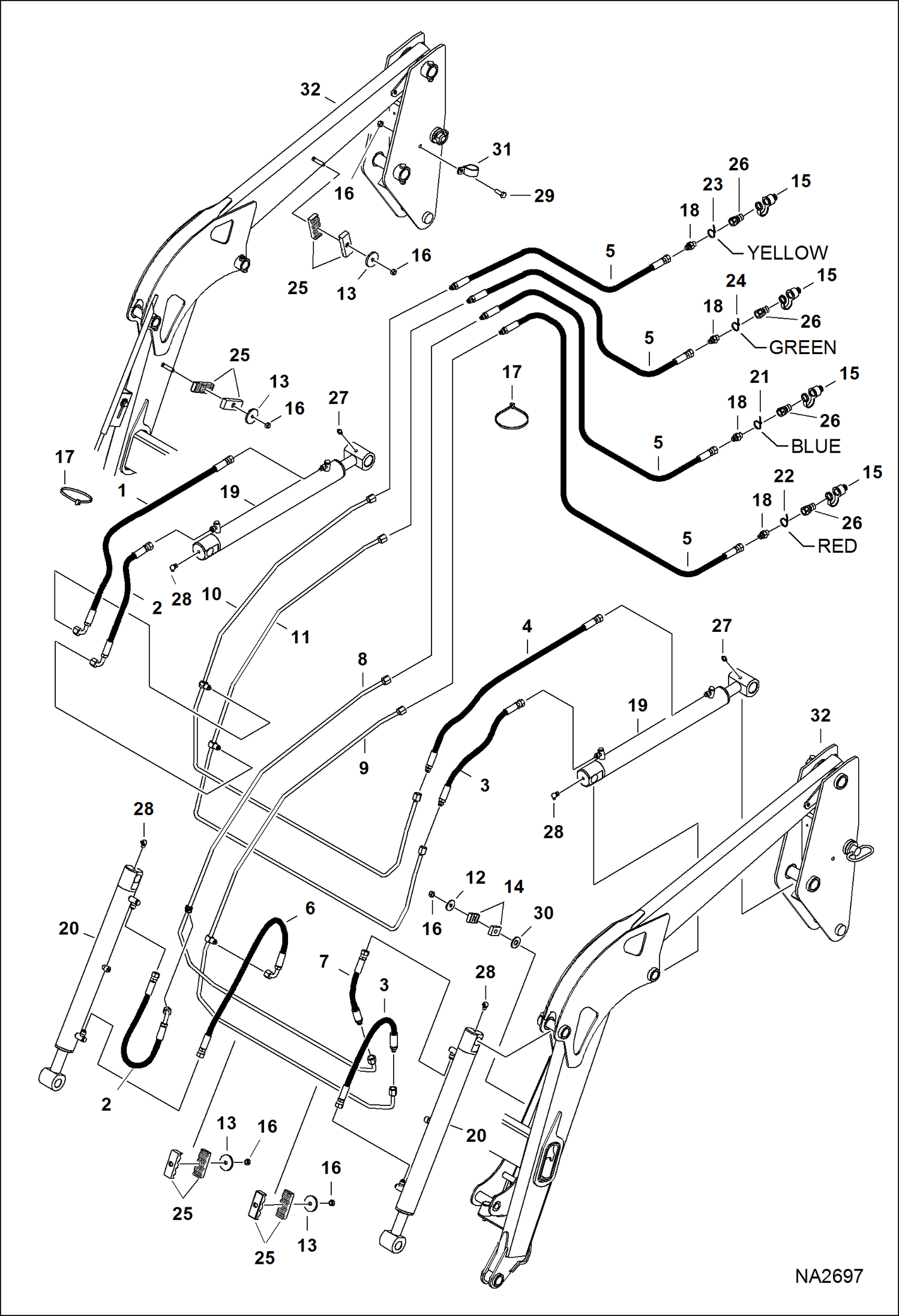

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (AKPD, AL4D) (Hydraulic System) Компактные тракторы

1

7186034

HOSE, HYD 35.95'' (913,1 mm) long

2

7186035

HOSE, HYD 20.75'' (527,1 mm) long

3

7186036

HOSE, HYD 18.5'' (470 mm) long

4

7186037

HOSE, HYD 34.5'' (876 mm) long

5

7186038

HOSE, HYD 55'' (1397 mm) long

6

7186039

HOSE, HYD 26.5'' (673 mm) long

7

7186042

HOSE, HYD 13'' (330,2 mm) long

8

7186030

TUBELINE, HYD

9

7186031

TUBELINE, HYD

10

7186032

TUBELINE, HYD

11

7186033

TUBELINE, HYD

12

619021

WASHER, 5

13

872229

WASHER

14

6726277

CLAMP

15

7188736

COVER, DUST

16

85D6

NUT, 5

17

6624289

STRAP, TIE

18

15KB0606

FITTING, HYD CONNECTOR

19

7187107

CYLINDER, LIFT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2698

20

7186885

CYLINDER, TILT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2699 - bucket

21

6693541

BAND, SPIRAL BLUE

22

6693542

BAND, SPIRAL RED

23

6693543

BAND, SPIRAL YELLOW

24

6693544

BAND, SPIRAL GREEN

25

7190115

CLAMP, TUBELINE

26

7190242

COUPLER, POPPET MALE

26

7017076

KIT, SEAL

27

10H25

FITTING, GREASE 5

28

12H15

FITTING, GREASE 5

29

17C616

BOLT 5

30

27E8

WASHER 10

31

30H75

CLAMP

32

LIFT ARM See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2696

32

LIFT ARM See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA6532
