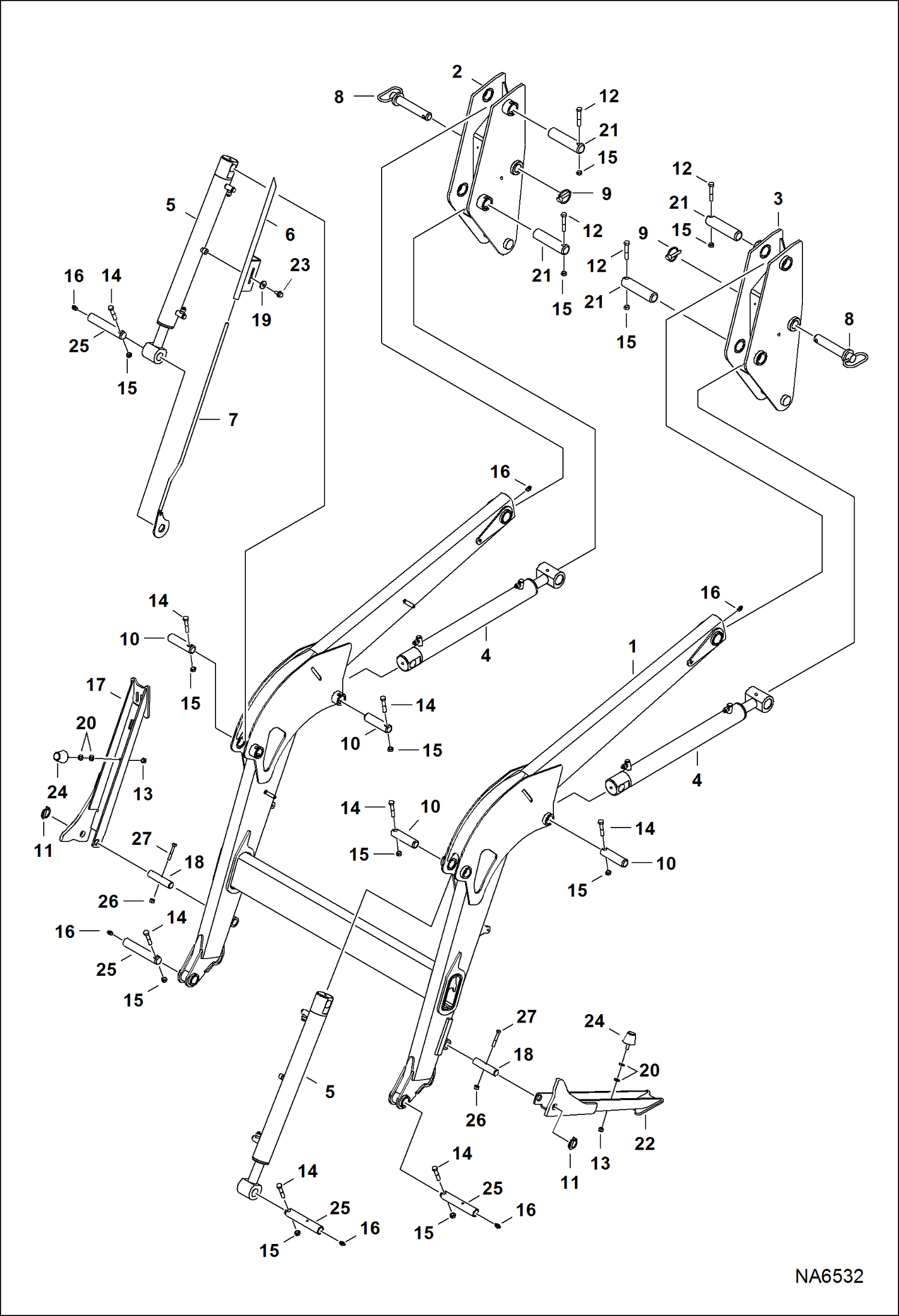

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (AKPD, AL4D) (Main Frame) (Outer Mounted Stand) (AKPD00269 & Above) (AL4D01680 & Above) Компактные тракторы

1

7182135

LIFT ARM

2

7182153

MOUNT, LIFT ARM RH

3

7182172

MOUNT, LIFT ARM LH

4

7187107

CYLINDER, LIFT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2698

5

7186885

CYLINDER, TILT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2699 - bucket

6

7186910

TUBE, INDICATOR

7

7186926

ROD, INDICATOR

8

7181396

PIN, HITCH

9

7116284

PIN, LOCK

10

7181394

PIN, PIVOT

11

6649706

PIN

12

17C636

BOLT

13

59D5

NUT 5

14

17C632

BOLT 5

15

85D6

NUT, 5

16

10H25

FITTING, GREASE 5

17

7196086

STAND, LIFT ARM RH

18

7196093

PIN

19

17EM80

WASHER

20

29E5

WASHER

21

7185982

PIN, PIVOT

22

7196821

STAND, LIFT ARM LH

23

59CM816

BOLT

24

6733616

BUMPER

25

7187462

PIN, CYLINDER

26

89D4

NUT

27

17C428

BOLT
