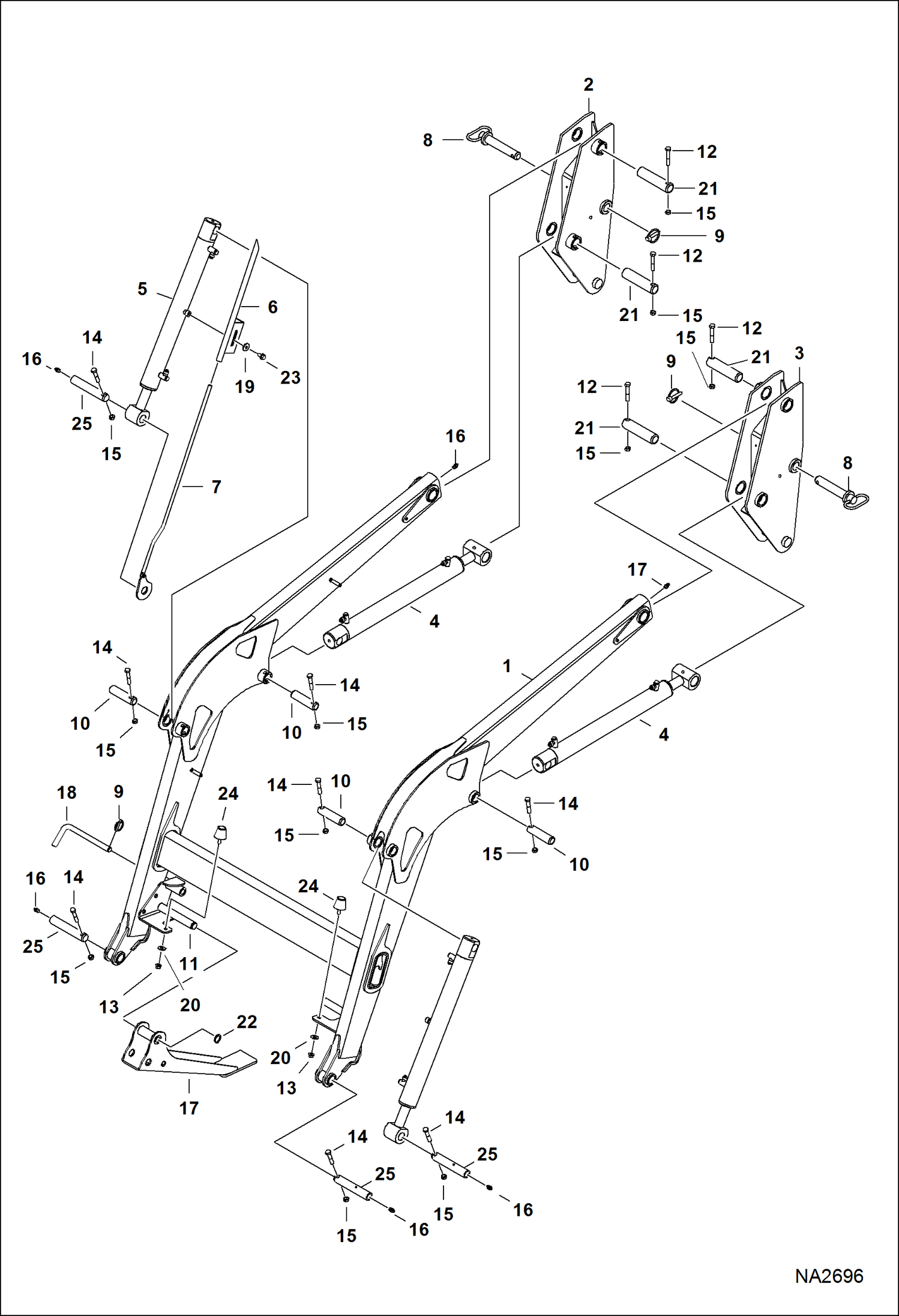

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (AKPD, AL4D) (Main Frame) (Inner Mounted Stand) (AKPD00101 - 00268) (AL4D00101 - 01679) Компактные тракторы

1

LIFT ARM See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA6532 - NLA - Order 7182209 lift arm, 7196086 stand, 7196821 stand, (2) each of 7196093 pin, 6649706 pin, 89D4 nut, 17C428 bolt, 6733616 bum

2

7182153

MOUNT, LIFT ARM RH

3

7182172

MOUNT, LIFT ARM LH

4

7187107

CYLINDER, LIFT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2698

5

7186885

CYLINDER, TILT See Illustration TRACTOR LOADER 7TL (AKPD, AL4D)/ NA2699 - bucket

6

7186910

TUBE, INDICATOR

7

7186926

ROD, INDICATOR

8

7181396

PIN, HITCH

9

7116284

PIN, LOCK

10

7181394

PIN, PIVOT

11

6649706

PIN

12

17C636

BOLT

13

61D5

NUT

14

17C632

BOLT 5

15

85D6

NUT, 5

16

10H25

FITTING, GREASE 5

17

7186004

STAND, LIFT ARM

18

7187684

PIN, STAND LINCH

19

17EM80

WASHER

20

29E5

WASHER

21

7185982

PIN, PIVOT

22

6534668

SNAP RING

23

59CM816

BOLT

24

6733616

BUMPER

25

7187462

PIN, CYLINDER
