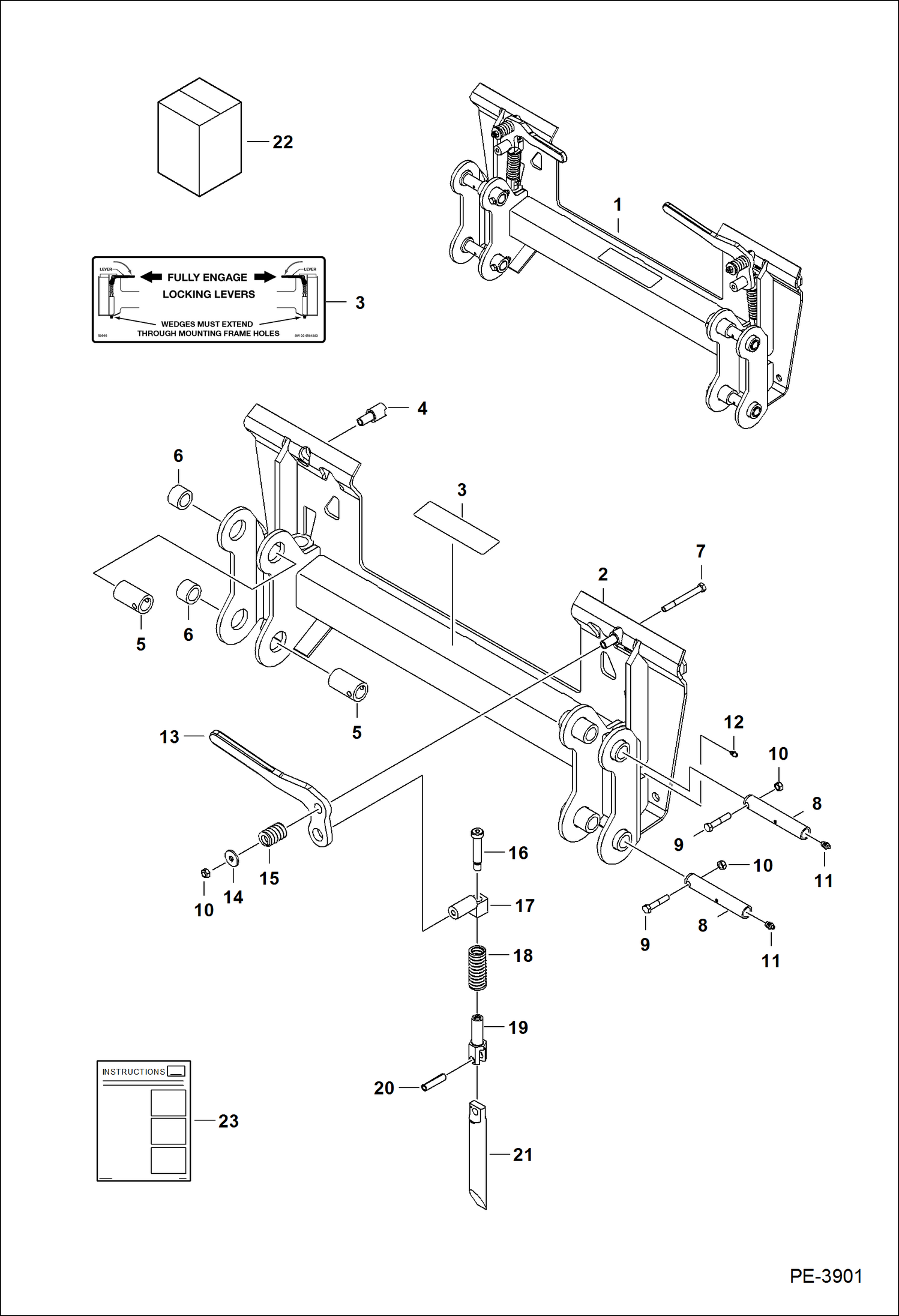

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (A911) (Bob-Tach) Компактные тракторы

1

BOBTACH ASSY See Illustration TRACTOR LOADER 7TL (AL4D)/ NA2731A - NLA - Ref. 2-22 - Order 7187463 Bob-Tach kit - Was 7162971 - A

2

FRAME NSS - Order Ref. 1

3

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

4

6702958

BUSHING, WELD-ON lever mount

5

7162984

BUSHING inner

6

7162985

BUSHING outer

7

17C660

BOLT

8

7145030

PIN

9

17C632

BOLT 5

10

85D6

NUT, 5

11

10H25

FITTING, GREASE 5

12

10H35

FITTING, GREASE 10

13

6702904

LEVER, BOB-TACH RH

13

6702903

LEVER, BOB-TACH LH

14

619021

WASHER, 5

15

6713040

SPRING

16

6728473

BOLT, SHOULDER pre-applied thread locker

17

6731119

PIVOT, WEDGE

18

6578253

SPRING, COMPRESSION

19

6704248

PIVOT, WEDGE

20

14J5032

PIN, STRAIGHT

21

6737191

WEDGE

22

6987197

INSTRUCTIONS
