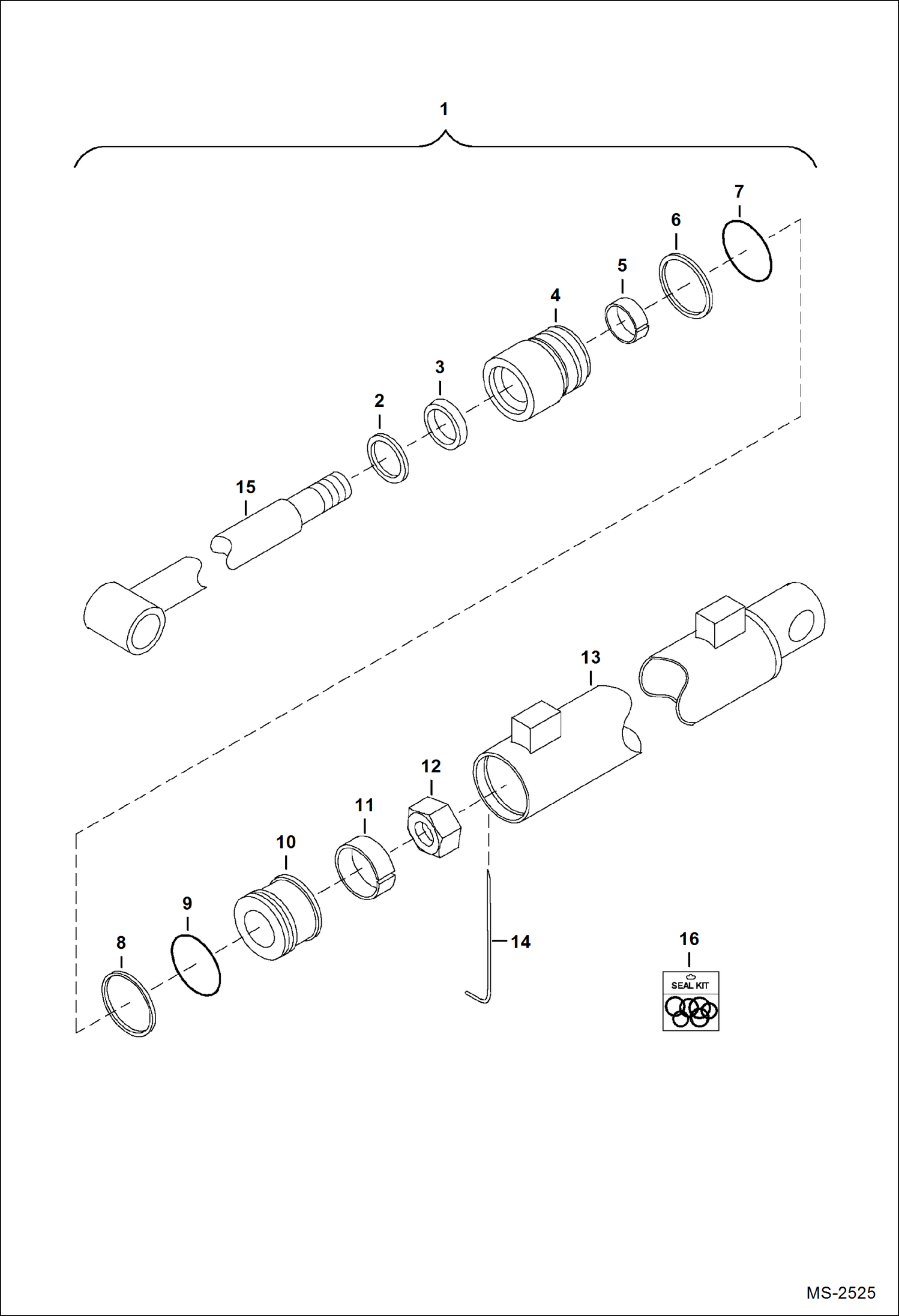

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (A911) (Lift & Bucket Cylinder) Компактные тракторы

1

6693557

CYLINDER lift - W/ Ref. 2-15

1

6693577

CYLINDER bucket - W/Ref. 2-15

2

SEAL NSS - wiper - Order Ref. 16

3

SEAL NSS - rod - Order Ref. 16

4

6693575

HEAD lift & bucket cylinder

5

RING NSS - wear - Order Ref. 16

6

WASHER NSS - backup - Order Ref. 16

7

O-RING NSS - Order Ref. 16

8

SEAL NSS - piston - Order Ref. 16

9

O-RING NSS - Order Ref. 16

10

6693576

PISTON lift & bucket cylinder

11

RING NSS - wear - Order Ref. 16

12

6693574

NUT lift & bucket cylinder

13

6693573

TUBE lift cylinder

13

6693579

TUBE bucket cylinder

14

WIRE NSS - retainer

15

6693571

ROD lift cylinder

15

6693578

ROD bucket cylinder

16

6693558

SEAL KIT seal - for lift & bucket cylinder - W/Ref. 2, 3, 5-9, 11 & 14
