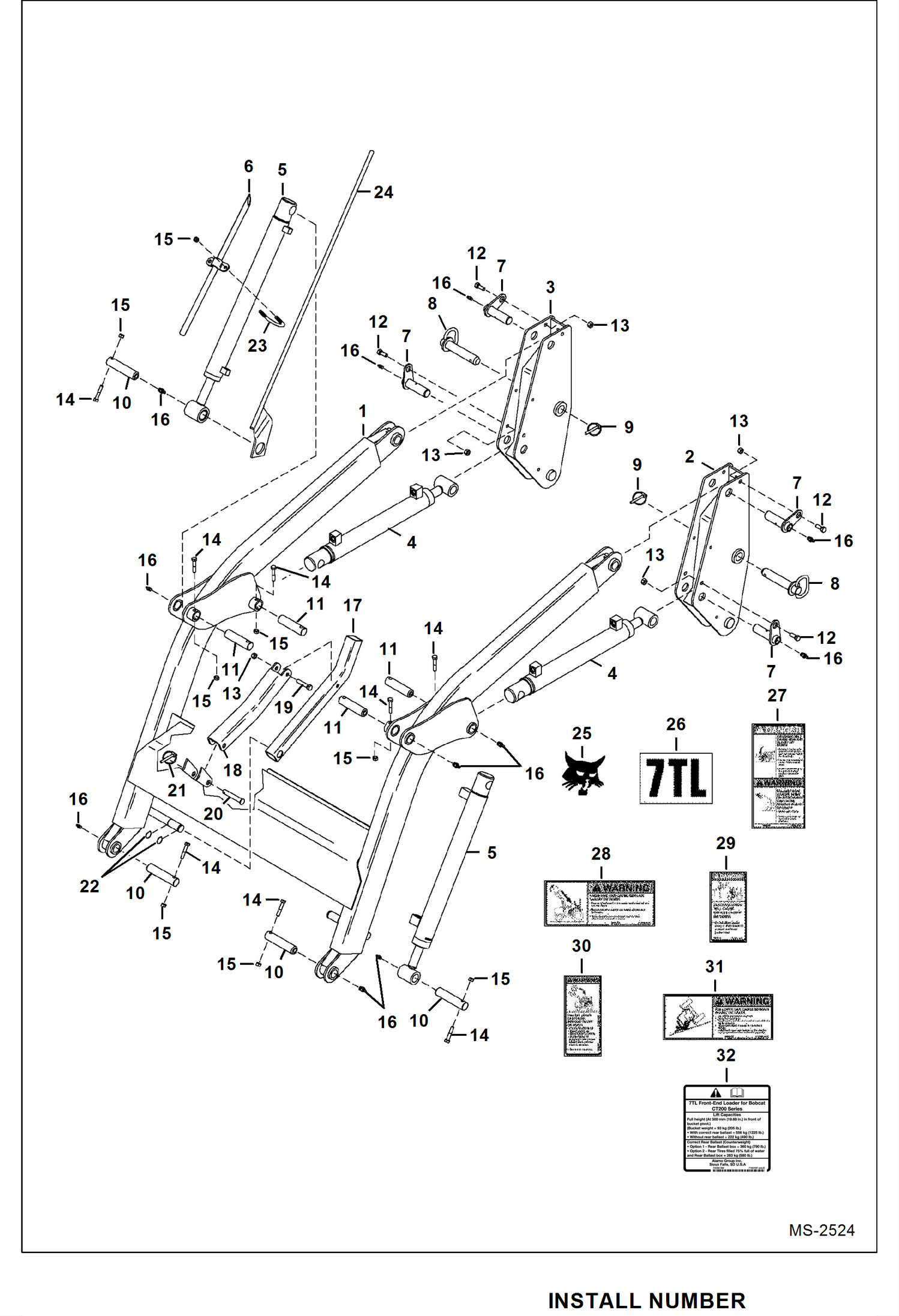

Запчасти Bobcat LOADER TRACTOR LOADER 7TL (A911) (Main Frame) Компактные тракторы

1

6693906

BOOM ASSY

2

6693907

FRAME

3

6693908

FRAME

4

6693557

CYLINDER See Illustration TRACTOR LOADER 7TL (A911)/ MS2525 lift

5

6693577

CYLINDER See Illustration TRACTOR LOADER 7TL (A911)/ MS2525 bucket

6

6693596

TUBE

7

6693584

PIN

8

6693587

PIN

9

6693589

PIN

10

6693586

PIN

11

6693585

PIN

12

6693580

BOLT

13

85D6

NUT, 5

14

17C528

BOLT

15

85D5

NUT 5

16

10H25

FITTING, GREASE 5

17

6693550

STAND

18

6693549

STRUT

19

17C640

BOLT 5

20

6693551

PIN

21

6693552

PIN

22

6693629

SNAP RING

23

6693594

U-BOLT

24

6693595

ROD, INDICATOR

25

7151703

DECAL logo

26

7145397

DECAL, MODEL 7TL

27

DECAL NLA - 6'' (152,4 mm) x 3'' (76,2 mm) - Was 7147821 - B,D

27

7147821

DECAL, DANGER 5'' (127 mm) x 3.25'' (82,5 mm)

28

7147822

DECAL, WARNING warning

29

7147823

DECAL, WARNING danger

30

7147824

DECAL, WARNING warning

31

7147825

DECAL, WARNING warning

32

7163197

DECAL, CAPACITY lift capacity

33

7013602

PIN
