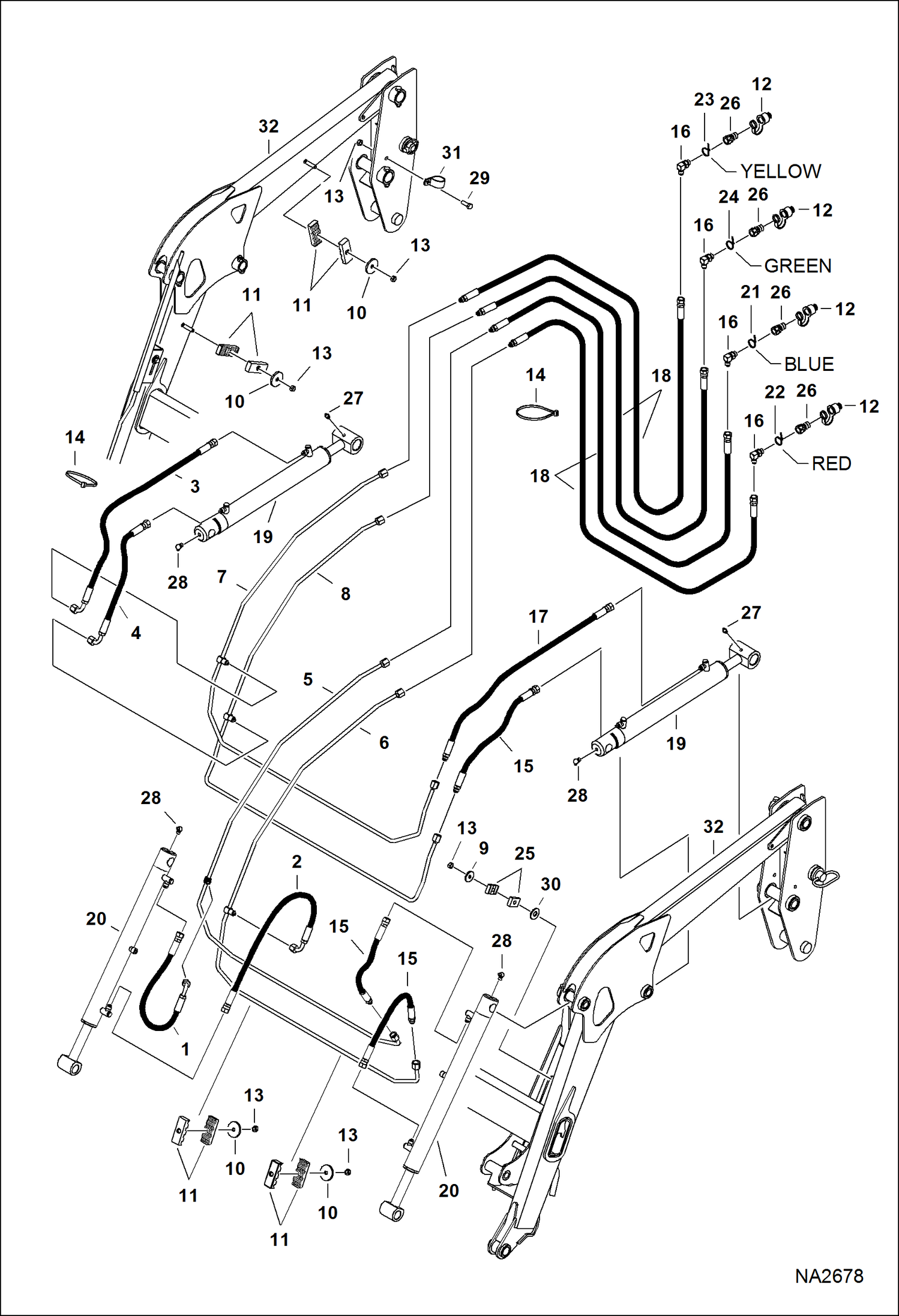

Запчасти Bobcat LOADER TRACTOR LOADER 6TL (AKP6, AL4C) (Hydraulic System) Компактные тракторы

1

7186035

HOSE, HYD 20.75'' (527,1 mm) long

2

7186039

HOSE, HYD 26.5'' (673 mm) long

3

7188248

HOSE, HYD 29.5'' (749 mm) long

4

7188249

HOSE, HYD 15.75'' (400,1 mm) long

5

7188244

TUBELINE, HYD

6

7188245

TUBELINE, HYD

7

7188246

TUBELINE, HYD

8

7188247

TUBELINE, HYD

9

619021

WASHER, 5

10

872229

WASHER

11

7190115

CLAMP, TUBELINE

12

7188736

COVER, DUST

13

85D6

NUT, 5

14

6624289

STRAP, TIE

15

7188250

HOSE, HYD 15.75'' (400,1 mm) long

16

17KB0606

FITTING

17

7188251

HOSE, HYD 28.75'' (730,3 mm) long

18

7188252

HOSE, HYD 49'' (1245 mm) long

19

7187396

CYLINDER, LIFT See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA2679

20

7187681

CYLINDER, TILT See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA2694 - bucket

21

6693541

BAND, SPIRAL BLUE

22

6693542

BAND, SPIRAL RED

23

6693543

BAND, SPIRAL YELLOW

24

6693544

BAND, SPIRAL GREEN

25

6726277

CLAMP

26

7190242

COUPLER, POPPET MALE

26

7017076

KIT, SEAL

27

10H25

FITTING, GREASE 5

28

12H15

FITTING, GREASE 5

29

17C616

BOLT 5

30

27E8

WASHER 10

31

30H75

CLAMP

32

LIFT ARM See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA2657

32

LIFT ARM See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA6529
