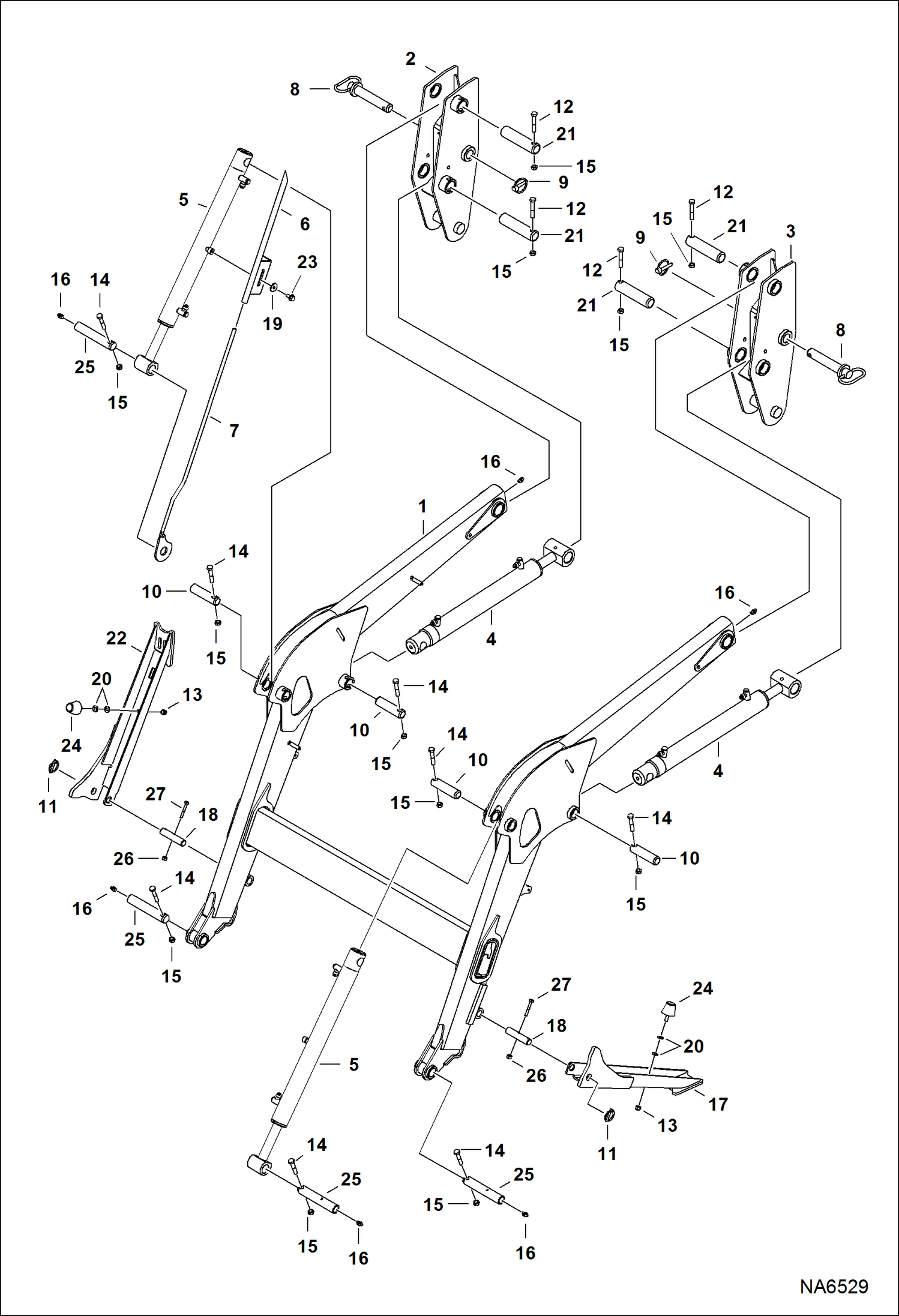

Запчасти Bobcat LOADER TRACTOR LOADER 6TL (AKP6, AL4C) (Main Frame) (Outer Mounted Stand) (AKP600407 & Above) (AL4C00372 & Above) Компактные тракторы

1

7182209

LIFT ARM

2

7182221

MOUNT, LIFT ARM RH

3

7182230

MOUNT, LIFT ARM LH

4

7187396

CYLINDER, LIFT See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA2679

5

7187681

CYLINDER, TILT See Illustration TRACTOR LOADER 6TL (AKP6, AL4C)/ NA2694 - bucket

6

7188785

TUBE, INDICATOR

7

7188788

ROD, INDICATOR

8

7181396

PIN, HITCH

9

7116284

PIN, LOCK

10

7181394

PIN, PIVOT

11

6649706

PIN

12

17C636

BOLT

13

59D5

NUT 5

14

17C632

BOLT 5

15

85D6

NUT, 5

16

10H25

FITTING, GREASE 5

17

7196086

STAND, LIFT ARM RH

18

7196093

PIN

19

17EM80

WASHER

20

29E5

WASHER

21

7185982

PIN, PIVOT

22

7196821

STAND, LIFT ARM LH

23

59CM816

BOLT

24

6733616

BUMPER

25

7187462

PIN, CYLINDER

26

89D4

NUT

27

17C428

BOLT
