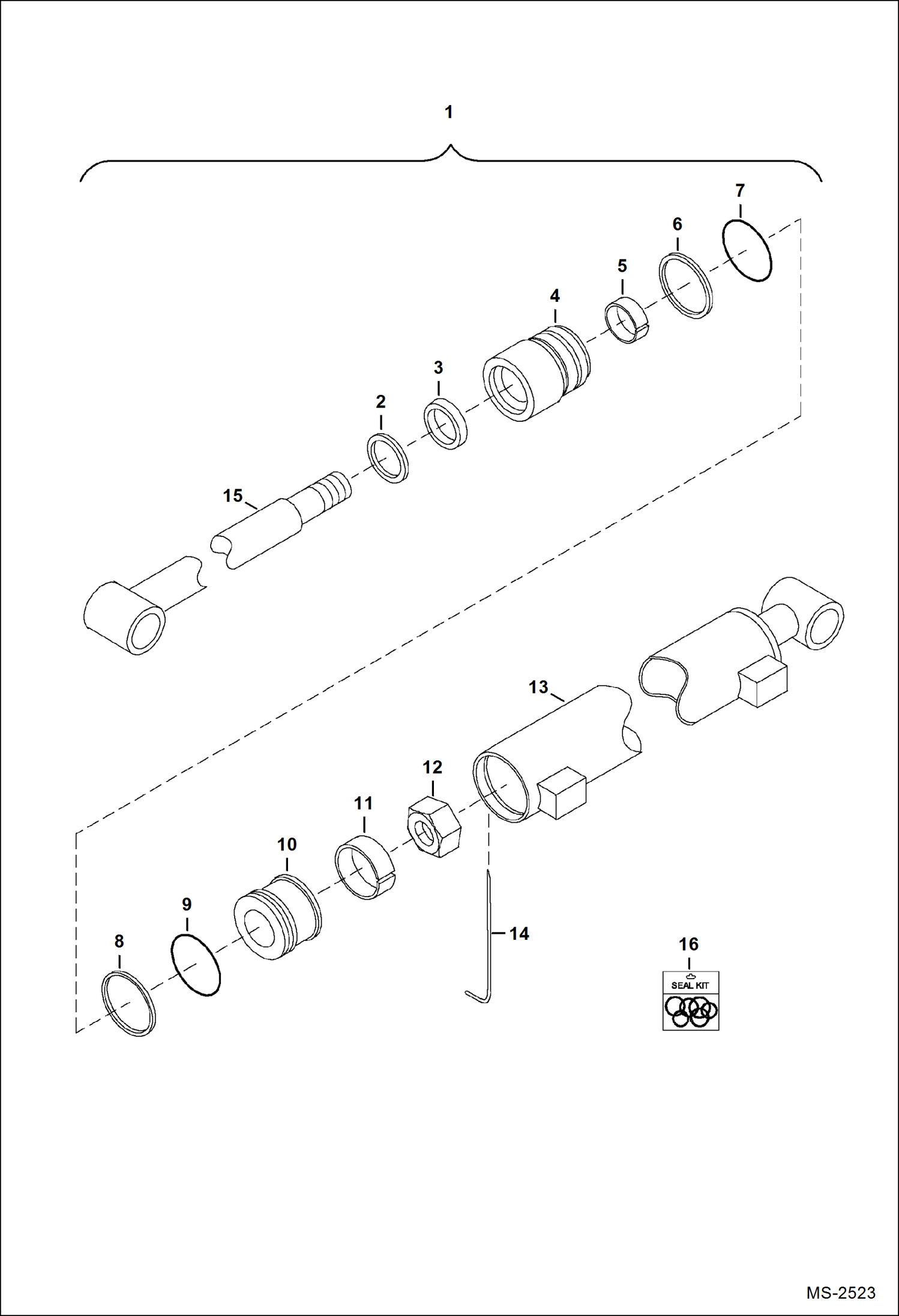

Запчасти Bobcat LOADER TRACTOR LOADER 6TL (A90Y) (Lift & Bucket Cylinder) Компактные тракторы

1

6693602

CYLINDER lift - W/ Ref. 2-15

1

6693616

CYLINDER bucket - W/Ref. 2-15

2

SEAL NSS - wiper - Order Ref. 16

3

SEAL NSS - rod - Order Ref. 16

4

6693615

HEAD lift cylinder

4

6693628

HEAD bucket cylinder

5

RING NSS - wear - Order Ref. 16

6

WASHER NSS - backup - Order Ref. 16

7

O-RING NSS - Order Ref. 16

8

SEAL NSS - piston - Order Ref. 16

9

O-RING NSS - Order Ref. 16

10

6693576

PISTON lift cylinder

10

6693624

PISTON bucket cylinder

11

RING NSS - wear - Order Ref. 16

12

6693574

NUT lift cylinder

12

6697950

NUT bucket cylinder

13

6693614

TUBE tube cylinder

13

6693627

TUBE bucket cylinder

14

WIRE NSS - retainer

15

6693612

ROD lift cylinder

15

6693625

ROD bucket cylinder

16

6693604

SEAL KIT seal - for lift cylinder - W/Ref. 2, 3, 5-9, 11 & 14

16

6693617

SEAL KIT seal - for bucket cylinder - W/Ref. 2, 3, 5-9, 11 & 14
