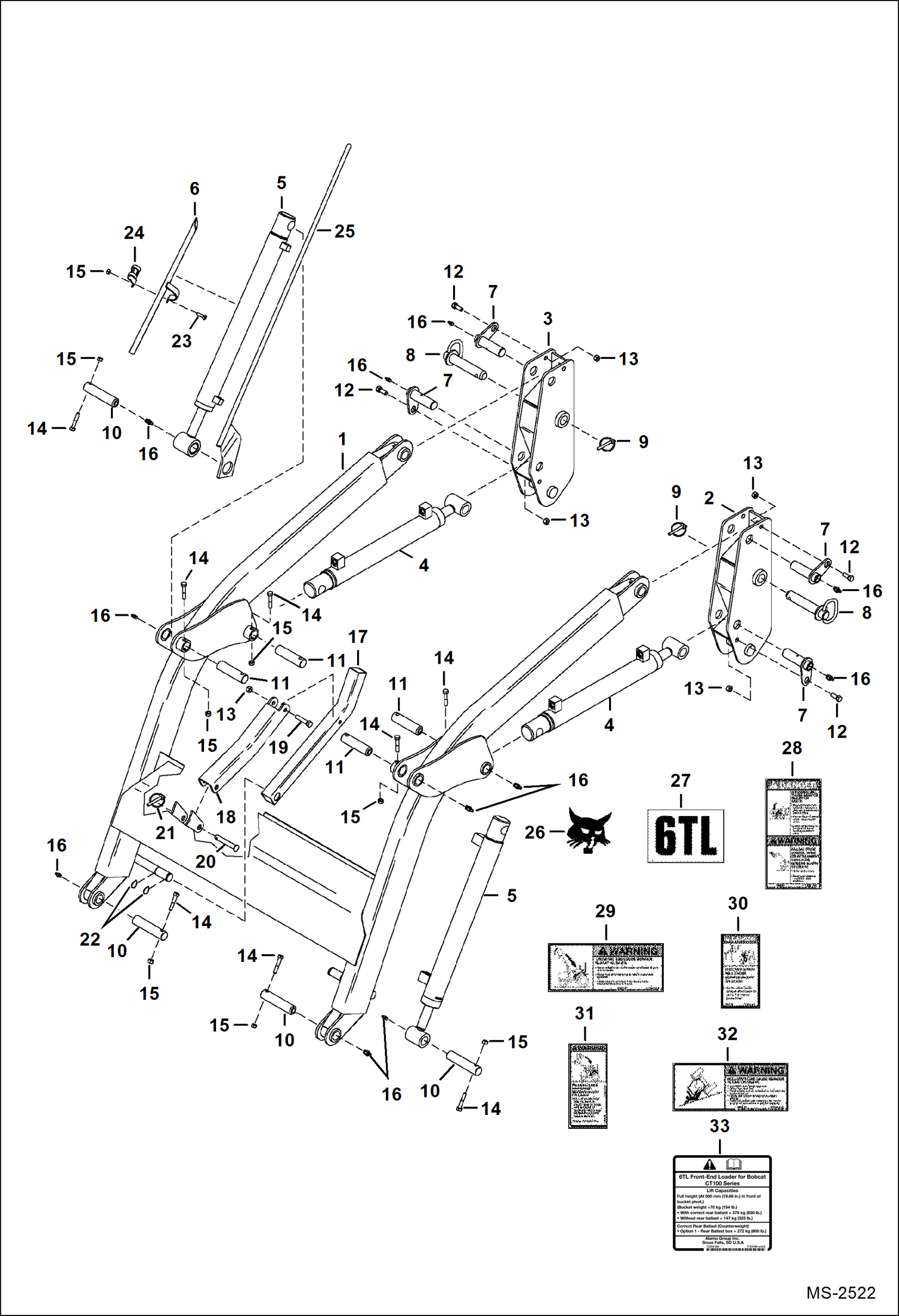

Запчасти Bobcat LOADER TRACTOR LOADER 6TL (A90Y) (Main Frame) Компактные тракторы

1

6693638

BOOM ASSY

2

6693639

FRAME

3

6693640

FRAME

4

6693602

CYLINDER See Illustration TRACTOR LOADER 6TL (A90Y)/ MS2523 lift

5

6693616

CYLINDER See Illustration TRACTOR LOADER 6TL (A90Y)/ MS2523 bucket

6

6693599

TUBE

7

6693584

PIN

8

6693587

PIN

9

6693589

PIN

10

6693586

PIN

11

6693585

PIN

12

6693580

BOLT

13

85D6

NUT, 5

14

17C528

BOLT

15

85D5

NUT 5

16

10H25

FITTING, GREASE 5

17

6693550

STAND

18

6693549

STRUT

19

17C640

BOLT 5

20

6693551

PIN

21

6693552

PIN

22

6693629

SNAP RING

23

17C516

BOLT

24

6693632

BAND

25

6693600

ROD, INDICATOR

26

7151703

DECAL logo

27

7145388

DECAL, MODEL 6TL

28

DECAL NLA - 6'' (152,4 mm) x 3'' (76,2 mm) - Was 7147821 - B,D

28

7147821

DECAL, DANGER 5'' (127 mm) x 3.25'' (82,5 mm)

29

7147822

DECAL, WARNING warning

30

7147823

DECAL, WARNING danger

31

7147824

DECAL, WARNING warning

32

7147825

DECAL, WARNING warning

33

7163196

DECAL, CAPACITY lift capacity

34

7013602

PIN
