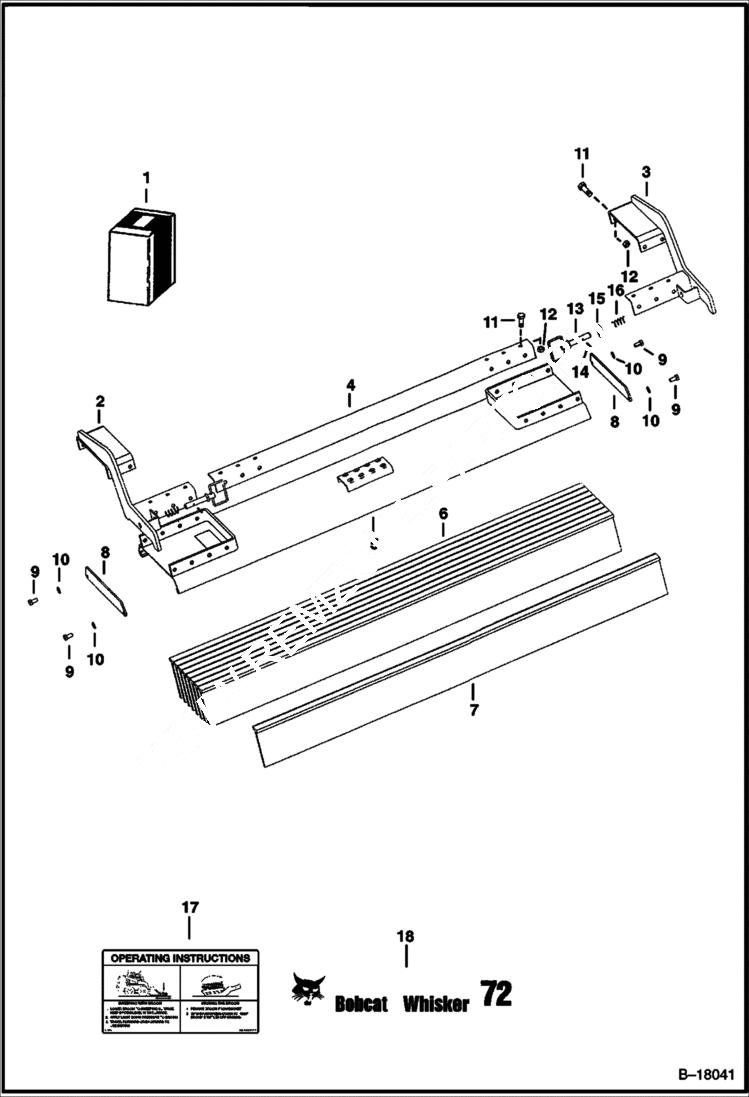

Запчасти Bobcat LOADER - ATTACHMENTS WHISKER PUSH BROOM (72 8236) Компактные тракторы

1

WHISKER BROOM SALES #6728236 - 72'' - Ref. 2-5 & 7-18

2

6677168

BRACKET

3

6677169

BRACKET

4

6677166

SPREADER BAR 72''

5

6677165

HOOD 72''

6

6677189

BRISTLE SET 72'' - replacement set of 8 bristles

7

6677164

BRISTLE STRIP 72'' - one bristle only

8

6677163

END PLATE

9

25G816

BOLT

10

4E8

WASHER

11

17C824

BOLT 5

12

59D8

NUT 5

13

6677167

LATCH PIN

14

14J1824

ROLL PIN

15

25E27

WASHER

16

6677170

SPRING

17

6728239

DECAL See Illustration WHISKER PUSH BROOM/ NA6226

17

7130153

DECAL See Illustration WHISKER PUSH BROOM/ NA6226 - no-text

18

6727959

DECAL
