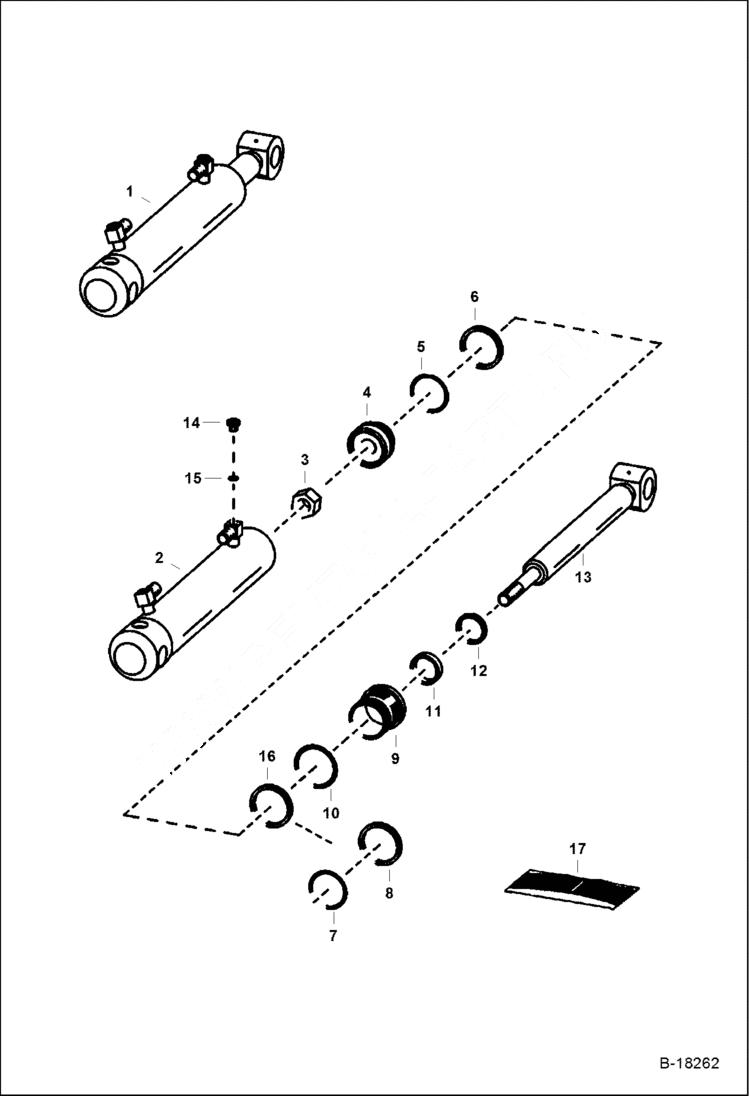

Запчасти Bobcat LOADER - ATTACHMENTS UTILITY GRAPPLE (Cylinder) (W/ 1.25 Rod - Use W/ 1.00 dia x 8.00 long Mounting Pins) Компактные тракторы

1

6586700

CYLINDER, TILT Ref. 2-15

2

6586949

CASE

3

92D12

NUT

4

6586704

PISTON

5

54K30118

O-RING Was 25K030118B - A

6

6516231

SEAL

7

54K40124

O-RING Was 25K040124B - A

8

73K224

RING

9

6539323

HEAD

10

82K136

O-RING Was 58K136 - B

11

6667324

SEAL Was 58K000136B - D

12

6665208

SEAL wiper - Was 1657085B - A

13

6586950

ROD 1.25'' (31,8 mm) OD

14

PLUG NLA - flat boss face - Was 47K-2 - A

14

90KV2

PLUG tapered boss face

15

79K3

O RING 10 for flat boss face

15

95K3

O'RING for tapered boss face

16

7008781

SEAL, QUAD

17

7137769

KIT, SEAL Ref. 3, 5, 6, 10-12, & 16 - Was 6803329 - A
