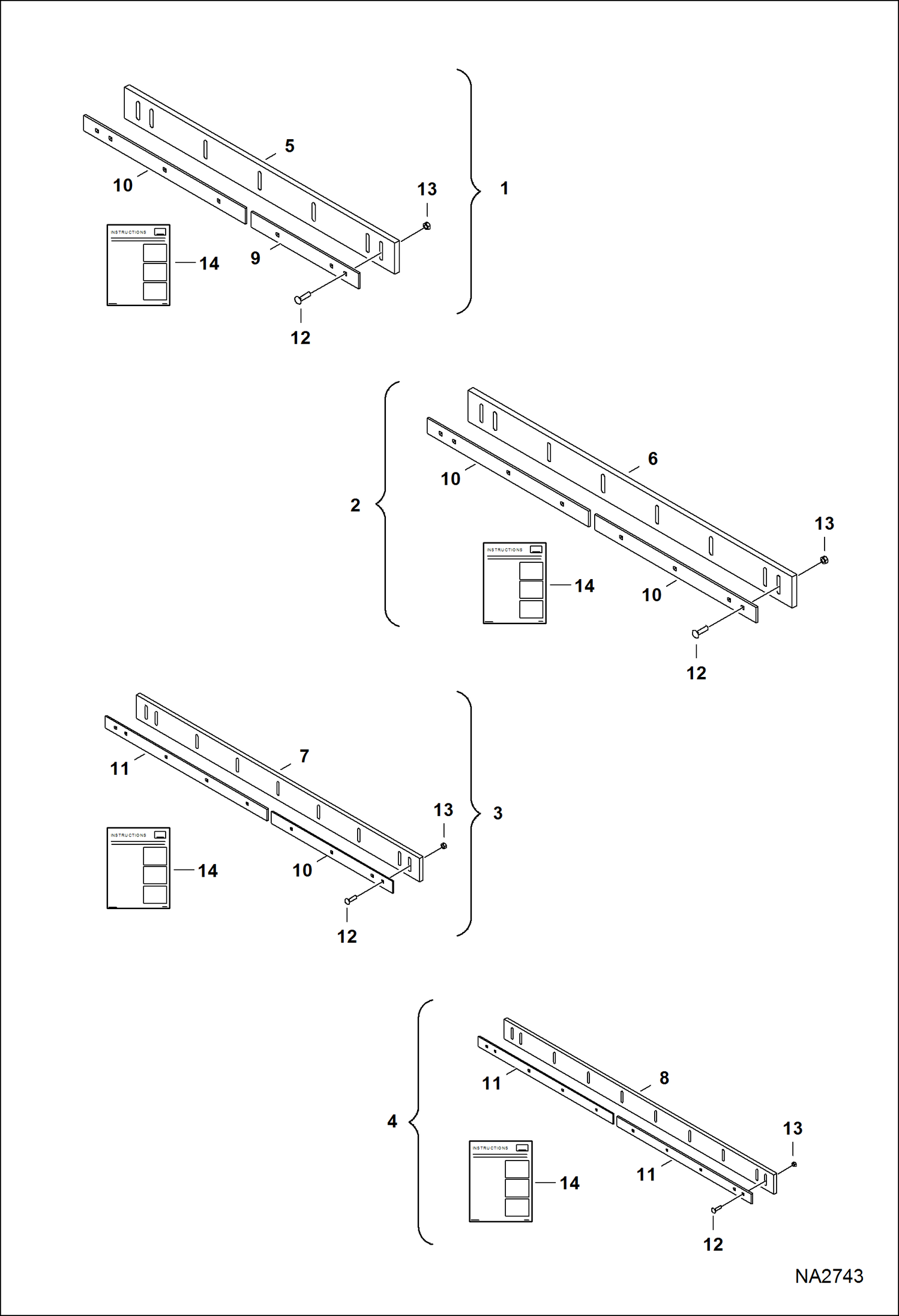

Запчасти Bobcat LOADER - ATTACHMENTS SNOW BLADE (Cutting Edge Kits - Rubber & Polyether) Компактные тракторы

1

7167531

KIT, EDGE CUTTING 60'' rubber - Ref. 5, 9, 10 & 12-14

1

7170982

KIT, EDGE CUTTING 60'' polyether - Ref. 5, 9, 10 & 12-14

2

7167532

KIT, EDGE CUTTING 72'' rubber - Ref. 6, 10 & 12-14

2

7170983

KIT, EDGE CUTTING 72'' polyether - Ref. 6, 10 & 12-14

3

6905400

KIT, EDGE CUTTING 84'' rubber - Ref. 7 & 10-14

3

7170984

KIT, EDGE CUTTING 84'' polyether - Ref. 7 & 10-14

4

6905401

KIT, EDGE CUTTING 96'' rubber - Ref. 8 & 11-14

4

7169617

KIT, EDGE CUTTING 96'' polyether - Ref. 8 & 11-14

5

6906116

EDGE, CUTTING RUBBER 60''

5

6983083

CUTTING EDGE, POLYETHER 60''

6

6905143

EDGE, CUTTING RUBBER 72''

6

6983084

CUTTING EDGE, POLYETHER 72''

7

6905144

EDGE, CUTTING RUBBER 84''

7

6983085

CUTTING EDGE, POLYETHER 84''

8

6905145

EDGE, CUTTING RUBBER 96''

8

6983086

CUTTING EDGE, POLYETHER 96''

9

6905976

RETAINER 24'' long

10

6905977

RETAINER 36'' long

11

6905978

RETAINER 48'' long

12

37C1040

BOLT 2.50'' long - Use W/rubber edges - (7) for 60'', (8) for 72'', (9) for 84'' & (10) for 96''

12

37C1048

BOLT 3.00'' long - Use W/polyether edges - (7) for 60'', (8) for 72'', (9) for 84'' & (10) for 96''

13

87D10

NUT (7) for 60'', (8) for 72'', (9) for 84'' & (10) for 96''

14

6987301

INSTRUCTIONS
