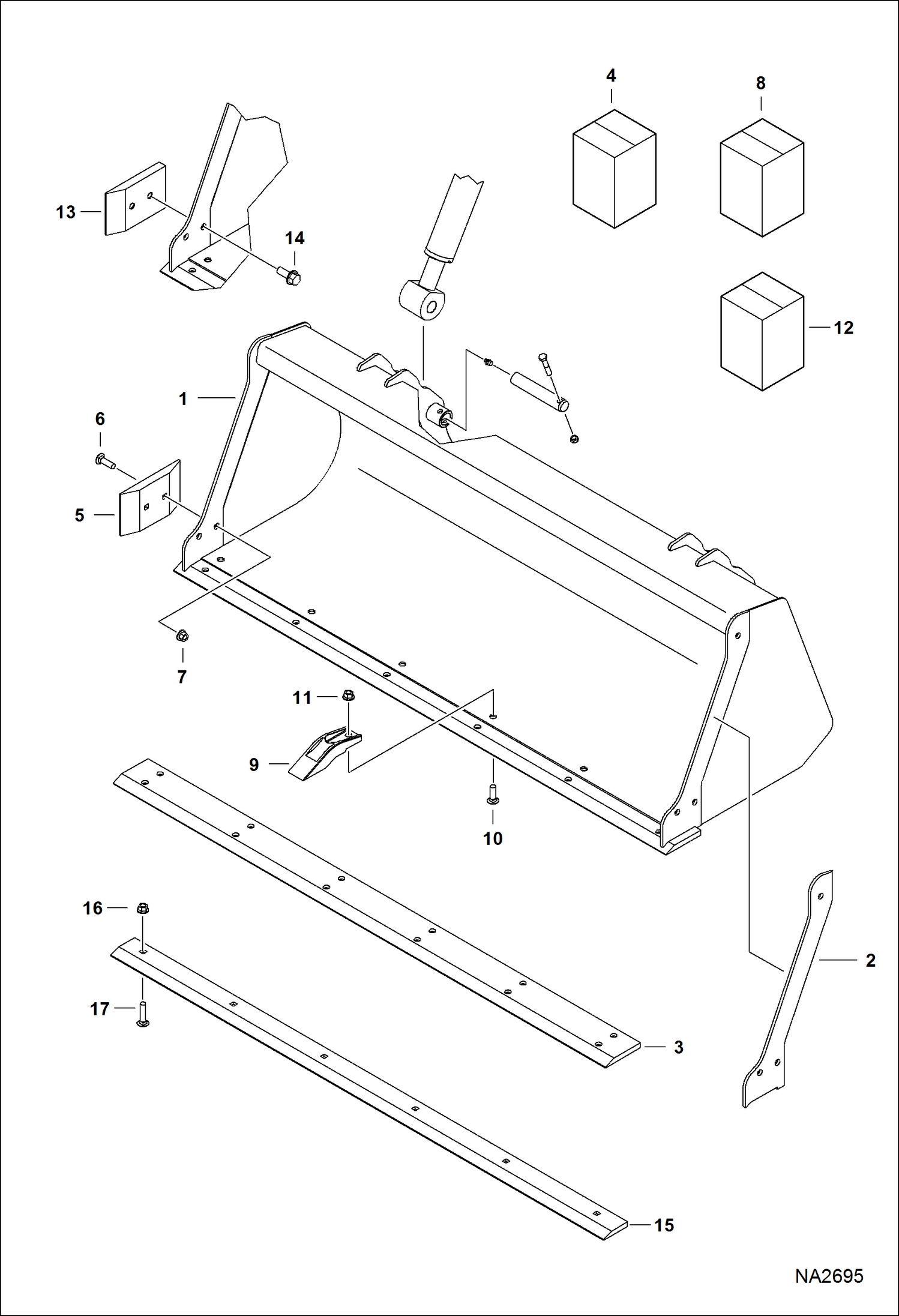

Запчасти Bobcat LOADER - ATTACHMENTS BUCKET (Pin-on) (56 AKKS) (62 AKKY) (68 AKL4) Компактные тракторы

1

BUCKET SALES #7188338 - 56''

1

BUCKET SALES #7188342 - 62''

1

BUCKET SALES #7188367 - 68''

2

7186671

EDGE, CUTTING WELD-ON SIDE

3

7104135

EDGE, CUTTING WELD-ON 56''

4

KIT, EDGE CUTTING NLA - Ref. 5-7

5

6805464

EDGE, CUTTING BOLT-ON 4'' tapered 2 edges

6

39C828

BOLT

7

95D8

NUT

8

6728247

KIT, TOOTH BUCKET 7 Ref. 9-11

9

TOOTH NSS - Order Ref. 8

10

9G828

BOLT

11

97D8

NUT

12

6729084

KIT, EDGE CUTTING Ref. 13 & 14

13

6719407

EDGE, CUTTING BOLT-ON 4'' tapered 1 edge

14

17C816

BOLT

15

7125269

EDGE, CUTTING BOLT-ON 56''

15

6732406

EDGE, CUTTING BOLT-ON 62''

15

7104508

EDGE, CUTTING BOLT-ON 68'' 7 holes - 10.6'' on center

16

97D8

NUT

17

9G824

SCREW
