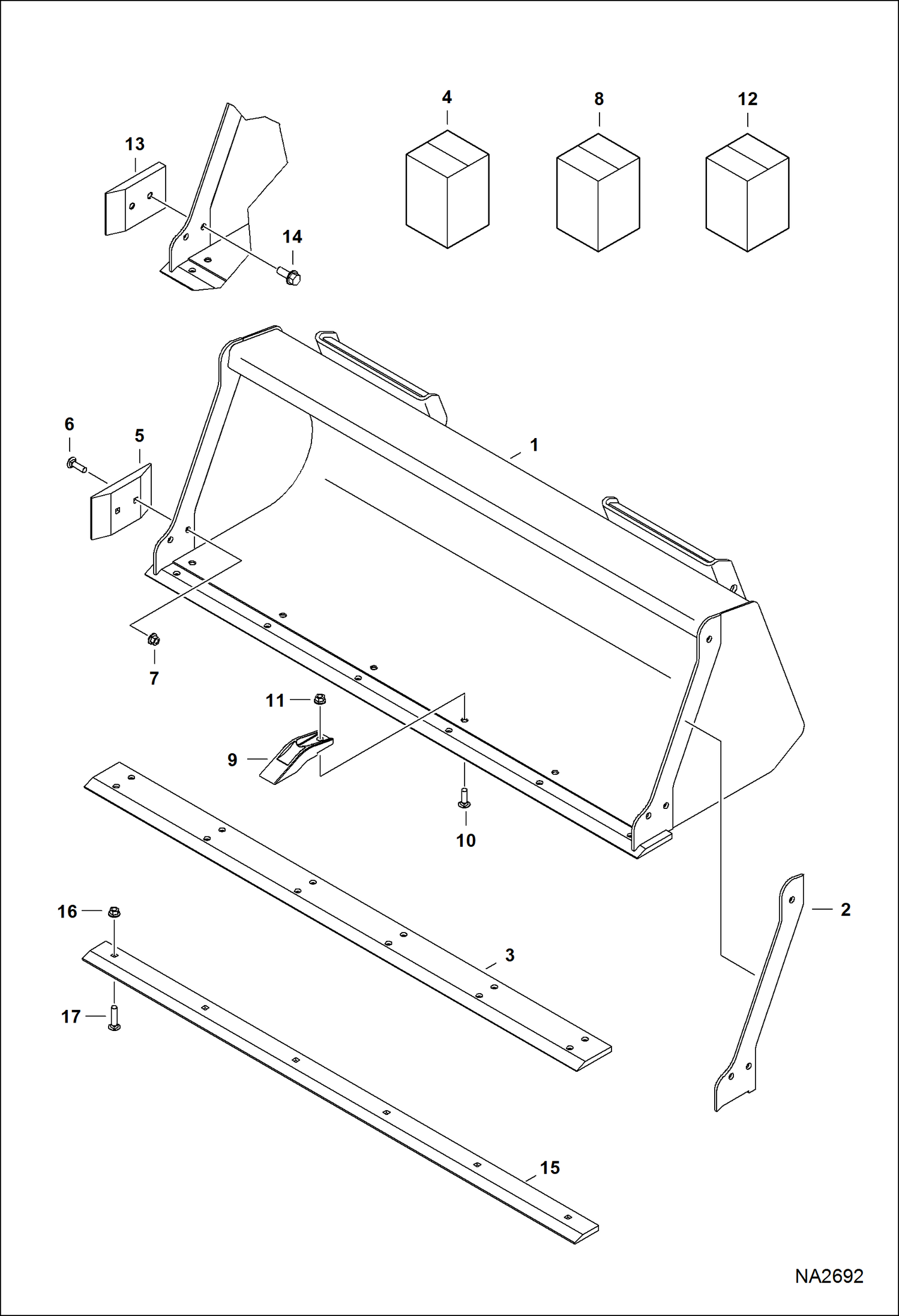

Запчасти Bobcat LOADER - ATTACHMENTS BUCKET (Bob-Tach Mounted) (56 AKKP) (62 AKKV) (68 AKL2) (74 AKL6) Компактные тракторы

1

BUCKET SALES #7188336 - 56''

1

BUCKET SALES #7188340 - 62''

1

BUCKET SALES #7188365 - 68''

1

BUCKET SALES #7188369 - 74''

2

7186671

EDGE, CUTTING WELD-ON SIDE 56'' & 62''

2

7182564

EDGE, CUTTING WELD-ON SIDE 68'' & 74''

3

7104135

EDGE, CUTTING WELD-ON 56''

3

7104506

EDGE, CUTTING WELD-ON 62''

3

6736392

EDGE, CUTTING WELD-ON 68''

3

6737247

EDGE, CUTTING WELD-ON 74''

4

KIT, EDGE CUTTING NLA - Order Ref. 5-7

5

6805464

EDGE, CUTTING BOLT-ON 4'' tapered 2 edges

6

39C828

BOLT

7

95D8

NUT

8

6728247

KIT, TOOTH BUCKET 7 Ref. 9-11

9

TOOTH NSS - Order Ref. 8

10

9G828

BOLT

11

97D8

NUT

12

6729084

KIT, EDGE CUTTING Ref. 13 & 14

13

6719407

EDGE, CUTTING BOLT-ON 4'' tapered 1 edge

14

17C816

BOLT

15

7125269

EDGE, CUTTING BOLT-ON 56''

15

6732406

EDGE, CUTTING BOLT-ON 62''

15

7104508

EDGE, CUTTING BOLT-ON 68'' 7 holes - 10.6'' on center

15

7104510

EDGE, CUTTING BOLT-ON 74''

16

97D8

NUT

17

9G824

SCREW
