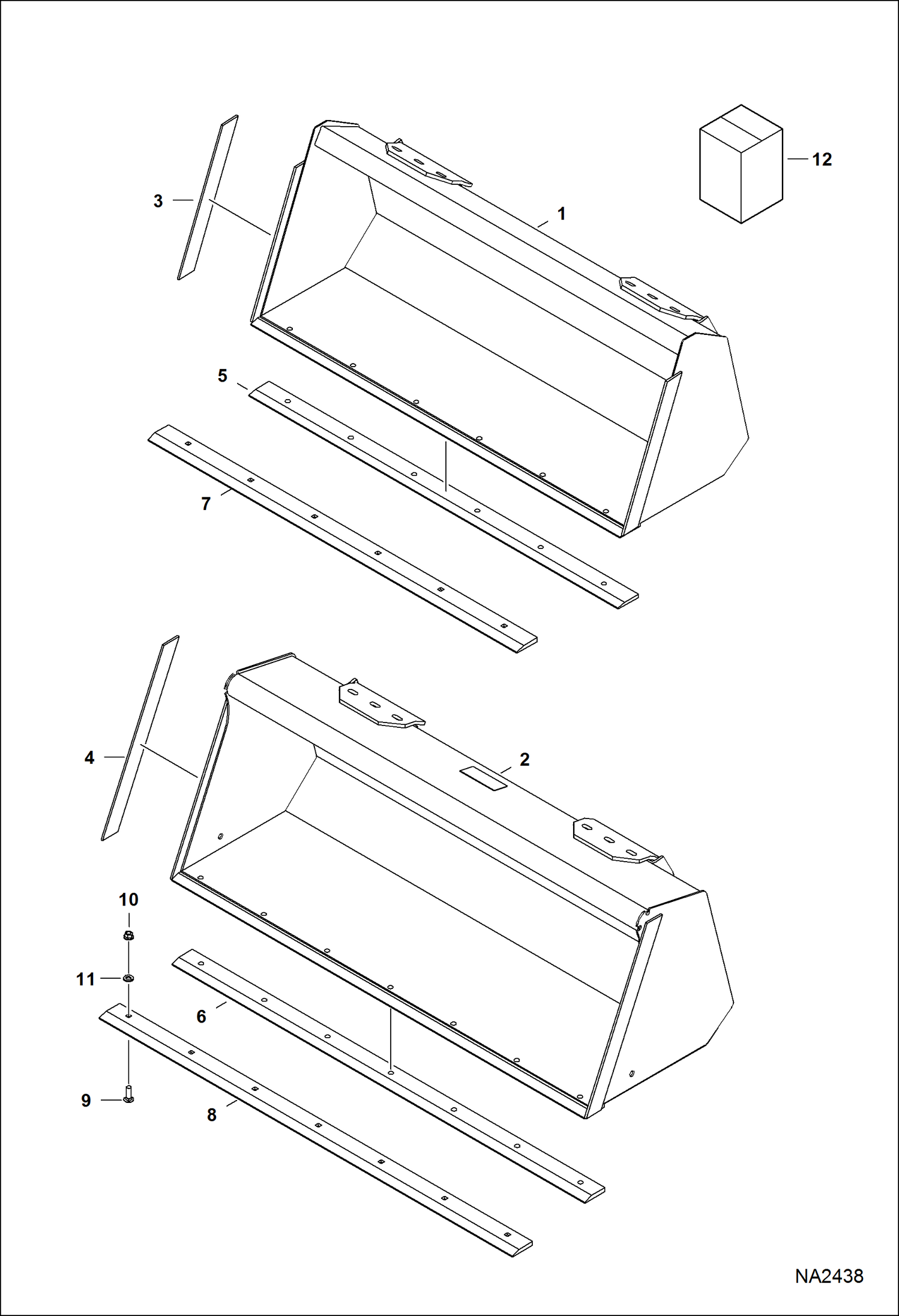

Запчасти Bobcat LOADER - ATTACHMENTS BUCKET (Bob-Tach Mounted) (54 AFE6) (60 AFE7) (68 AEH2) (72 AEFD) Компактные тракторы

1

BUCKET SALES #7170327 - 54''

2

BUCKET SALES #7170328 - 60''

2

BUCKET SALES #7166920 - 68''

2

BUCKET SALES #7166839 - 72''

3

7011964

EDGE, CUTTING WELD-ON SIDE 54''

4

7009039

EDGE, CUTTING WELD-ON SIDE 60'' & 72''

4

7009040

EDGE, CUTTING WELD-ON SIDE 68''

5

7011963

EDGE, CUTTING WELD-ON 54''

6

6693815

EDGE, CUTTING WELD-ON 60'' W/holes for optional bolt-on edge

6

7009041

EDGE, CUTTING WELD-ON 68''

6

7008785

EDGE, CUTTING WELD-ON 72''

7

EDGE, CUTTING BOLT-ON 54'' NLA - Order Ref. 5

8

EDGE, CUTTING BOLT-ON 60'' NSS - Order Ref. 12

8

EDGE, CUTTING BOLT-ON 68'' NSS - Order Ref. 12

8

EDGE, CUTTING BOLT-ON 72'' NSS - Order Ref. 12

9

39C828

BOLT

10

7D8

NUT 5 hex jam

11

4E8

WASHER

12

KIT, EDGE CUTTING NLA - 54'' bolt-on - Order Ref. 5

12

7151822

KIT, EDGE CUTTING 60'' bolt-on - Ref. 8-11

12

7151823

KIT, EDGE CUTTING 68'' bolt-on - 8 holes - 9.25'' on center - Ref. 8-11

12

7009042

KIT, EDGE CUTTING 72'' bolt-on - Ref. 8-11
