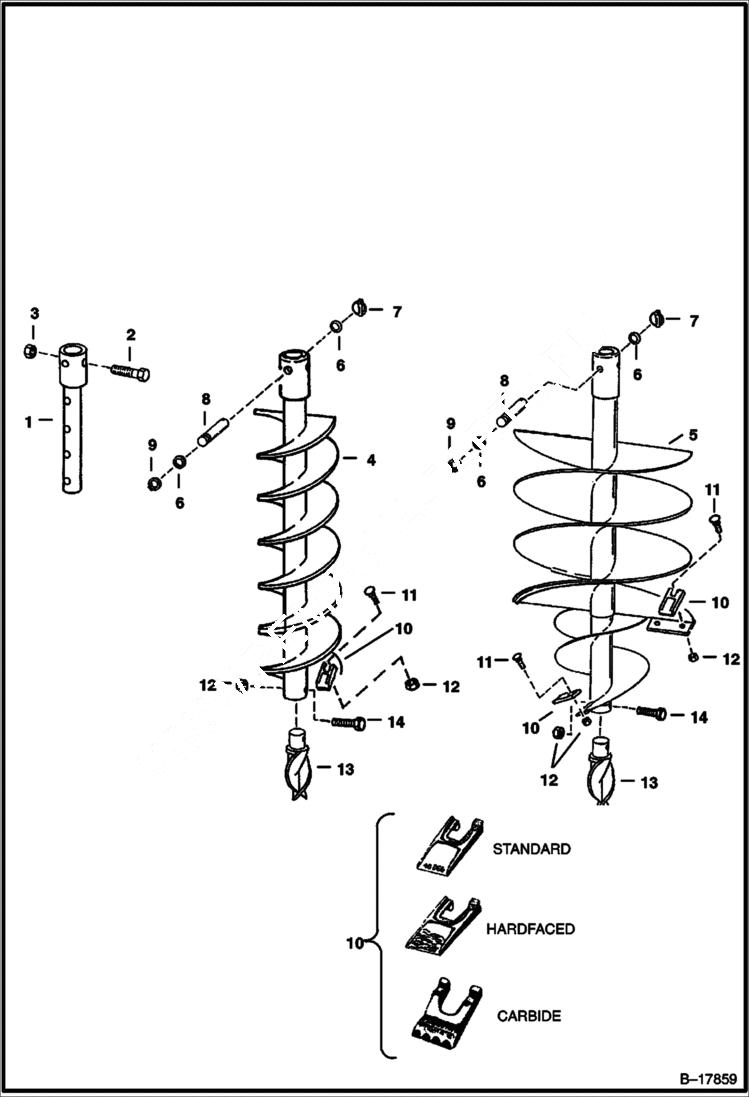

Запчасти Bobcat LOADER - ATTACHMENTS AUGER (Bobcat - Standard - Round Drive Double Flight - Pengo) Компактные тракторы

1

6679826

EXTENSION variable - 24'' (610 mm) - Was 6667027 - A

1

6679825

EXTENSION fixed - 14'' (356 mm) - Was 6675274 - A

1

6679806

EXTENSION variable - 48'' (1219 mm)

2

17C1472

BOLT

3

61D14

NUT

4

6666891

AUGER 6'' (152 mm) - 2 teeth

4

6666892

AUGER 9'' (229 mm) - 4 teeth

4

6666893

AUGER 12'' (305 mm) - 4 teeth

4

6666894

AUGER 15'' (381 mm) - 5 teeth

4

6666895

AUGER 18'' (457 mm) - 6 teeth

4

6666896

AUGER 24'' (6010 mm) - 8 teeth

4

6666897

AUGER 30'' (762 mm) - 10 teeth

4

6666898

AUGER 36'' ( 914 mm) - 12 teeth

5

6666899

AUGER tree - 18'' (457 mm) - 8 teeth

5

6666900

AUGER tree - 24'' (610 mm) - 9 teeth

5

6666901

AUGER tree - 30'' (762 mm) - 11 teeth

5

6666902

AUGER tree - 36'' (914 mm) - 12 teeth

6

27E14

WASHER 5

7

6560382

PIN, LOCK

8

6534667

PIN .87'' (22,1 mm) dia x 5.52'' (140 mm) long

9

6534668

SNAP RING

10

6667489

TOOTH 40/50 standard

10

6674955

TOOTH 40/50 hardfaced

10

6675275

TOOTH 40/50 carbide

11

BOLT NLA - Order 37C824 bolt & Ref. 12 (87D8 nut) - Was 6667491 - A

11

37C824

BOLT

12

87D8

NUT lock jam - Was 6675276 - B

13

6674952

POINT pilot - Was 6667490 - A

13

6674953

POINT pilot - hardfaced

13

6674954

POINT pilot - carbide

14

17C864

BOLT 4.00'' (101,6 mm) - Use W/ 12'' - 36'' augers & 24'' - 36'' tree augers

14

17C856

BOLT 3.50'' (88,9 mm) - Use W/ 6'' - 9'' augers & 18'' tree augers
