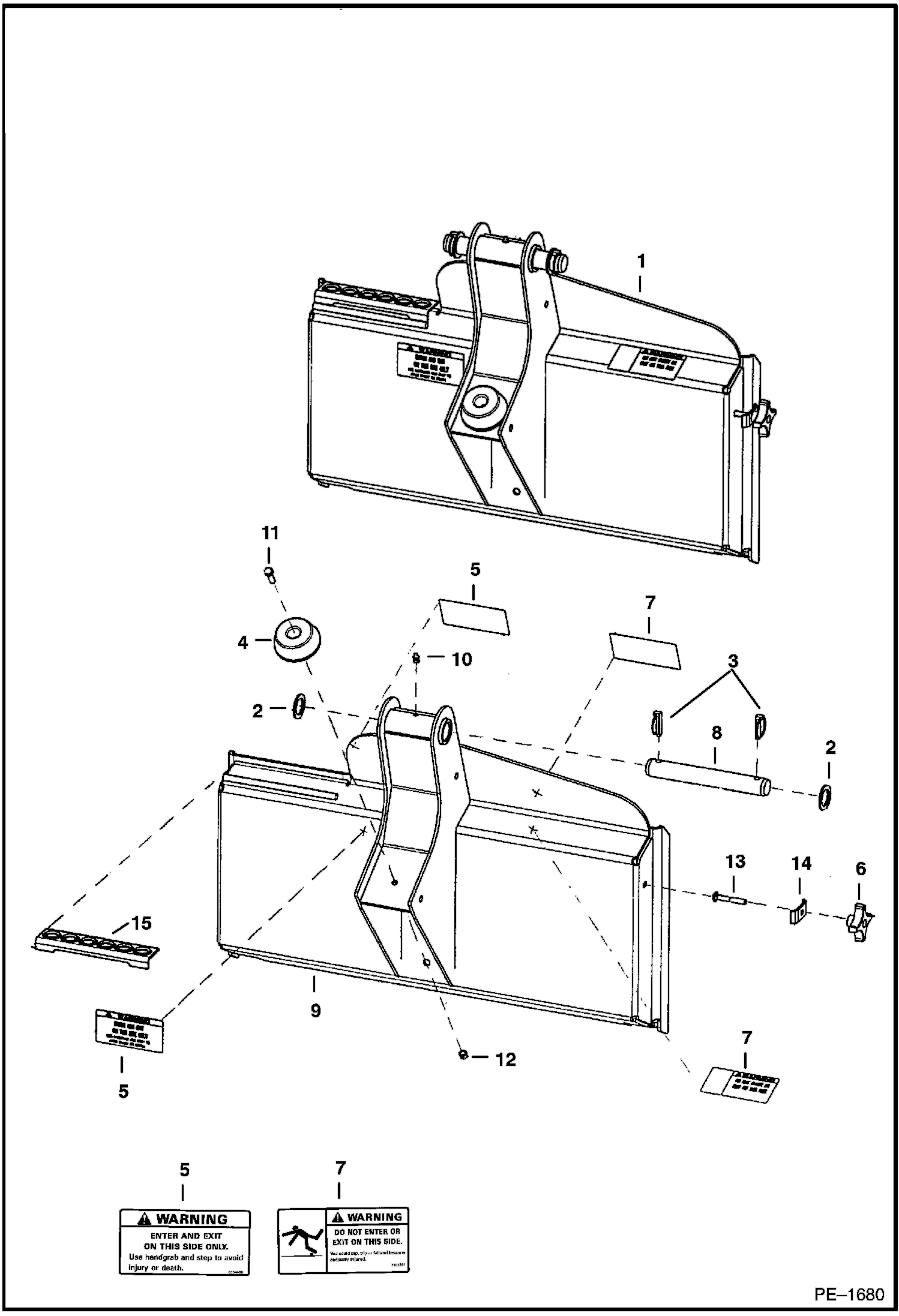

Запчасти Bobcat LOADER - ATTACHMENTS AUGER (Mounting Frame) (Model 10 8799) Компактные тракторы

1

MOUNT ASSY SALES #6812946 - Ref. 2-15

2

6534111

WASHER

3

6560382

PIN, LOCK

4

6562109

STOP, SWING

5

6594488

DECAL, WARNING

6

6670536

KNOB

7

6701391

DECAL, EXIT

8

6709675

PIN

9

MOUNT NSS - Order Ref. 1

10

10H25

FITTING, GREASE 5

11

17C620

BOLT

12

61D6

NUT 5

13

7107210

BOLT Was 7C000640B - B

14

6502426

CLAMP

15

6569838

STEP
