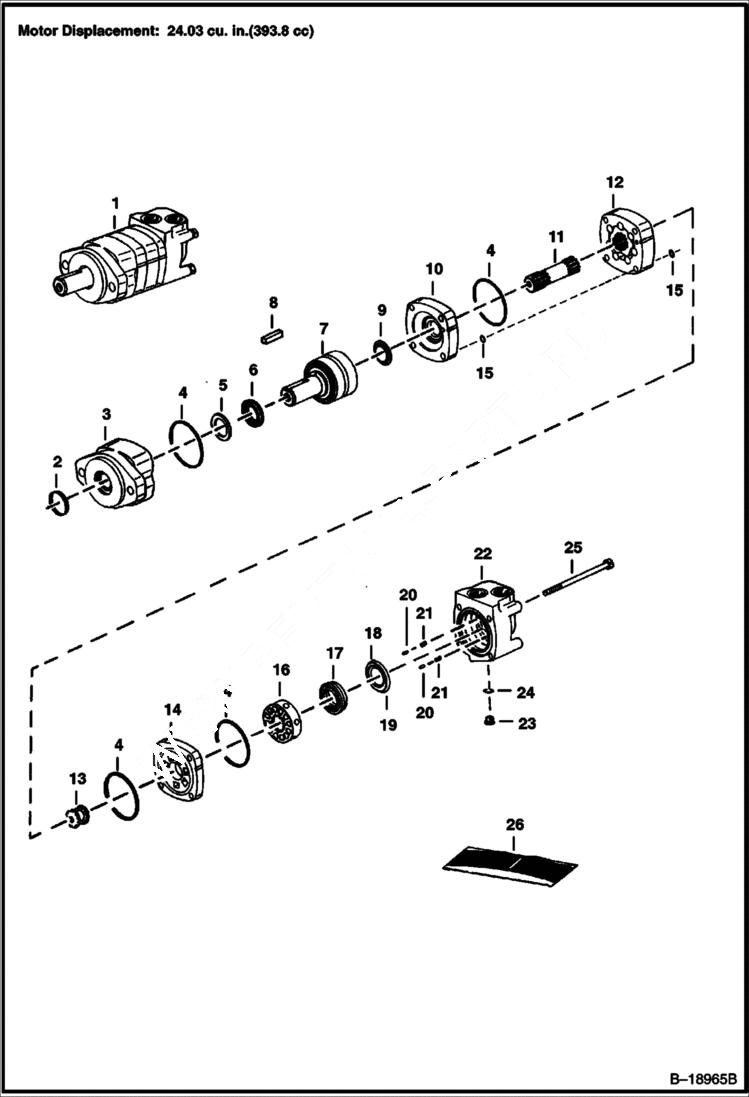

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Hydrostatic Motor) (Eaton 104-1784-006) (B Series) Loader

1

6669328

MOTOR Ref. 2 - 25 - Was 6668686 - D

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6632285

HOUSING

4

O-RING NSS

5

BACK-UP RING NSS

6

SEAL NSS - shaft

7

6632290

SHAFT ASSY

8

6632292

KEY

9

1992098

SEAL

10

6632286

WEAR PLATE

11

6669150

DRIVE

12

6669151

GEROLER

13

1992084

DR VALVE

14

6656368

PLATE

15

O-RING NSS

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL inner

19

SEAL NLA - Order Ref. 26 seal kit - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

O-RING NSS

25

6651951

BOLT

26

6648973

KIT, SEAL W/Ref. 2, 4 - 6, 9, 15, 18, 19 & 24
