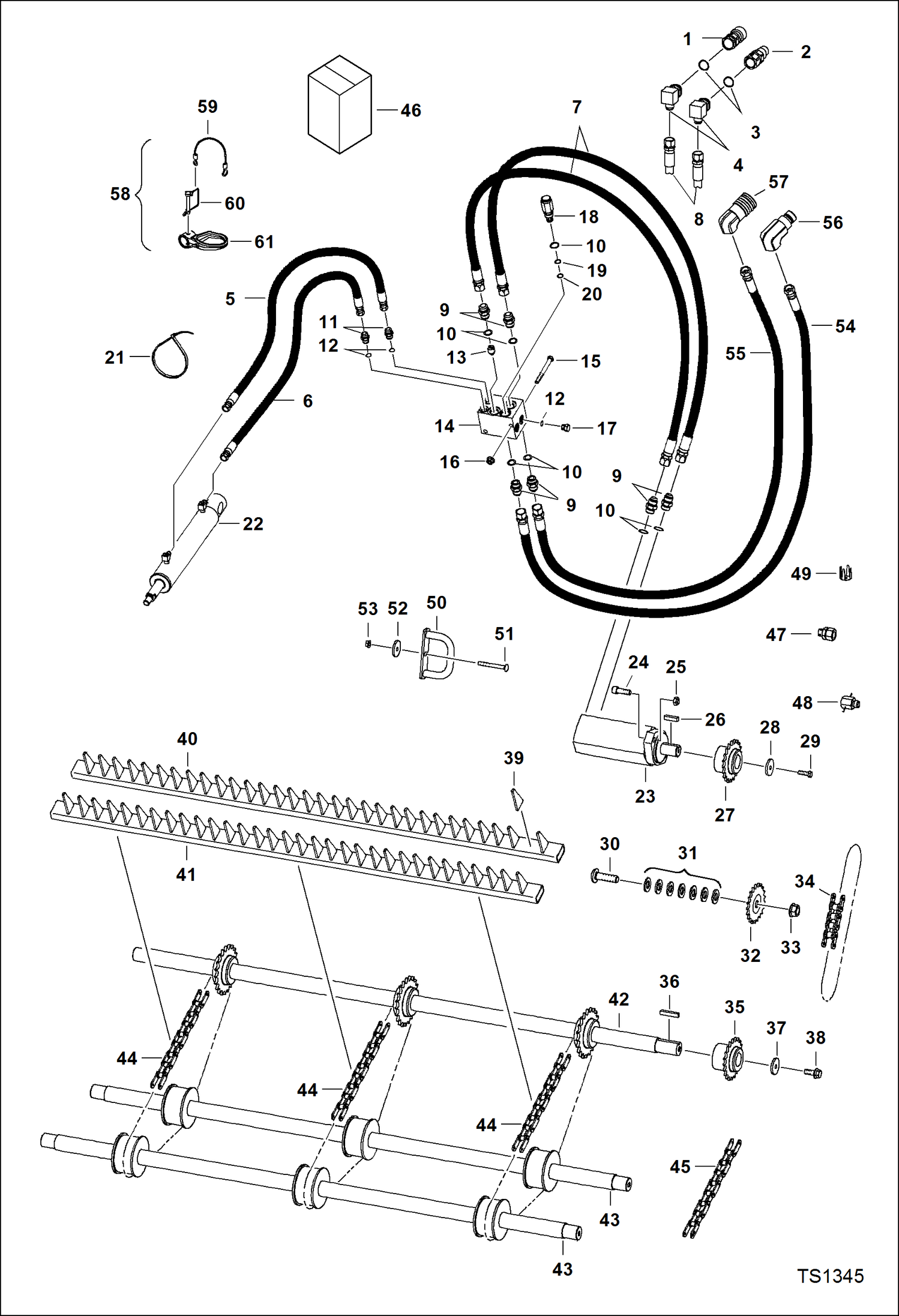

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Hydraulics) (With Weld-on Tooth Bars) (B Series) (5 Foot & 6 Foot) Loader

1

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

2

6674688

COUPLER, FF MALE straight - Was 6667808 - A

2

6679841

SEAL Was 6672026 - A

3

79K12

O RING 10

4

17KB1012

FITTING, HYD ELBOW Was 1302104B - A

5

6711669

HOSE

6

6711670

HOSE

7

6711671

HOSE

8

HOSE NLA - 1194 mm (47'') long - Order 6815774 - Was 6711668 - A

8

6815774

HOSE, HYD ASSY 1321 mm (52'') long - .875'' threads - Use straight couplers

9

15KB1010

FITTING, HYD CONNECTOR flat boss face - Was 15K-7 - A

9

ADAPTER NLA - tapered boss face - Order 15K000007B - Was 15KV00007B - A

10

79K10

O RING 10 flat boss face

10

99K10

O'RING tapered boss face

11

15K5

FITTING flat boss face

11

ADAPTER NLA - tapered boss face - Was 15KV00005B - A

11

15KB0606

FITTING, HYD CONNECTOR flat boss face

12

79K6

O RING 10 for flat boss face

12

99K6

O RING tapered boss face

13

6711387

POPPET

14

7120816

PORT BLOCK Was 6710523 - A

15

17C660

BOLT

16

83D6

NUT 5

17

24K5

PLUG flat boss face

17

PLUG NLA - tapered boss face - Order 24K5 - Was 24KN000005 - A

18

6668012

RELIEF VALVE

19

80K14

BACK-UP WASHER Was 73K000014B - B

20

58K014

O-RING 10

21

6624289

STRAP, TIE

22

CYLINDER See Illustration LANDSCAPE RAKE/ B13916A

23

MOTOR See Illustration LANDSCAPE RAKE/ B18965C See Illustration LANDSCAPE RAKE/ B18965B

24

93G824

BOLT Was 73G000824B - B

25

85D8

NUT, 5

26

6632292

KEY

27

7110860

SPROCKET Was 6704996 - A

28

872229

WASHER

29

31C616

SCREW Was 31C000620B - B

30

10C1248

BOLT Was 10C001236B - A

31

25E27

WASHER

32

6667920

SPROCKET Idler

33

57D12

NUT

34

6711713

CHAIN 1524 mm (5') - 40 pitch

34

6711712

CHAIN 1829 mm (6') - 43 pitch

34

6711713

CHAIN 1829 mm (6') - 40 pitch

34

6510171

LINK connector

35

7110859

SPROCKET 1524 mm (5') - 13 teeth - Was 6704993 - A

35

6709889

SPROCKET 1829 mm (6') - 18 teeth

35

7110859

SPROCKET 1829 mm (6') - 13 teeth - Was 6704993 - A

36

7J5104

KEY

37

6704978

WASHER

38

31C820

BOLT

39

6704959

TOOTH

40

6712657

BAR ASSY 1524 mm (5') - W/teeth on ends

40

6712659

BAR ASSY 1829 mm (6') - W/teeth on ends

41

6712658

BAR ASSY 1524 mm (5') - W/ (3) of Ref. 45 & space on ends

41

6712660

BAR ASSY 1829 mm (6') - W/Ref. 45 & space on ends

42

6709116

SHAFT drive - 1524 mm (5')

42

6704969

SHAFT, RAKE DRIVE drive - 1829 mm (6')

43

6709114

SHAFT idler - 1524 mm (5')

43

6704971

SHAFT idler - 1829 mm (6')

44

6707727

CHAIN

44

6707729

LINK connector - with cotter pin

44

6675307

LINK connector - with flat keeper

45

6707728

CHAIN service - 3 pitches

46

RAKE ASSY NLA - 1524 mm (5') - W/weld-on tooth bars - W/Ref. 39-41 & 44 - Order 7125278 rake assy - Was 6709118 - A

46

7125278

RAKE ASSY See Illustration LANDSCAPE RAKE/ PE3013 - 1524 mm (5') - W/bolt-on tooth bars

46

RAKE ASSY NLA - 1829 mm (6') - W/weld-on tooth bars - W/Ref. 39-41 & 44 - Order 7125350 rake assy - Was 6704964 - A

46

7125350

RAKE ASSY See Illustration LANDSCAPE RAKE/ PE3013 6 ft.(1829mm) - W/bolt on tooth bars

47

1312113

FTG

48

6631698

RESTRICTOR 3000 psi (20684 kPa) - for 740 series & older 750 series without ''C'' series control valve - installs in tilt cylinder rod end

49

6579152

RESTRICTOR for 753, 753H, 763 & 773 loaders with ''C'' series valve - installs in tilt section rod end port - not used with 853 or 853H - Was 6672503 - A

50

6706160

GUIDE

51

7C652

BOLT

51

37C680

BOLT Was 7C-680 - A

52

25E17

WASHER 5

53

57D6

NUT 5

54

7179478

HOSE, HYD 1245 mm (49'') long - .875'' thread & 1.063'' thread - Use male 90 degree couplers

55

7179479

HOSE, HYD 1321 mm (52'') long - .875'' thread & 1.063'' thread - Use female 90 degree couplers

56

7168432

COUPLER, FF MALE 90 degree

57

7168433

COUPLER, FF FEMALE 90 degree

58

7161953

GUIDE, HOSE ASSY Ref. 59-61

59

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve - Was 7167775 - D

59

6558309

WIRE ROPE bulk - sold per foot

59

6558310

SLEEVE

60

7161559

PIN, SNAPPER

61

GUIDE NSS - Order Ref. 58
