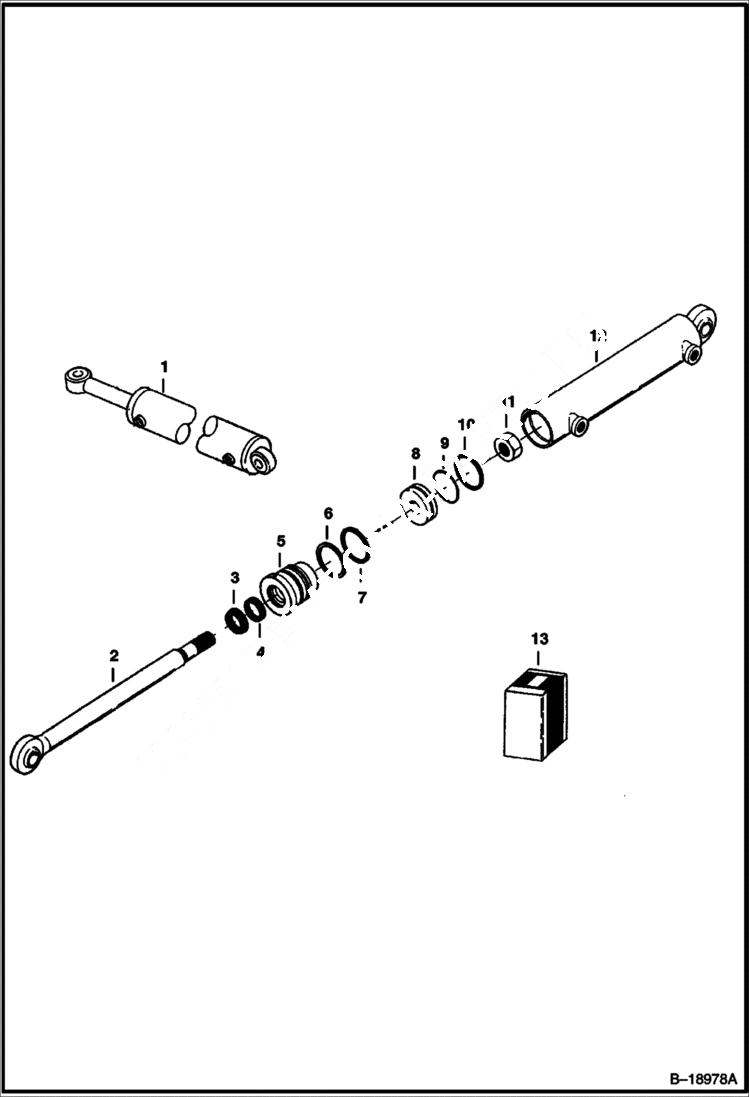

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Bucket Cylinder) (3-Point Hitch Mounted) (A or B Series) Loader

1

6632390

CYLINDER

2

ROD NLA - Order Ref. 1 - Was 6643247 - A

3

SEAL NSS

4

SEAL NSS

5

HEAD NLA - Order Ref. 1 - Was 6643243 - A

6

RING NSS

7

O-RING NSS

8

PISTON NLA - Order Ref. 1 - Was 6643241 - A

9

SEAL NSS

10

WASHER NSS - back-up

11

NUT NLA - Order Ref. 1 - Was 6643240 - A

12

BARREL NLA - Order Ref. 1 - Was 6643246 - A

13

SEAL KIT NLA - Ref. 3, 4, 6, 7, 9 & 10 - Order Ref. 1 - Was 6643248 - A
