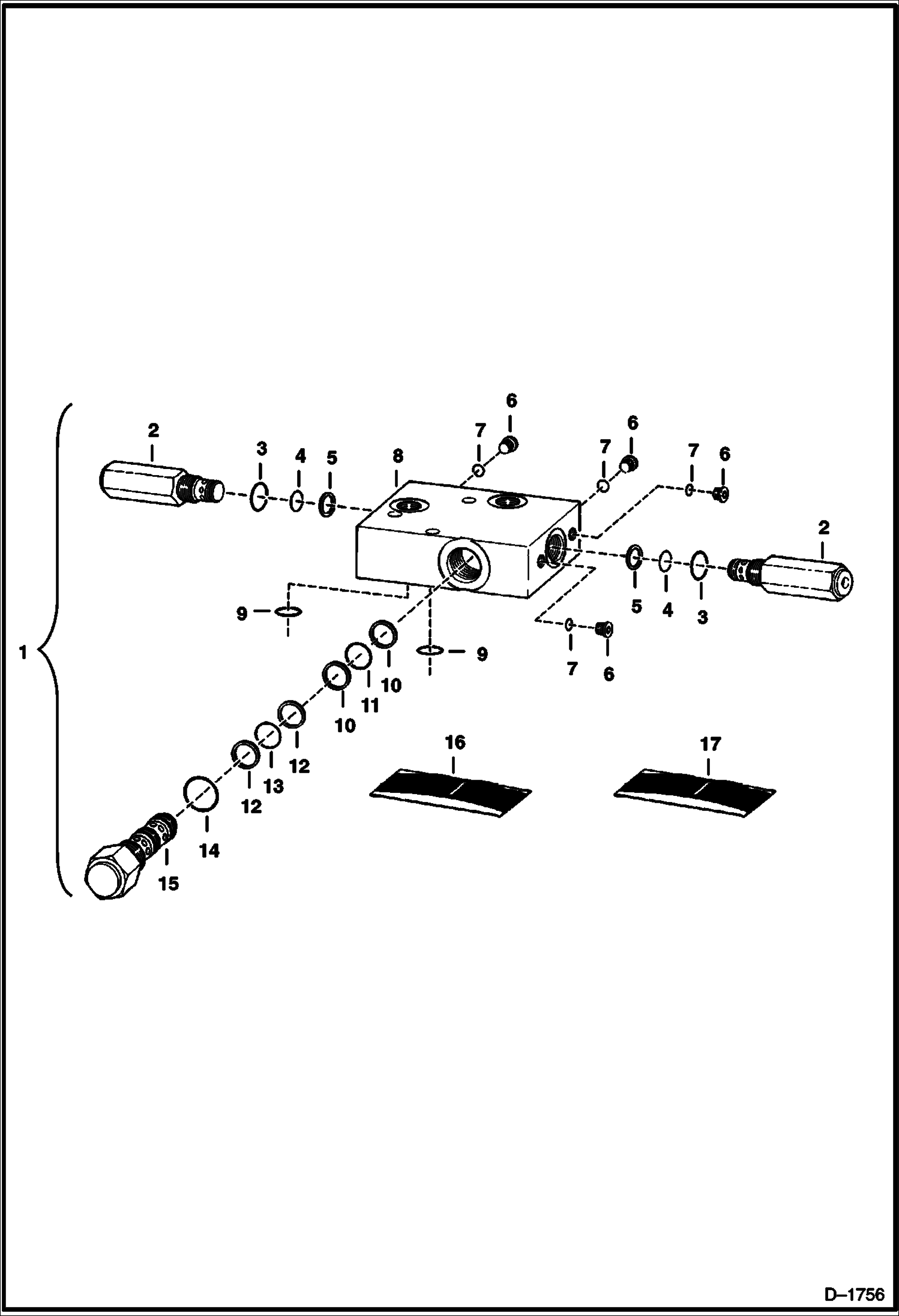

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Flow Valve) (A Series) Loader

1

6632259

VALVE W/Ref. 1 - 9

2

6632341

RELIEF VALVE 1750 PSI

3

O-RING NSS

4

O-RING NSS

5

BACK-UP RING NSS

6

6632339

PLUG W/O-Ring

7

79K6

O RING 10

8

6632338

BODY

9

6632340

O-RING

10

BACK-UP RING NSS

11

O-RING NSS

12

BACK-UP RING NSS

13

O-RING NSS

14

O-RING NSS

15

6632257

REGULATOR flow (5 GPM) - W/Ref. 10-14

15

6632258

REGULATOR flow (10 GPM) - W/Ref. 10-14

16

6632343

SEAL KIT Ref. 10 - 14

17

6632342

SEAL KIT Ref. 3 - 5
