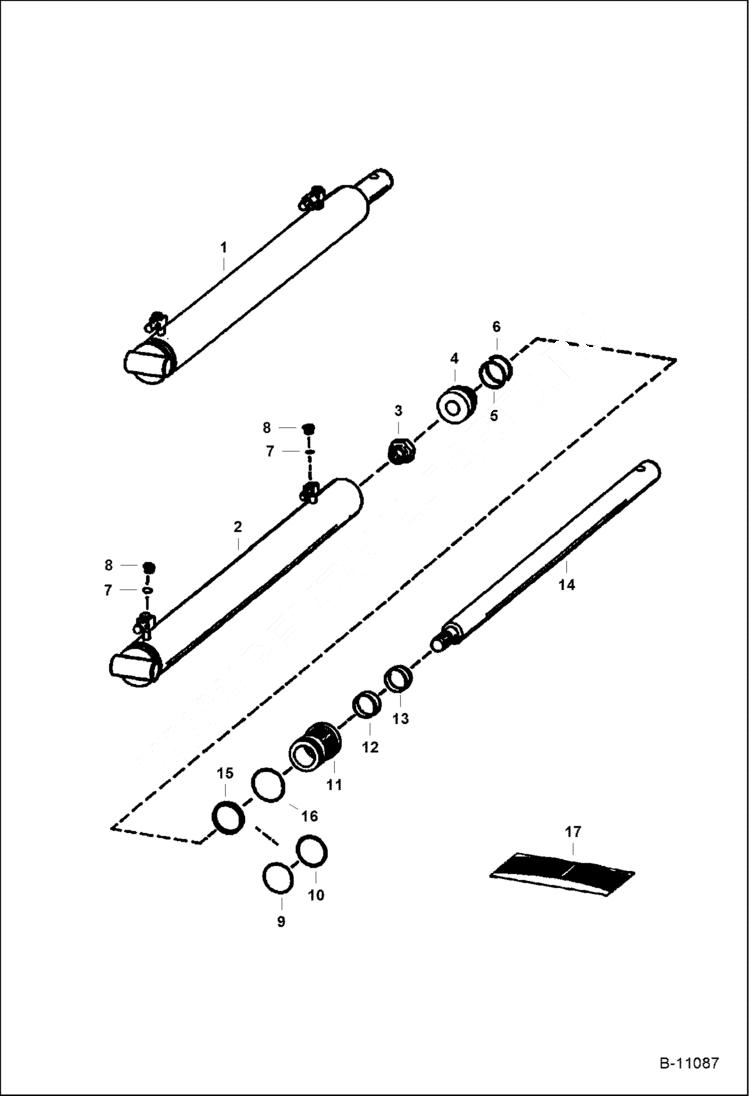

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (Lift Cylinder) (A Series) Loader

1

CYLINDER NLA - Ref. 2 - 14 - Order 6587808 , 92D000012B & 6705839 - Was 6529546 - A

2

6529579

CASE cylinder

3

92D12

NUT Was 86D000012B - B

4

6558196

PISTON

5

54K30118

O-RING

6

6516231

SEAL

7

79K3

O RING 10

8

47K2

PLUG W/Ref. 7

9

54K40124

O-RING

10

73K224

RING back-up

11

6538595

HEAD, CYL HYD Was 6504933 - A

12

6667323

SEAL rod

13

6666542

SEAL, WIPER ROD

14

6529547

ROD

15

7008781

SEAL, QUAD

16

82K136

O-RING

17

7137771

SEAL KIT Ref. 3, 5, 6, 12, 13, 15, & 16 - Was 6803472 - A
