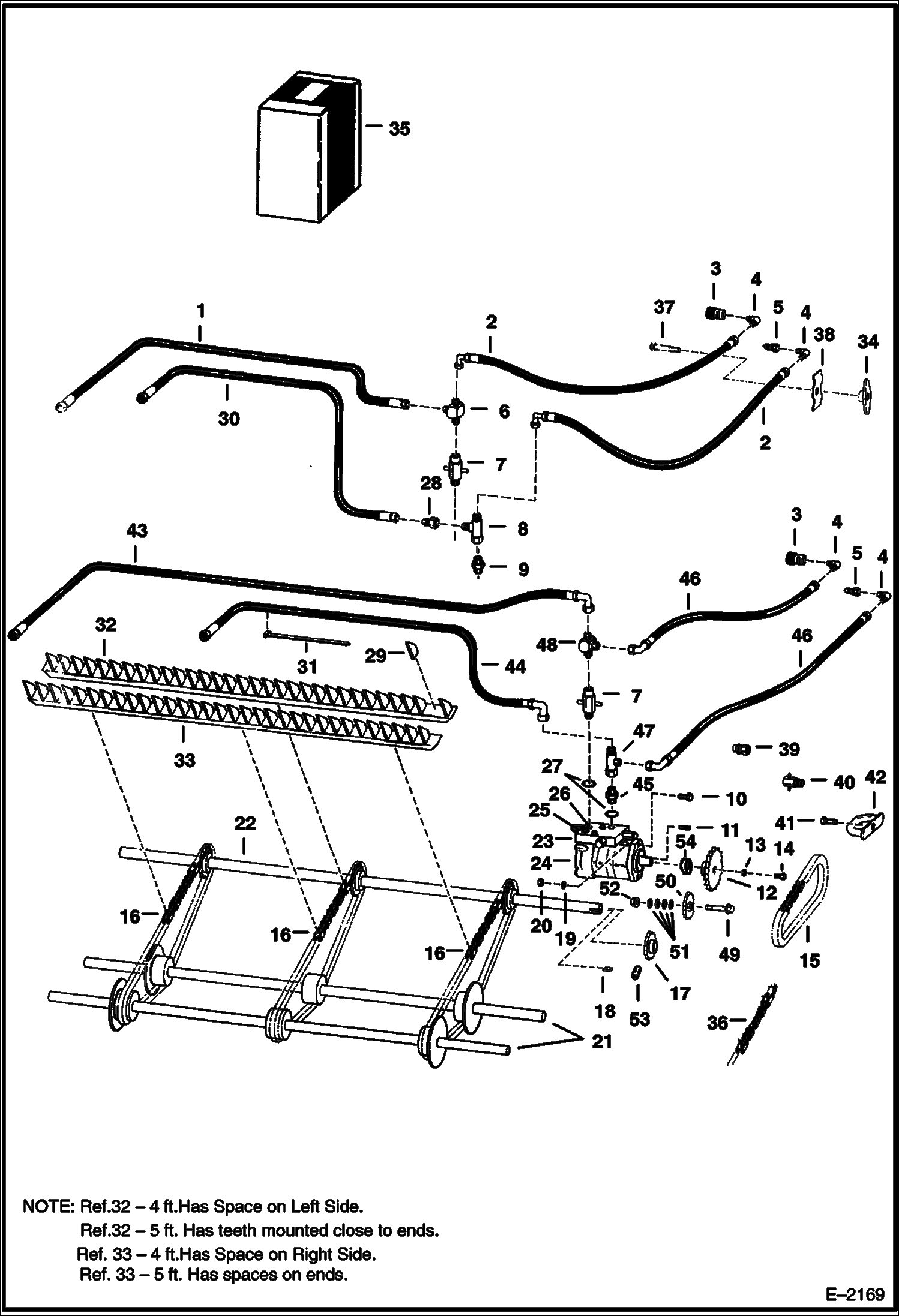

Запчасти Bobcat LANDSCAPE RAKE LANDSCAPE RAKE (A Series) (4 Foot, 5 Foot & 6 Foot) Loader

1

6531679

HOSE Was 6529553 - A

2

6531677

HOSE 70

3

6598758

COUPLER, POPPET FEMALE straight

3

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

3

48K16

O RING 10 for poppet couplers

4

17K7

ELBOW Use with poppet couplers

4

17KB1012

FITTING, HYD ELBOW Use with flush face couplers - Was 1302104B - A

5

6598757

COUPLER, POPPET MALE straight

5

6674688

COUPLER, FF MALE straight - Was 6667808 - A

5

6679841

SEAL Was 6672026 - A

6

6529554

TEE

7

6635878

VALVE THROTTLE

8

13K7

FITTING

9

731793

CONNECTR

10

17C828

BOLT Hex Head

10

9G832

CAPSCREW Countersunk

11

7J4100

KEY

12

6594452

SPROCKET 4 ft.(1219,2mm) 5 GPM - 22 teeth

12

6594643

SPROCKET 5 ft.(1524mm) 10 GPM - 17 teeth

12

6594497

SPROCKET, SWEEPER BRUSHED 17 teeth

13

872229

WASHER Was 4E000006B - B

14

17C616

BOLT 5 Was 17C000620B - B

15

6594642

CHAIN .75'' pitch

15

6632387

LINK connector - 60H (.75'') pitch W/ keeper

15

6632444

LINK offset - maximum Qty. of 4

16

6594453

CHAIN 60H (.75'' pitch) & 2060H (1.5'' pitch) - combination

16

6515191

LINK connector - 60H (.75'' pitch) - peened

16

6707727

CHAIN All 2060H (1.5'' pitch)

16

6707729

LINK connector - 2060H (1.5'' pitch) - W/flat keeper

16

6675307

LINK connector - 2060H (1.5'' pitch) - W/cotter pin

17

6594417

SPROCKET 4 ft. (1219,2mm) 5 GPM-12 teeth

17

6594498

SPROCKET 5 ft. (1524mm) & 6 ft. (1829mm) 10 GPM-20 teeth

18

7J5104

KEY

19

4E8

WASHER

20

61D8

NUT 5

21

6704579

SHAFT intermediate & adjusting - 4 ft. (1219,2mm) - Was 6594441 - A

21

6704580

SHAFT intermediate & adjusting - 5 ft. (1524mm) - Was 6594622 - A

21

6704582

SHAFT intermediate & adjusting - 6 ft. (1829mm)

22

6594448

SHAFT drive - 4 ft. (1219,2mm)

22

6594627

SHAFT, RAKE DRIVE drive - 5 ft. (1524mm)

22

6594730

SHAFT, DRIVE drive - 6 ft. (1829mm)

23

VALVE See Illustration LANDSCAPE RAKE/ D1756 FLOW

24

MOTOR See Illustration LANDSCAPE RAKE/ B18965A

25

25E17

WASHER 5

26

17C632

BOLT 5

27

79K8

O RING 10

28

784244

ADAPTOR

29

6704959

TOOTH Was 6594457 - A

30

6531678

HOSE Was 6529552 - A

30

6704671

HOSE

31

6624289

STRAP, TIE

32

6594686

BAR ASSY A - 4 ft.(1219,2mm) - W/Qty. 25 of - Ref. 29 - SEE NOTE

32

6594688

BAR ASSY A - 5 ft. (1524mm) - W/Qty. 32 of Ref. 29 & Qty. 3 of Ref. 36

32

6708524

BAR ASSY A - 5 ft. (1524mm) - W/2060H Chain & Link - W/Qty. 32 of Ref. 29 & Qty. 3 of Ref. 36

32

6594690

BAR ASSY A - 6 ft. (1829mm) - (39) of Ref. 29 & (3) of Ref. 36

32

6707730

BAR''A''6A A - 6 ft. (1829mm) - (39) of Ref. 29 & (3) of Ref. 36 - W/2060H

33

6594685

BAR ASSY B - 4 ft.(1219,2mm) - W/Qty. 25 of - Ref. 29 - SEE NOTE

33

6594687

BAR ASSY B - 5 ft. (1524mm) - W/Qty. 31 of Ref. 29 & Qty. 3 of Ref. 36

33

6708525

BAR ASSY B - 5 ft. (1524mm) - W/2060H Chain & Link - W/Qty. 31 of Ref. 29 & Qty. 3 of Ref. 36

33

6594689

BAR ASSY B - 6 ft. (1829mm) - (38) of Ref. 29 & (3) of Ref. 36

33

6707731

BAR''A''6A B - 6 ft. (1829mm) - (38) of Ref. 29 & (3) of Ref. 36 - W/2060H

34

6647668

KNOB plastic

35

6594451

RAKE ASSY W/Ref. 16, 29, 32 & 33 - 4 FT. (1219,2 mm)

35

6594629

RAKE, LANDSCAPE CHAIN ASSY W/Ref. 16, 29, 32 & 33 - 5 ft. (1524 mm)

35

6594733

RAKE, LANDSCAPE CHAIN ASSY W/Ref. 16, 29, 32 & 33 - 6 ft. (1829 mm)

36

6594599

CHAIN service - 7 Pitches-60H & 2060H

36

6707728

CHAIN service - 5 Pitches-2060H chain

37

17C680

BOLT

38

6563353

CLAMP

39

1312113

FTG

40

6631698

RESTRICTOR 3000 PSI (20684 kPa) installs in tilt cylinder rod end

41

37C652

BOLT

42

6706160

GUIDE

43

6704672

HOSE

44

6704671

HOSE

45

15K6

ADAPTER

46

6537669

HOSE 64''(1625,6mm) long

47

13K6

TEE

48

21K6

FITTING

49

31C1036

SCREW

50

6661615

SPROCKET

51

25E24

WASHER

52

57D10

NUT

53

33G608

SCREW Was 34G000506B - B

54

6704852

BUSHING
