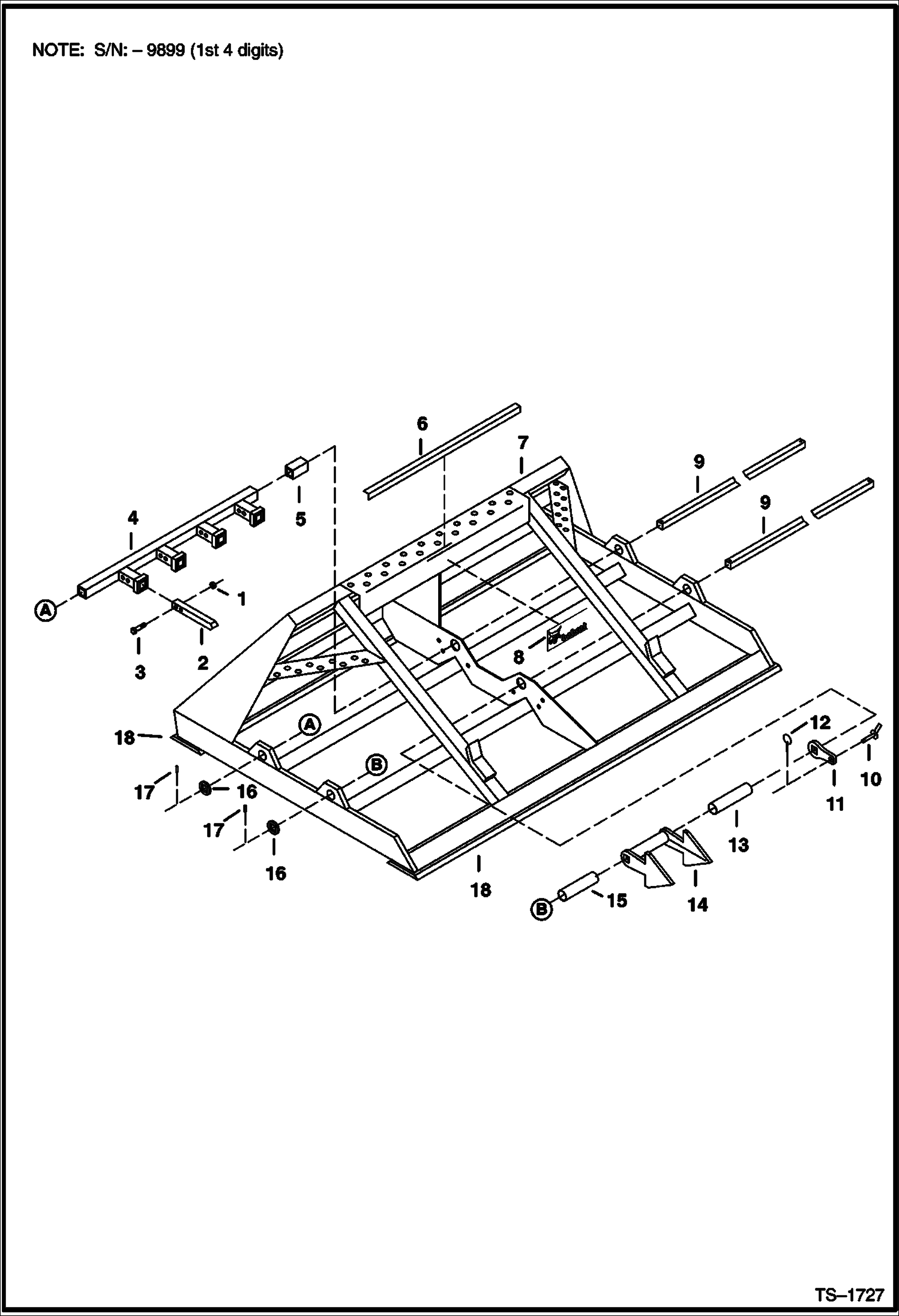

Запчасти Bobcat LAND PLANE LANDPLANE (Econo) (78 9899) Loader

1

87D8

NUT

2

6905717

CHISEL TOOTH

3

17C832

BOLT

4

6905716

TOOTH BAR

5

SPACER NLA - Was 6905720 - A

6

6905640

SURFACE anti-slip

7

MAIN FRAME NLA - Was 6905638 - A

8

6567988

DECAL, LOGO BOBCAT AND HEAD

9

6905715

SHAFT

10

6905718

LOCKING PIN

11

6905728

LOCK

12

6905719

CLICK PIN

13

6905709

LONG SPACER

14

6905712

SCARIFIER TEETH

15

6905711

MEDIUM SPACER

16

6905708

WASHER

17

PIN NLA - .25'' Diameter 2'' Long - Was 14J2532

18

6906063

EDGE, CUTTING WELD-ON 79'' 78'' model
