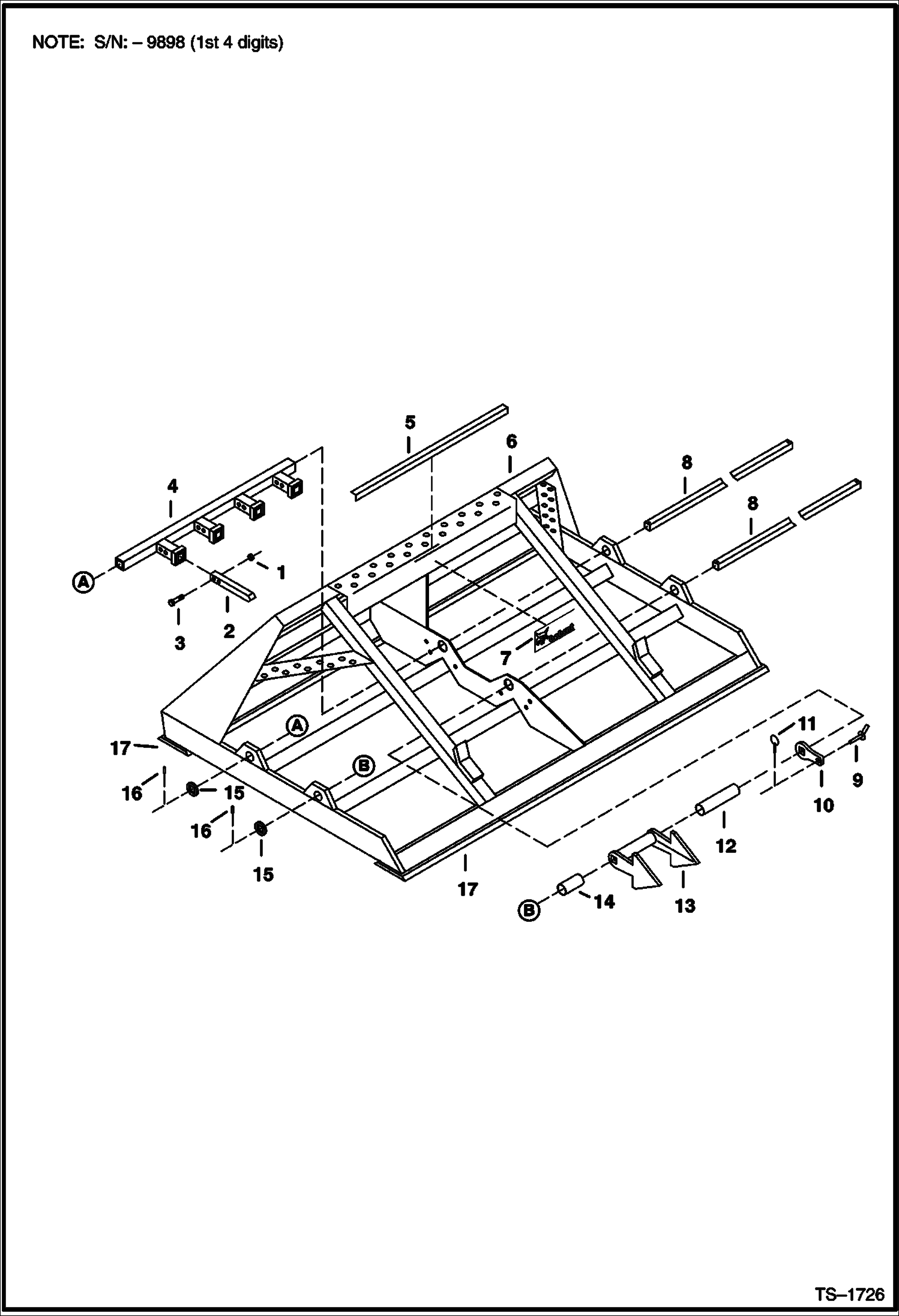

Запчасти Bobcat LAND PLANE LANDPLANE (Econo) (72 9898) Loader

1

87D8

NUT

2

6905717

CHISEL TOOTH

3

17C832

BOLT

4

6905716

TOOTH BAR

5

6905640

SURFACE anti-slip

6

MAIN FRAME NLA - Was 6905637 - A

7

6567988

DECAL, LOGO BOBCAT AND HEAD

8

6905714

SHAFT

9

6905718

LOCKING PIN

10

6905728

LOCK

11

6905719

CLICK PIN

12

6905709

LONG SPACER

13

6905712

SCARIFIER TEETH

14

6905710

SHORT SPACER

15

6905708

WASHER

16

PIN NLA - .25'' Diameter 2'' Long - Was 14J2532

17

6906201

EDGE, CUTTING WELD-ON 73'' 72'' model
