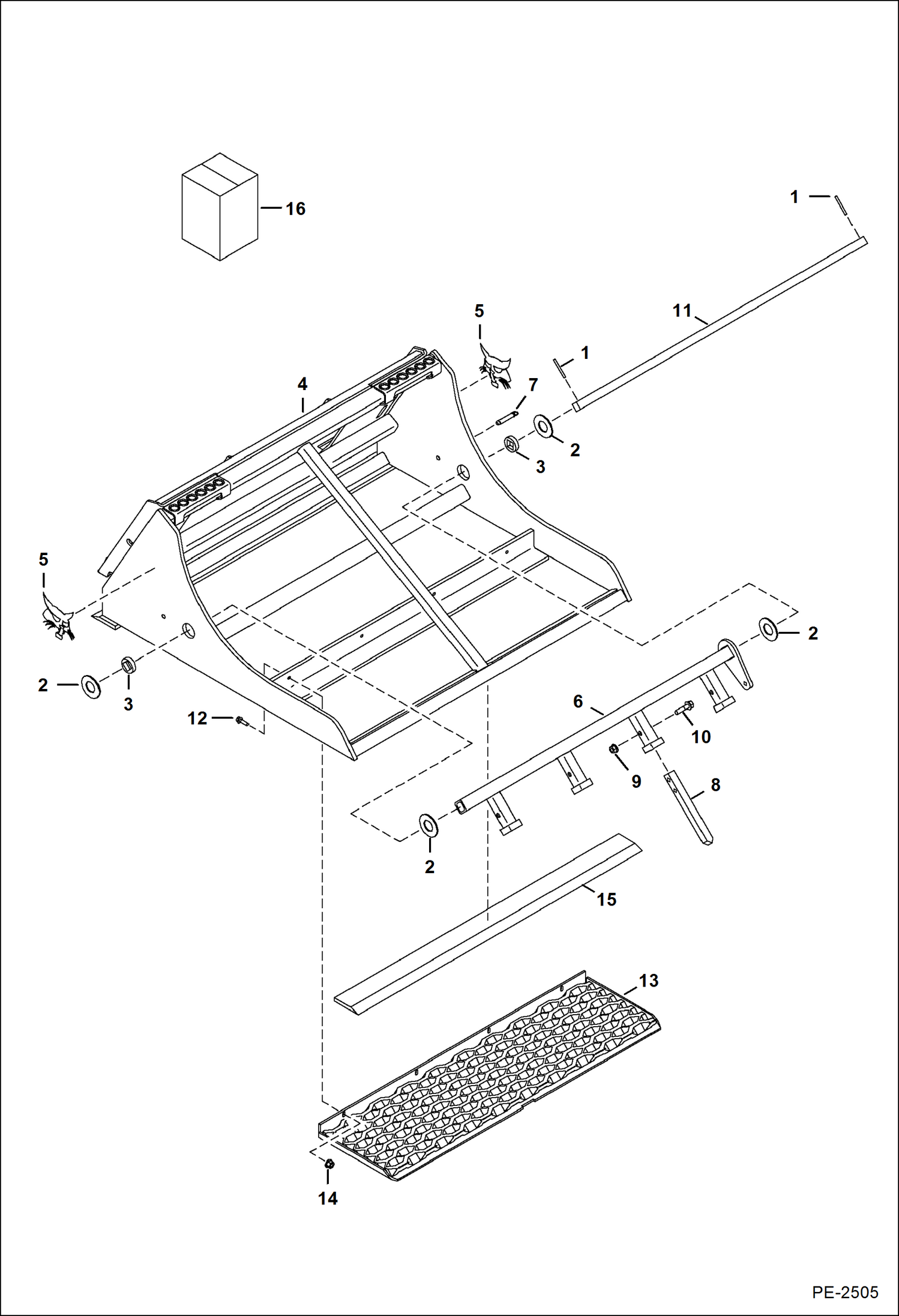

Запчасти Bobcat LAND PLANE LANDPLANE (463) (500 Series) (48 7173) Loader

1

14J2540

PIN

2

6906072

WASHER

3

6906077

BUSHING

4

6907172

MAIN FRAME

5

6700191

DECAL, LOGO BOBCAT HEAD

6

6907170

TOOTH BAR does not include teeth

7

6906071

PIN

8

6906069

TOOTH

9

83D8

NUT 5

10

31C832

BOLT

11

6907165

SHAFT

12

31C620

BOLT

13

6907171

GRATE

14

83D6

NUT 5

15

6907159

EDGE, CUTTING WELD-ON 48''

16

6729232AR

KIT translation

16

6729232BR

KIT translation
