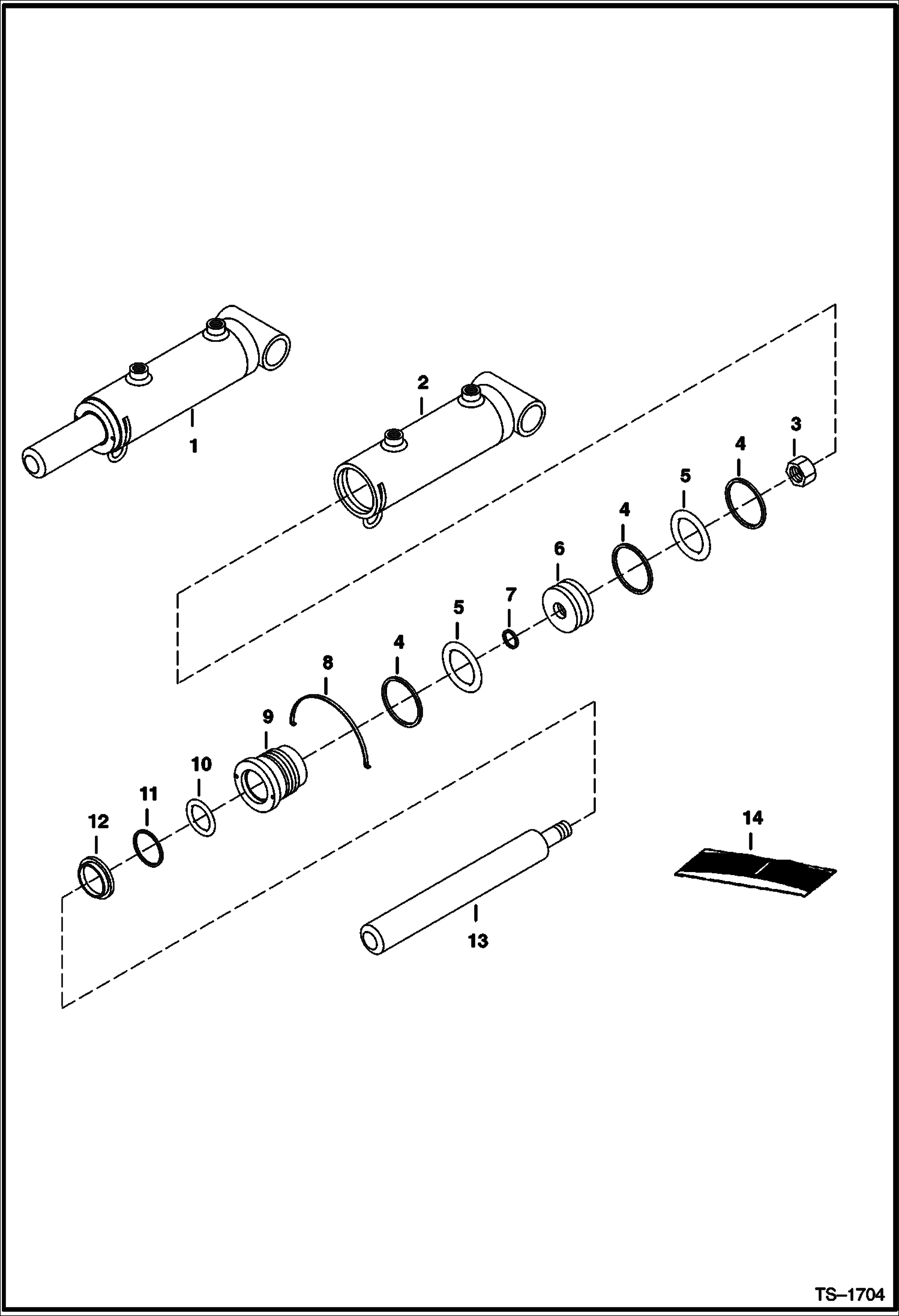

Запчасти Bobcat LAND PLANE LANDPLANE (Cylinder) Loader

1

6673735

CYLINDER Ref. 2-13

2

6673746

CASE

3

6673741

NUT

4

BACKUP NSS

5

O-RING NSS

6

6673743

PISTON

7

O-RING NSS

8

6673744

RETAINING RING

9

6673742

HEAD

10

O-RING NSS

11

BACKUP NSS

12

DUST SEAL NSS

13

6673745

ROD

14

6673747

SEAL KIT Ref. 4, 5, 7 & 10-12
