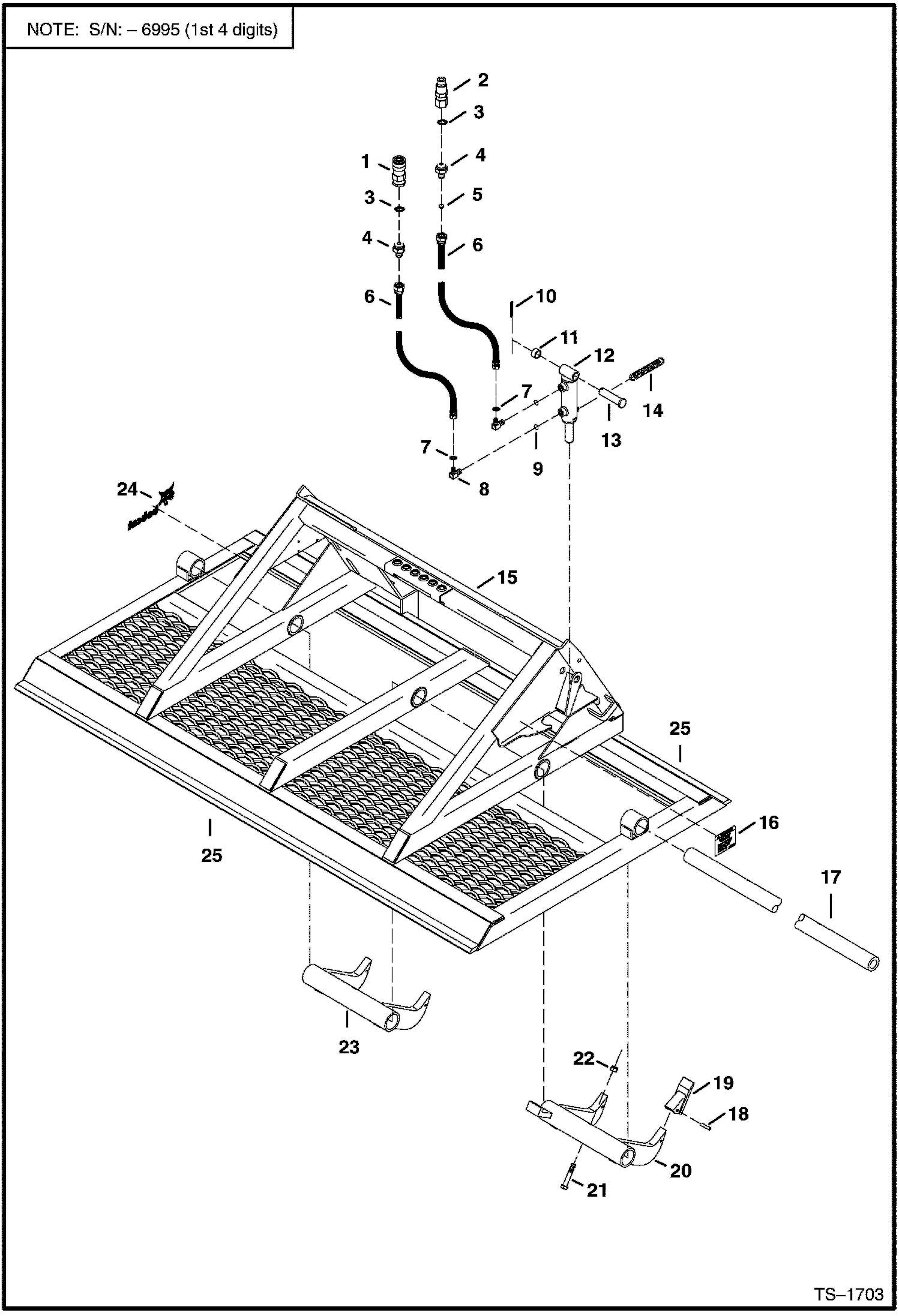

Запчасти Bobcat LAND PLANE LANDPLANE (6995) Loader

1

6672960

COUPLER, FF FEMALE straight

2

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

15KB1012

FITTING, HYD CONNECTOR Was 79K000012B - A

4

15KB1012

FITTING, HYD CONNECTOR Was 6673322 - A

5

6673319

ORIFICE

6

6673737

HOSE

7

97K6

O RING

8

17KB0606

FITTING Was 17KV00005B - A

9

99K6

O RING

10

1F632

PIN

11

6657219

SPACER

12

6673735

CYLINDER See Illustration LANDPLANE/ TS1704

13

6648595

PIN

14

6673736

SPRING

15

MAIN FRAME NLA - Was 6673740 - A

16

6673605

DECAL

17

6673733

TUBE

18

18J2028

PIN, ROLL Was 14J-3124 - B

19

1550017

TOOTH, BUCKET 25

20

6673739

TOOTH BAR with push bar

21

17C848

BOLT

22

87D8

NUT

23

6673738

TOOTH BAR

24

6567988

DECAL, LOGO BOBCAT AND HEAD

25

6676463

EDGE, CUTTING
