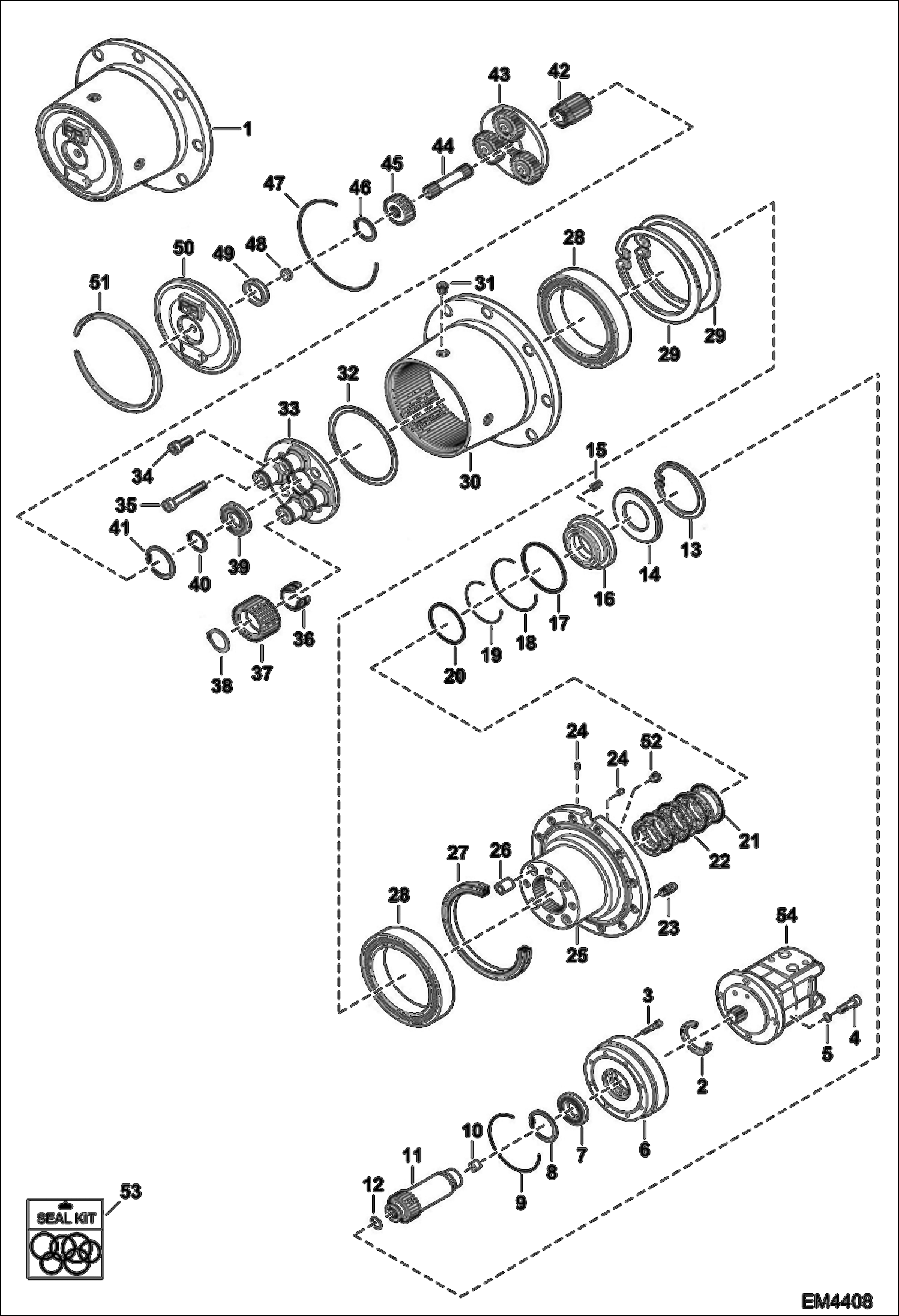

Запчасти Bobcat HOISTING WINCH REDUCTOR TELESCOPIC - EMEA Only

1

7016992

GEAR, REDUCTION

2

7016993

SEAL

3

7016994

SCREW

4

7016995

SCREW

5

7016996

WASHER

6

7016997

COVER

7

7016998

BEARING

8

7016999

RING

9

7017000

SEAL

10

7017001

INSERT

11

7017002

SHAFT

12

7017003

RING

13

7017004

RING

14

7017005

SPACER

15

7017006

SPRING

16

7017007

PISTON

17

7017008

SEAL

18

7017009

SEAL

19

7017010

SEAL

20

7017011

SEAL

21

7017012

DISC

22

7017013

DISC

23

7017014

VALVE

24

7017015

PLUG

25

7017016

SPINDLE

26

7017017

PIN

27

7017018

SEAL

28

7017019

BEARING

29

7017020

RING

30

7017021

SPIDER

31

7017022

PLUG

32

7017023

KIT

33

7017024

FLANGE

34

7017025

SCREW

35

7017026

SCREW

36

7017027

BEARING

37

7017028

GEAR

38

7017029

RING

39

7016998

BEARING

40

7017030

RING

41

7017031

RING

42

7017032

PINION

43

7017033

GEAR

44

7017034

SHAFT

45

7017035

PINION

46

7017036

RING

47

7017037

SEAL

48

7017038

INSERT

49

7017039

SPACER

50

7017040

COVER

51

7017041

RING

52

7017042

PLUG

53

7017043

KIT, SEAL W/Ref. 2,9,17-20,27,47

54

7016941

MOTOR See Illustration MOTOR/ EM4407
