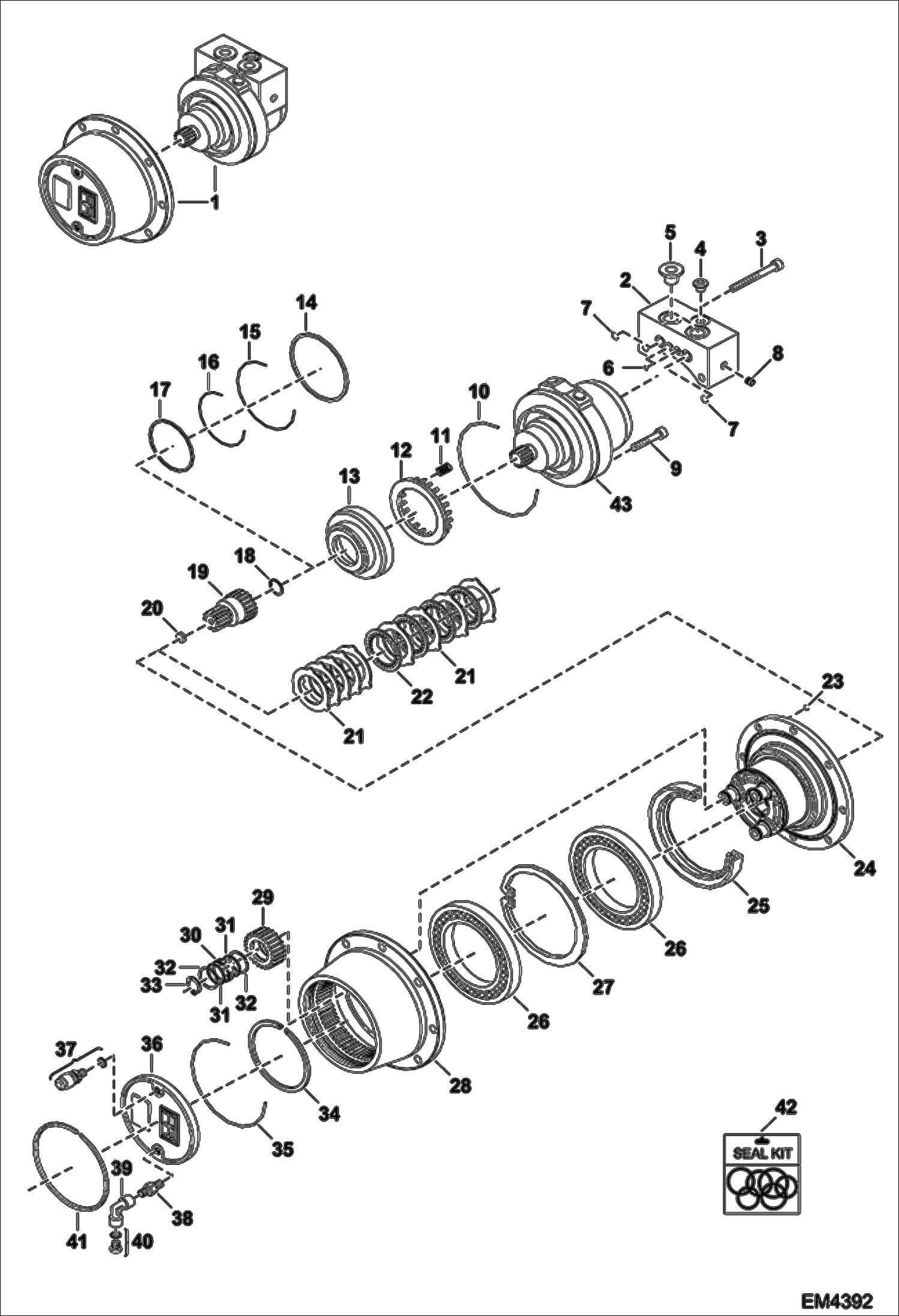

Запчасти Bobcat HOISTING WINCH REDUCTOR TELESCOPIC - EMEA Only

1

7015869

GEAR, REDUCTION W/Ref. 2-41

2

7015870

VALVE

3

7015871

SCREW

4

7015872

PLUG

5

7015873

PLUG

6

7015874

SEAL

7

7015875

SEAL

8

7015876

PLUG

9

7015877

SCREW

10

7015878

SEAL

11

7015879

SPRING

12

7015880

SPACER

13

7015881

PISTON

14

7015882

SEAL

15

7015883

SEAL

16

7015884

SEAL

17

7015885

SEAL

18

7015886

RING

19

7015887

SHAFT

20

7015888

INSERT

21

7015889

DISC

22

7015890

DISC

23

7015891

SEAL

24

7015892

SPINDLE

25

7015893

SEAL, OIL

26

7015894

BEARING

27

7015895

RING

28

7015896

SPIDER

29

7015897

GEAR

30

7015898

BEARING

31

7015899

RING, SLEWING

32

7015900

RING

33

7015901

RING

34

7015902

RING

35

7015903

SEAL

36

7015904

COVER

37

7015905

VALVE

38

7015906

SEAL

39

7015907

ELBOW

40

7015908

PLUG

41

7015909

RING NUT

42

7015910

KIT, SEAL W/Ref. 6,7,10,14-17,23,25,35,38

43

7015853

MOTOR See Illustration MOTOR/ EM4391
