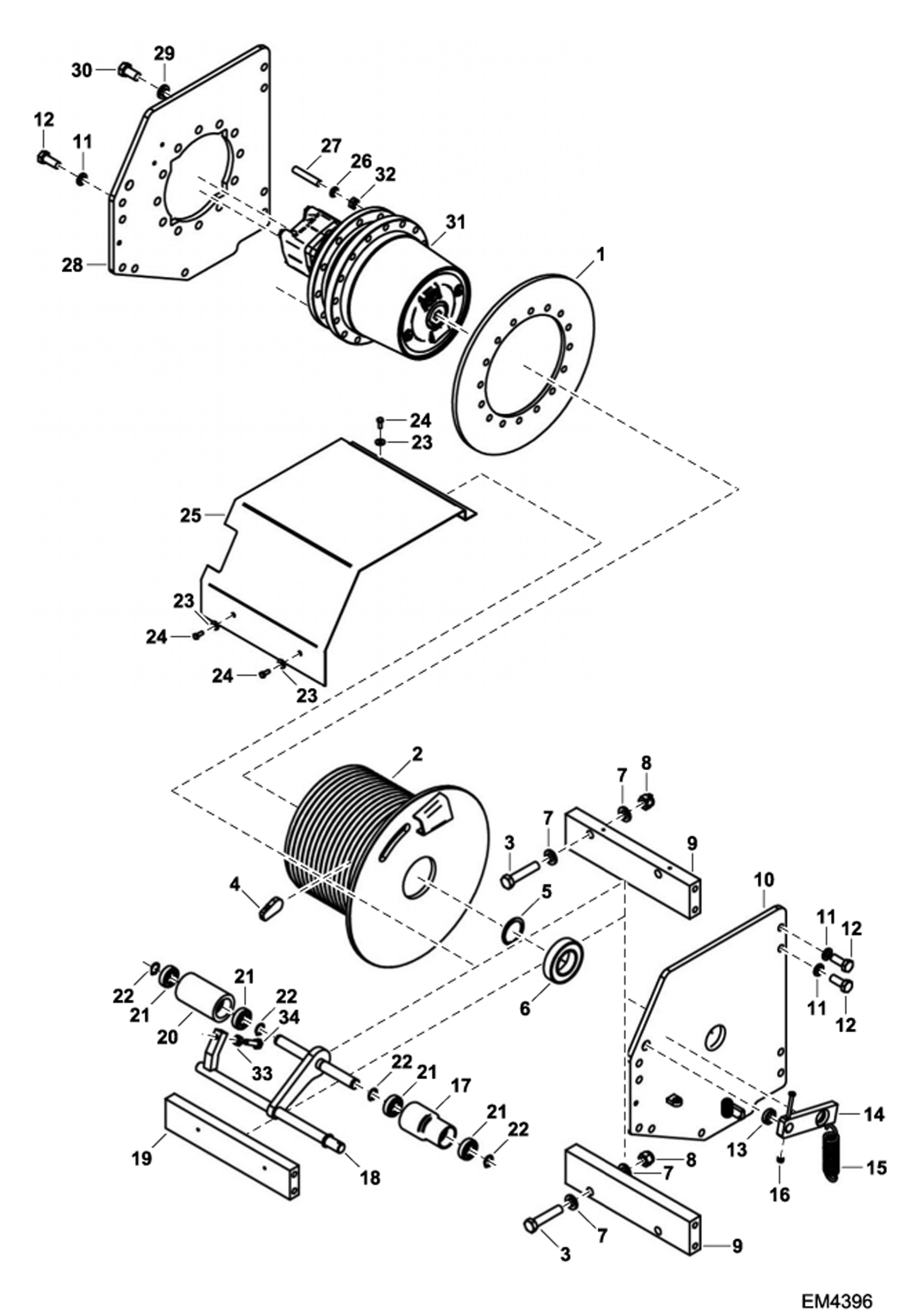

Запчасти Bobcat HOISTING WINCH WINCH (ROPE DRUM) TELESCOPIC - EMEA Only

1

7015732

PLATE

2

7015733

DRUM

3

7015734

SCREW

4

7015735

PLATE

5

7015736

RING

6

7015737

BEARING

7

7015769

WASHER

8

7015738

NUT

9

7015739

PLATE

10

7015740

PLATE

11

7015766

WASHER

12

7015770

SCREW

13

7015741

SPACER

14

7015742

PLATE

15

7015743

SPRING

16

7015744

NUT

17

7015745

ROLLER

18

7015746

LEVER

19

7015762

PLATE

20

7015747

ROLLER

21

7015748

BEARING

22

7015749

RING

23

7015772

WASHER

24

7015750

SCREW

25

7015751

PLATE

26

7015752

WASHER

27

7015753

SCREW

28

7015754

PLATE

29

7015755

WASHER

30

7015756

SCREW

31

7015757

MOTOR See Illustration MOTOR/ EM4405

32

7015758

NUT

33

7015697

NUT

34

7016871

SCREW
