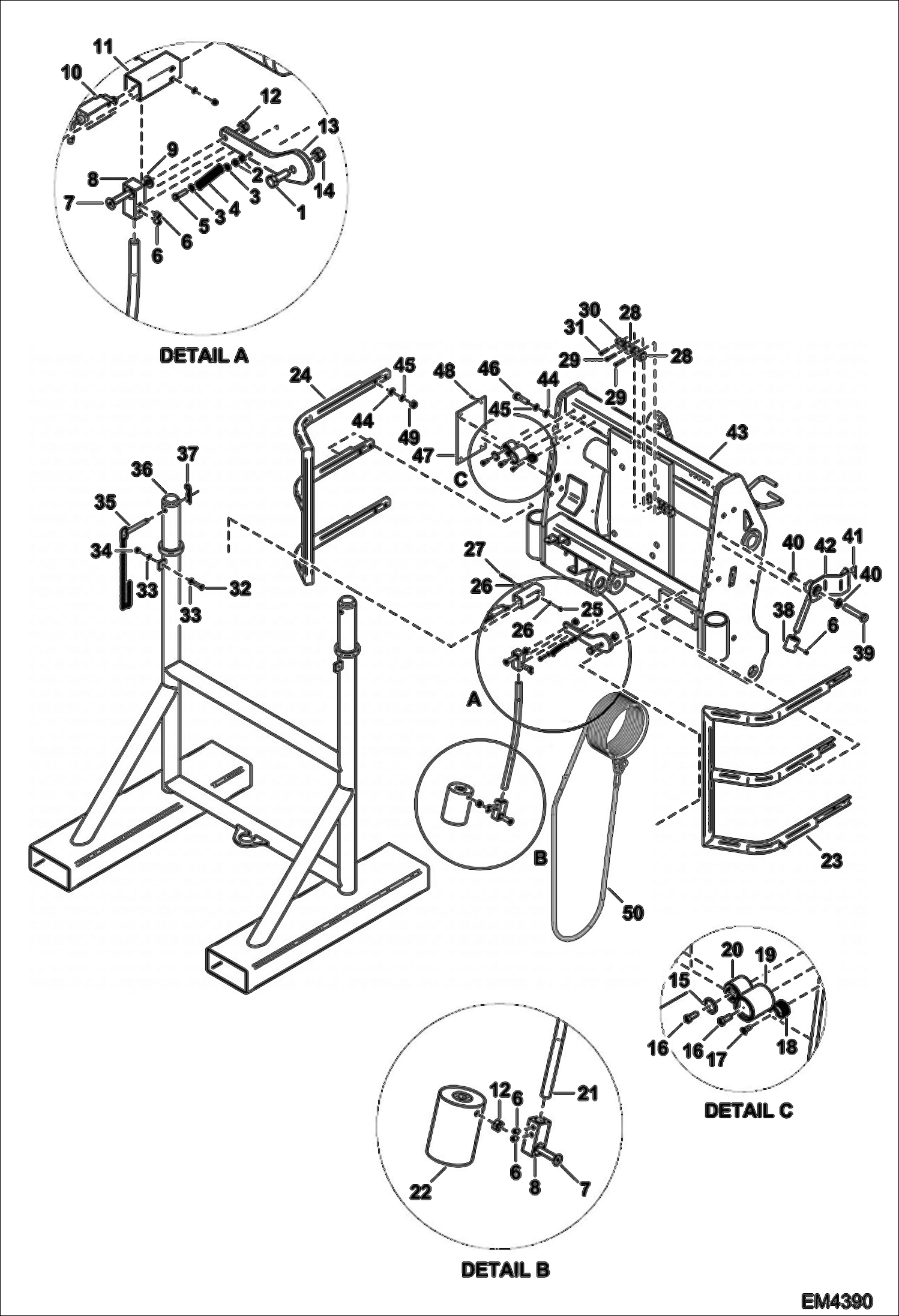

Запчасти Bobcat HOISTING WINCH HOISTING WINCH TELESCOPIC - EMEA Only

1

7015687

SCREW

2

7015688

NUT

3

7015772

WASHER

4

7015689

SPRING

5

7015690

SCREW

6

7015691

SCREW

7

7015692

SCREW

8

7015693

BLOCK

9

7015694

WASHER

10

7016869

SWITCH

11

7015696

HOUSING

12

7015697

NUT

13

7015698

LEVER

14

7015699

NUT

15

7015700

SEAL

16

7015701

SCREW

17

7015761

SCREW

18

7015702

SUPPORT

19

7015703

SUPPORT

20

7015704

SUPPORT

21

7015705

ROPE

22

7015706

COUNTERWEIGHT

23

7015707

FRAME, SAFETY

24

7015708

FRAME, SAFETY

25

7015709

NUT

26

7015710

WASHER

27

7015711

SCREW

28

7015712

COLLAR

29

7015713

SCREW

30

7015714

COLLAR

31

7015715

SCREW

32

7015716

SCREW

33

7015717

WASHER

34

7015776

NUT

35

7015718

PIN

36

7015719

SUPPORT

37

7015720

PIN

38

7015721

TUBE

39

7015722

SCREW

40

7015723

WASHER

41

7015724

ADHESIVE

42

7015725

PLATE

43

7015726

SUPPORT

44

7015727

WASHER

45

7015752

WASHER

46

7015728

SCREW

47

7015729

PLATE

48

7015730

RIVET

49

7015731

NUT

50

7016870

ROPE
