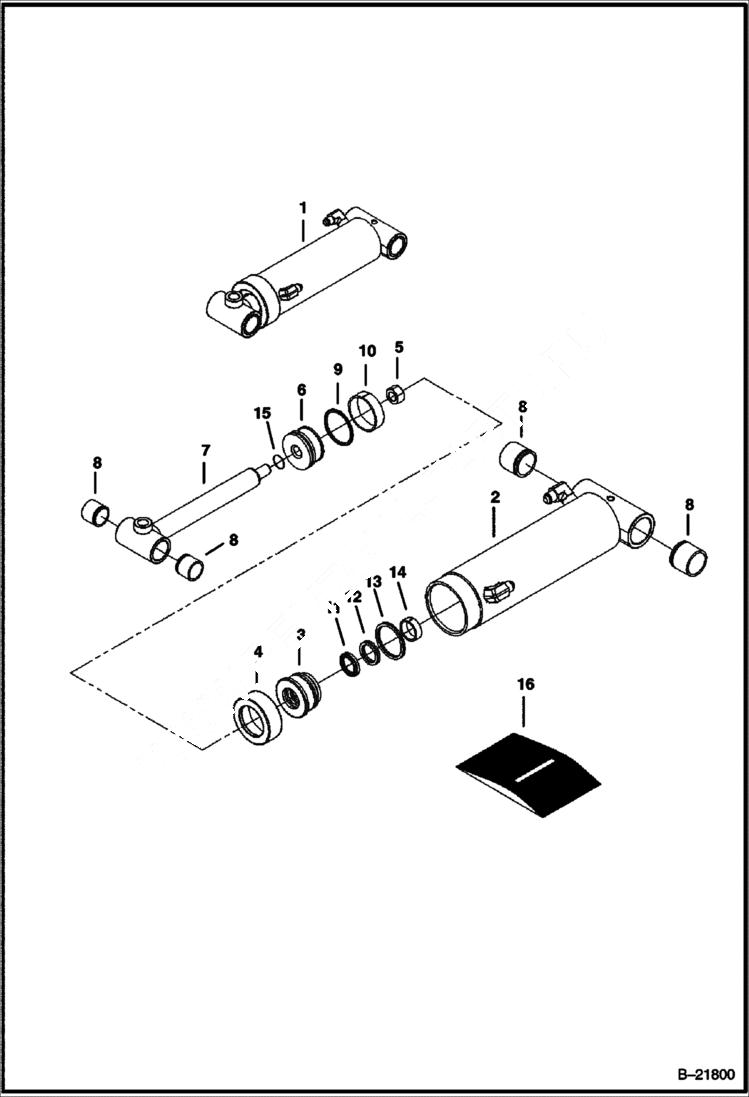

Запчасти Bobcat GRAPPLES ROTATING GRAPPLE (Hydraulic Cylinder) (Model 30 775400108 & Above & 7757) (Model 40 775300107 & Above & 7756) Экскаваторы

1

6683919

CYLINDER, GRAPPLE W/Ref 2-7, 9-15 - Also Order Ref 8 - model 40

1

6683920

CYLINDER ASSY 30 W/Ref 2-7, 9-15 - Also Order Ref 8 - model 30

2

6683941

CASE ASSY 40 model 40

2

6683942

CASE ASSY 30 model 30

3

6683943

HEAD, INNER 40 model 40

3

6683944

HEAD, INNER 30 model 30

4

6683945

HEAD, OUTER 40 model 40

4

6683946

HEAD, OUTER 30 model 30

5

62D12

NUT

6

6683947

PISTON 40 model 40

6

6683948

PISTON 30 model 30

7

6683949

SHAFT ASSY 40 model 40

7

6683950

SHAFT ASSY 30 model 30

8

6683951

BUSHING

9

SEAL NSS

10

WEAR RING NSS

11

WIPER NSS

12

SEAL NSS

13

SEAL NSS

14

WEAR RING NSS

15

O-RING NSS

16

6683952

SEAL KIT 40 model 40 - W/Ref. 9 - 15

16

6683953

SEAL KIT 30 model 30 - W/Ref. 9 - 15
