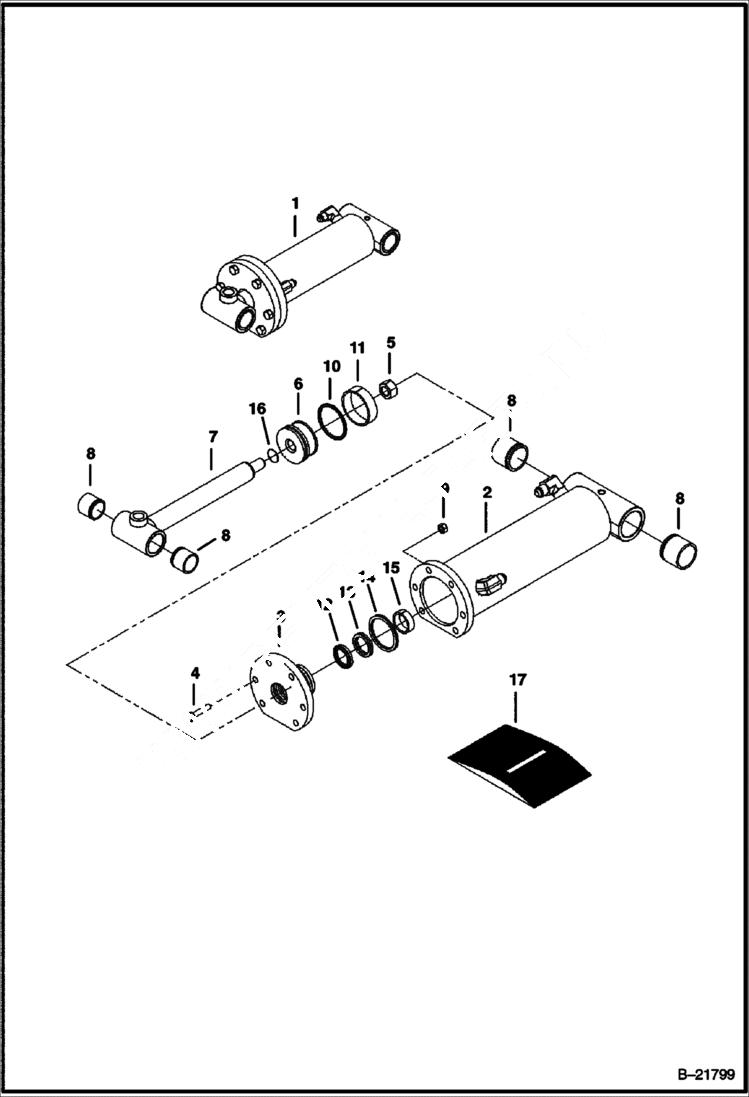

Запчасти Bobcat GRAPPLES ROTATING GRAPPLE (Hydraulic Cylinder) (Model 30 775400101 - 00107) (Model 40 775300101 - 00106) Экскаваторы

1

CYLINDER ASSY See Illustration ROTATING GRAPPLE/ B21800 NLA - model 40 - order 6683919 cylinder assy.

1

CYLINDER ASSY See Illustration ROTATING GRAPPLE/ B21800 NLA - model 30 - order 6683920 cylinder assy.

2

CASE See Illustration ROTATING GRAPPLE/ B21800 NLA - model 40 - order 6683919 cylinder assy.

2

CASE See Illustration ROTATING GRAPPLE/ B21800 NLA - model 30 - order 6683920 cylinder assy.

3

HEAD 40 NLA - model 30 - Was 6683958 - A

3

HEAD 30 NLA - model 30 - Was 6683959 - A

4

17C620

BOLT

5

61D12

NUT

6

6683947

PISTON 40 model 40

6

6683948

PISTON 30 model 30

7

SHAFT ASSY 40 NLA - model 40 - Order Ref. 1 - Was 6683960 - A

7

SHAFT ASSY 30 NLA - model 30 - Order Ref. 1 - Was 6683961 - A

8

6683951

BUSHING

9

61D6

NUT 5

10

SEAL NSS

11

WEAR RING NSS

12

WIPER NSS

13

SEAL NSS

14

SEAL NSS

15

WEAR RING NSS

16

O-RING NSS

17

6683952

SEAL KIT 40 model 40 - W/Ref. 10 - 16

17

6683953

SEAL KIT 30 model 30 - W/Ref. 10 - 16
