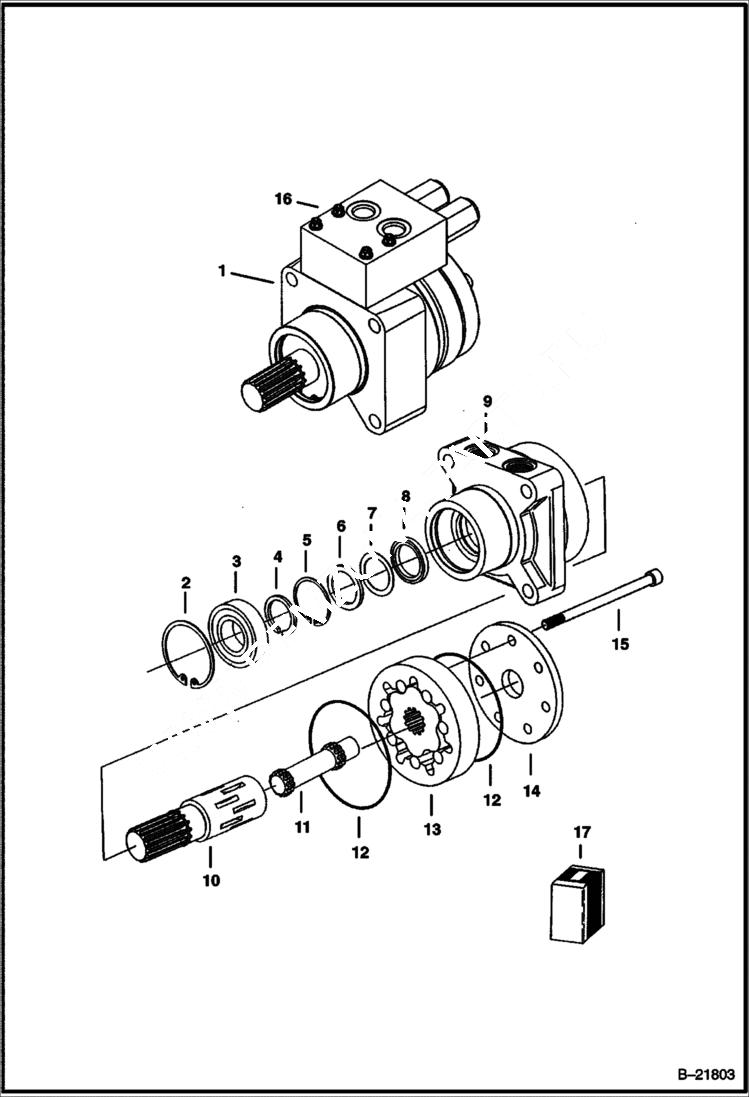

Запчасти Bobcat GRAPPLES ROTATING GRAPPLE (Hydraulic Motor) (Model 30) (Model 40) Экскаваторы

1

6680301

MOTOR model 30 - W/Ref. 2 - 16

1

6680302

MOTOR model 40 - W/Ref. 2 - 16

2

6684018

RING retaining

3

6684019

BEARING

4

6684020

RING retaining

5

6684021

RING retaining

6

6684022

WASHER

7

6659511

BACKUP RING backup

8

6689096

SEAL pressure - Was 6665224 - A

9

6684023

HOUSING

10

6684024

SHAFT, OUTPUT

11

6684025

DRIVE model 30

11

6684026

DRIVE model 40

12

6684027

SEAL

13

6684028

GEROLER ASSY model 30

13

6684029

GEROLER model 40

14

6684030

CAP, END

15

6684031

BOLT

16

6684014

MANIFOLD See Illustration ROTATING GRAPPLE/ B21802 - Was 6684013 - D

17

6684032

SEAL KIT Ref. 2-8 & 12
