ROTATING GRAPPLE (Swivel Assembly) (Model 30) (Model 40)

Запчасти Bobcat GRAPPLES ROTATING GRAPPLE (Swivel Assembly) (Model 30) (Model 40) Экскаваторы

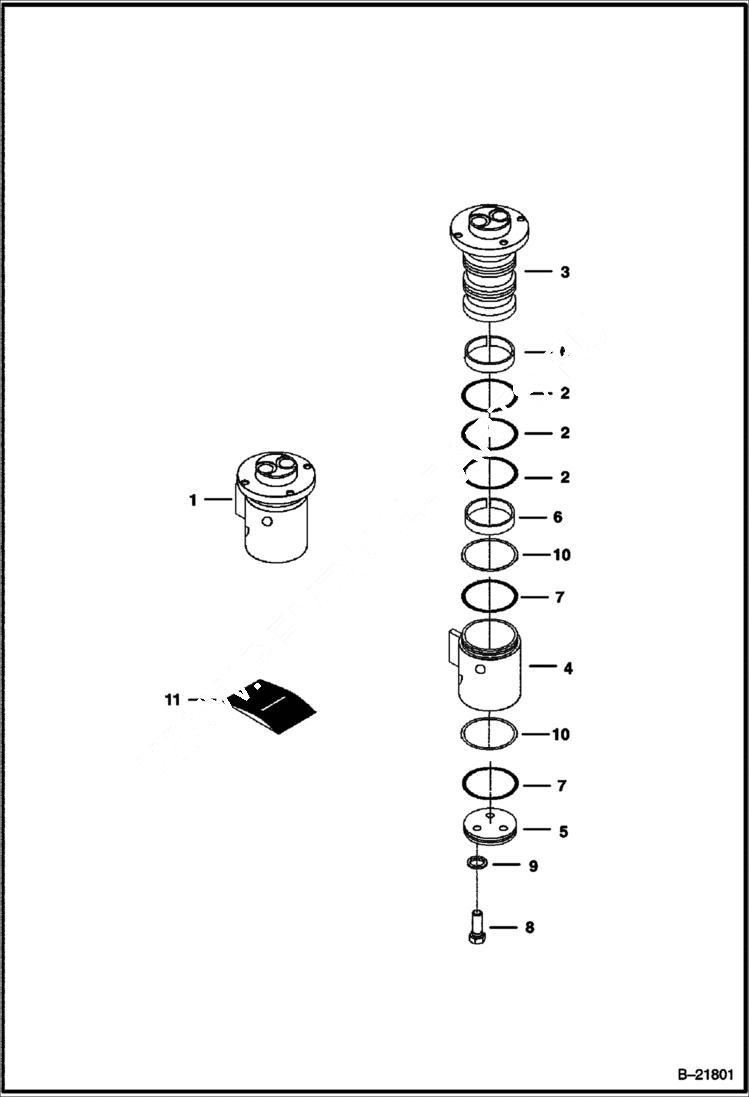

Схема запчастей Bobcat GRAPPLES - ROTATING GRAPPLE (Swivel Assembly) (Model 30) (Model 40) Экскаваторы
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6683926

SWIVEL ASSY W/Ref. 2 - 10

2

SEAL NSS - order ref. 11

3

6683962

PISTON

4

6683963

BARREL

5

6683964

CAP

6

WEAR RING NSS - order ref. 11

7

SEAL NSS - order ref. 11

8

17C616

BOLT 5

9

4E6

WASHER

10

WASHER NSS - thrust

11

6683965

SEAL KIT W/Ref. 2, 6, 7, 10
