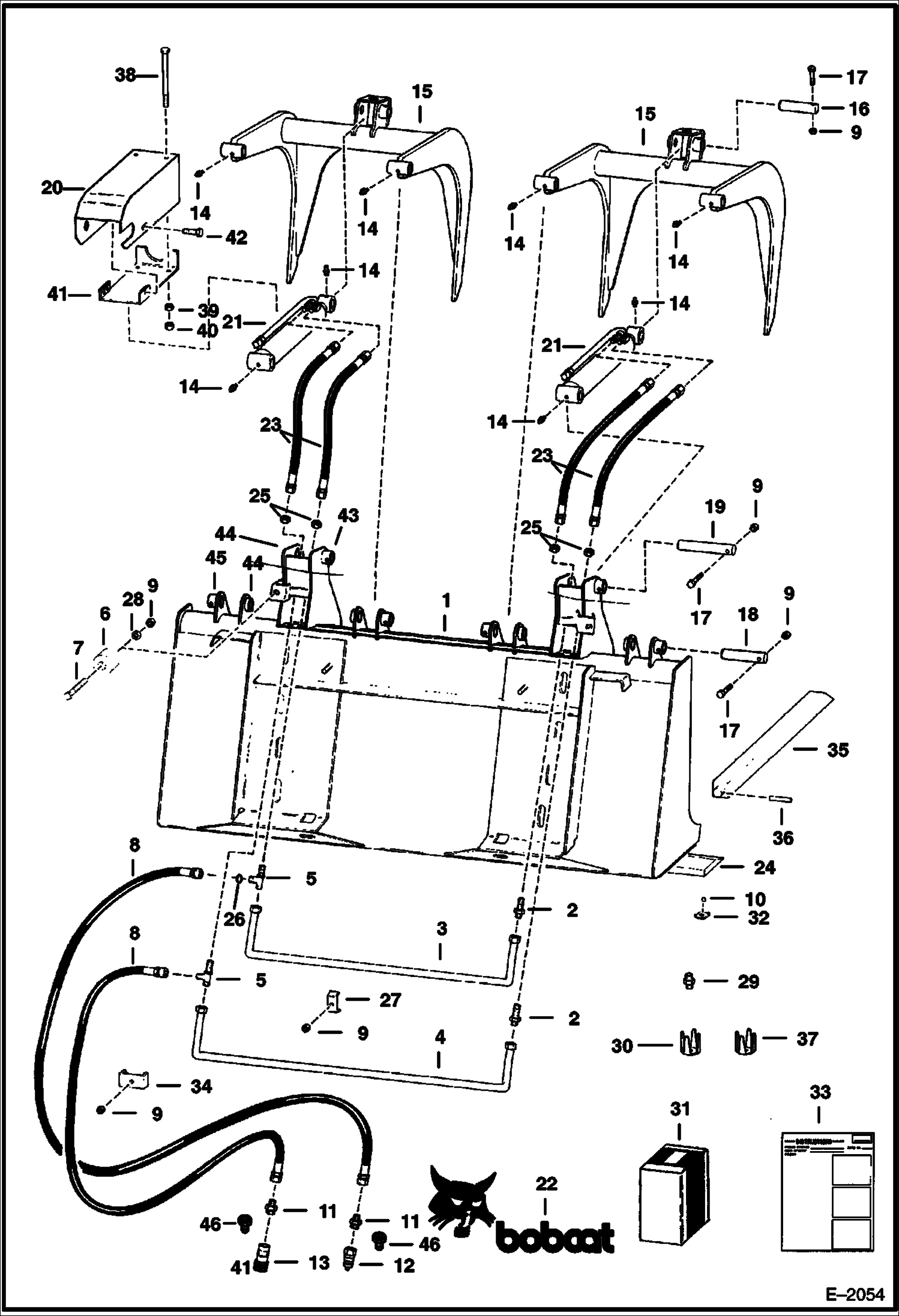

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 68 - 2400 Series S/N 00187 & Above Loader

1

BUCKET NLA - Was Sales - A

2

45K5

FITTING

3

6538320

TUBE

4

6538319

TUBE

5

91K5

TEE Was 91KN00005B - A

5

97K6

O RING

6

6585808

STOP

7

17C628

BOLT

8

6538321

HOSE

9

85D6

NUT, 5

10

6593680

RETAINER

11

731795

CONNECTR Was 731695 - D

12

6598757

COUPLER, POPPET MALE straight

12

6674688

COUPLER, FF MALE straight - Was 6667808 - A

12

6679841

SEAL Was 6672026 - A

13

6598758

COUPLER, POPPET FEMALE straight

13

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

14

10H25

FITTING, GREASE 5

15

6567775

TOOTH

16

6547593

PIN, PIVOT

17

17C640

BOLT 5

18

6547595

PIN

19

6704288

PIN, PIVOT Use without weld-on bushing - 7''(178mm) long - Was 6553061 - A

19

6531433

PIN Use W/weld-on bushing-7.43'' lg

20

SHIELD NLA - Order 6588040 , 6581433 & Ref. 38-42 - W/out weld-on bushing - Was 6567770 - A

20

6588040

SHIELD With weld-on bushing

21

6593329

CYLINDER, GRAPPLE See Illustration CYLINDER - 943 & 953/ C2893B WAS 6593327 - A

22

6567987

DECAL, LOGO BOBCAT AND HEAD LH

22

6567988

DECAL, LOGO BOBCAT AND HEAD RH

23

6630942

HOSE

24

6588369

CUTTING EDGE Was 6567758 - A

25

86F5

NUT

26

6569312

ORIFICE Dump Restrict. For Grapple Cyl.

27

6502426

CLAMP

28

25E17

WASHER 5

29

RESTRICTOR NLA - Dump Restriction For Tilt Cyl. Was 6662901 - A

30

6579152

RESTRICTOR Dump Restriction For Tilt Cyl. on Loader S/N 12001 & Above

31

6570922

INSTRUCTIONS Dump Restriction - Was 6570352

32

RESTRICTOR NLA - Dump Restriction for Tilt Cylinder - Was 6592762 - A

33

6532606

KIT Dump Restrictor -Ref. 10, 27-29, 30, 31, 32 & 37

34

6568476

CLAMP

35

6569861

TOOTH, GRAPPLE

36

14J3740

PIN

37

6587315

ORIFICE

38

17C6104

BOLT

39

7D6

NUT

40

61D6

NUT 5

41

6588042

COVER

42

35C612

BOLT

43

6588044

BUSHING

44

6555989

BUSHING

45

6555987

BUSHING

46

6668096

ADAPTER Use with flush face couplers
