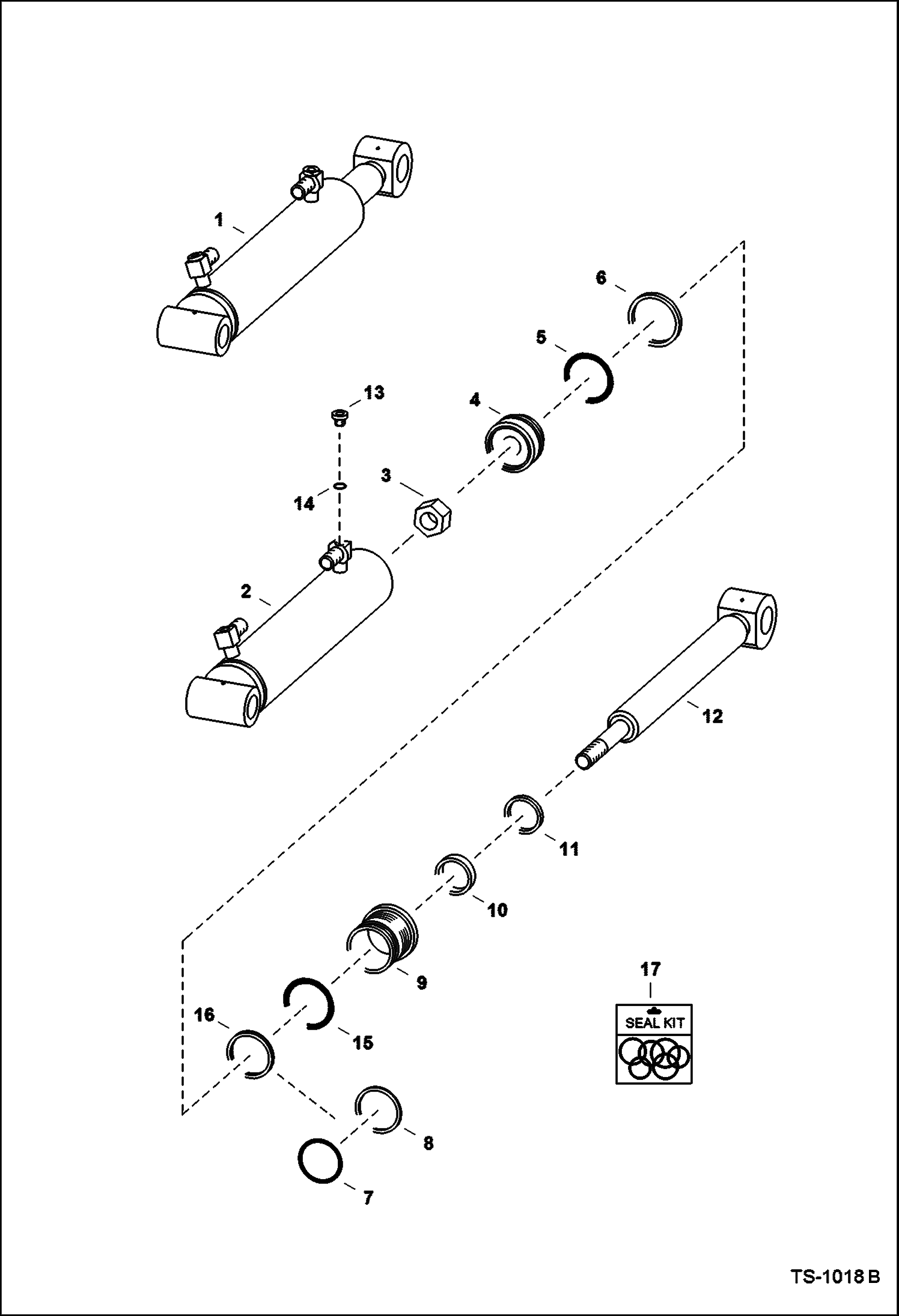

Запчасти Bobcat GRAPPLES GRAPPLE CYLINDER 1600, 2000 & 2400 - W/1.25 (31,75mm) & 2 Elbows Loader

1

6530564

CYLINDER Ref. 2 - 12 & 15

2

6530565

CASE

3

92D12

NUT Was 86D000012B - A

4

6558196

PISTON

5

SEAL NSS

6

SEAL NSS

7

O-RING NSS

8

WASHER NSS - back-up

9

6539323

HEAD Was 6532702 - A

10

SEAL NSS - u-cup

11

SEAL NSS - wiper

12

6530566

ROD

13

47K2

PLUG

14

79K3

O RING 10

15

O-RING NSS

16

6589831

SEAL KIT Ref. 5-8, 10, 11 & 15 - Was 6586298 - A
