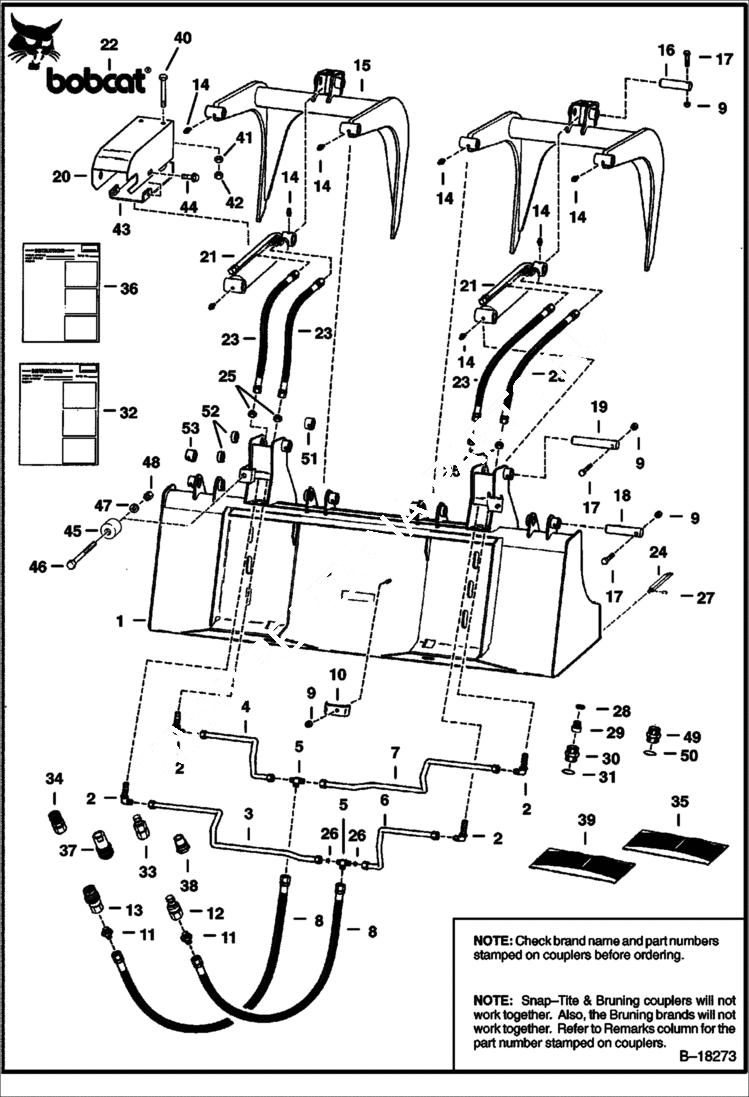

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 943 & 953 78 (1981mm) Loader

1

BUCKET NLA - Was Sales - A

2

88F5

ELBOW

3

6567784

TUBE

4

6567785

TUBE

5

666491

TEE

6

6567782

TUBE

7

6567783

TUBE

8

1318132

HOSE

9

85D6

NUT, 5

10

6568476

CLAMP

11

15KB1012

FITTING, HYD CONNECTOR Was 755055B - A

12

QUICK COUPLER NLA - male snap-tite - See Note - Order Ref. 33 & 34 - Was 6631573 - A

13

QUICK COUPLER NLA - remale snap-tite - See Note - Order Ref. 33 & 34 - Was 6631574 - A

13

U-PACKING NLA - Was 6632280 - A

14

10H25

FITTING, GREASE 5

15

6567775

TOOTH

16

6547593

PIN, PIVOT

17

17C640

BOLT 5

18

6547595

PIN

19

6553061

PIN Use W/O Weld-on Bushing 6.54'' Long

19

6531433

PIN Use W/Weld-on Bushing 7.43'' Long

20

SHIELD NLA - Order 6588040 , 6531433 - & Ref. 40 - 44 - W/O Weld-on Bushing - Was 6567770 - A

20

6588040

SHIELD W/Weld-on Bushing

21

CYLINDER See Illustration CYLINDER - 943 & 953/ C2893A

22

6567987

DECAL, LOGO BOBCAT AND HEAD LH

22

6567988

DECAL, LOGO BOBCAT AND HEAD RH

23

6630942

HOSE

24

6569861

TOOTH, GRAPPLE

25

86F5

NUT

26

6569312

ORIFICE Dump Restriction For Grapple cyl.

27

14J3740

PIN

28

742280

RING Dump Restriction For Tilt cyl.

29

6568396

POPPET Dump Restriction For Tilt cyl.

30

6567731

ADAPTER Dump Restriction For Tilt cyl.

31

79K14

O RING 10 Dump Restriction For Tilt cyl.

32

6570352

INSTRUCTIONS Dump Restriction

33

6641358

COUPLER Male - Bruning 8609-037 - Use W/Ref. 33 - See Note

34

6641359

COUPLER Female - Bruning 8609-036 - Use W/Ref. 33 - See Note

35

6648561

SEAL KIT For Both Ref. 33 & 34 Bruning 8609-036 & 8609-037 Couplers

36

6570746

INSTRUCTIONS mounting

37

6648968

QUICK COUPLER Female - Bruning SM-803 - Use W/Ref. 38 - See Note

38

6648970

QUICK COUPLER Male - Bruning SM-804 - Use W/Ref. 37 - See Note

39

6655796

SEAL KIT For Ref 37 - Bruning SM-804

40

17C6104

BOLT

41

7D6

NUT

42

61D6

NUT 5

43

6588042

COVER

44

35C612

BOLT

45

6585808

STOP

46

17C628

BOLT

47

25E17

WASHER 5

48

85D6

NUT, 5 Was 87D000006B - B

49

6666654

RESTRICTER dump - for 953

50

79K12

O RING 10 for 953 dump restricter

51

6588044

BUSHING

52

6555989

BUSHING

53

6555987

BUSHING
