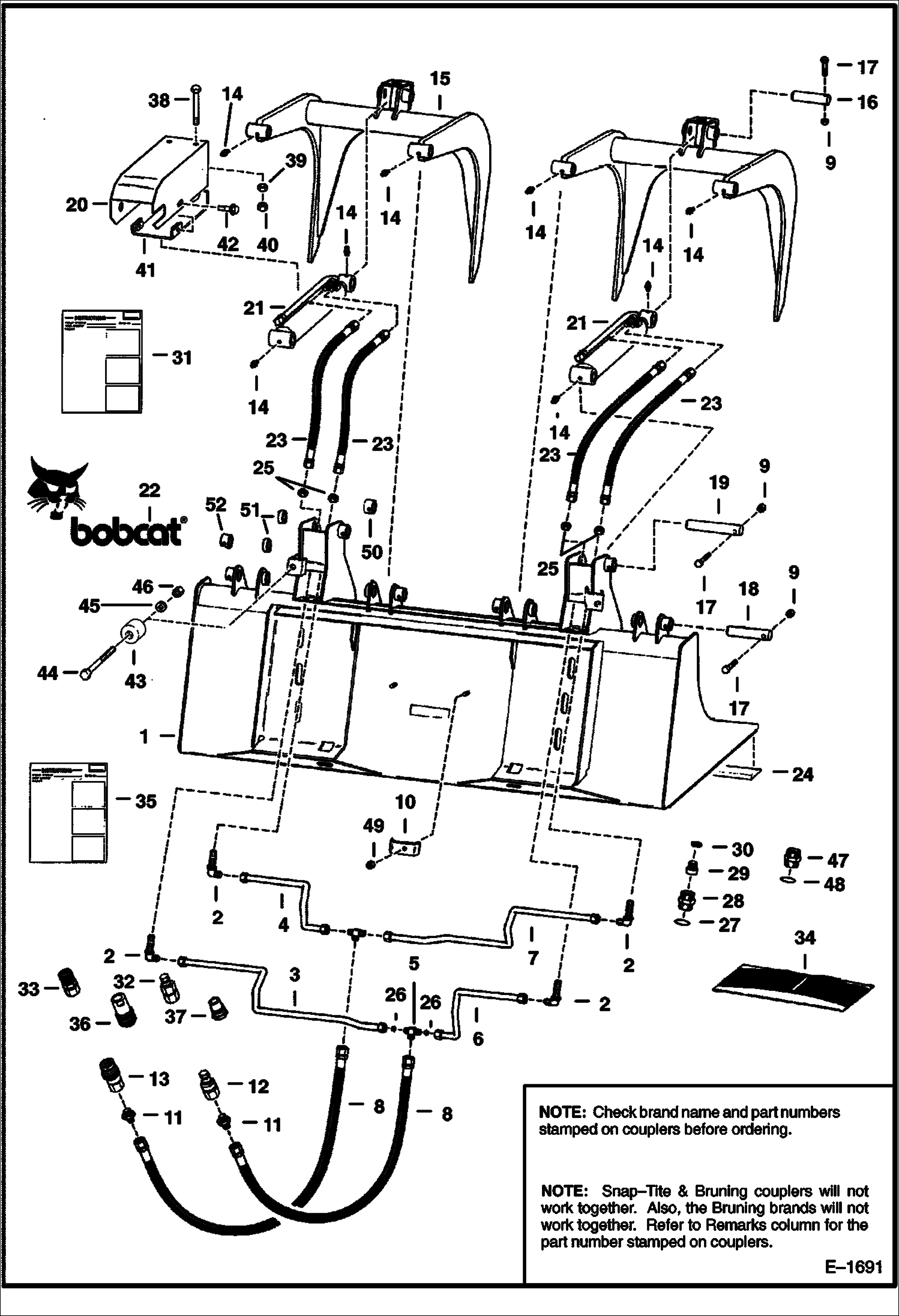

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 943 & 953 68 (1727mm) Loader
№
Артикул
Название
Примечание
Количество
1
BUCKET NLA - Was Sales - A
2
88F5
ELBOW
3
6567784
TUBE
4
6567785
TUBE
5
666491
TEE
6
6567782
TUBE
7
6567783
TUBE
8
1318132
HOSE
9
85D6
NUT, 5
10
6568476
CLAMP
11
15KB1012
FITTING, HYD CONNECTOR Was 755055B - A
12
QUICK COUPLER NLA - male snap-tite - See Note - Order Ref. 32 & 33 - Was 6631573 - A
13
QUICK COUPLER NLA - female snap-tite - See Note - Order Ref. 32 & 33 - Was 6631574 - A
13
U-PACKING NLA - Was 6632280 - A
15
6567775
TOOTH
16
6547593
PIN, PIVOT
18
6547595
PIN
19
6553061
PIN Use W/O Weld-on Bushing 6.54'' Long
19
6531433
PIN Use W/Weld-on Bushing 7.43'' Long
20
SHIELD NLA - Order 6588040 , 6531433 & Ref. 38-34 - W/O Weld-on Bushing Was 6567770 - A
20
6588040
SHIELD W/Weld-on Bushing
21
CYLINDER See Illustration CYLINDER - 943 & 953/ C2893A
22
6567987
DECAL, LOGO BOBCAT AND HEAD LH
22
6567988
DECAL, LOGO BOBCAT AND HEAD RH
23
6630942
HOSE
24
6588369
CUTTING EDGE Was 6567758 - A
25
86F5
NUT
26
6569312
ORIFICE Dump Restriction For Grapple cyl.
27
79K14
O RING 10 Dump Restriction For Tilt cyl.
28
6567731
ADAPTER Dump Restriction For Tilt cyl.
29
6568396
POPPET Dump Restriction For Tilt cyl.
30
742280
RING Dump Restriction For Tilt cyl.
31
6570352
INSTRUCTIONS Dump Restriction
32
6641358
COUPLER Male - Bruning 8609-037 - Use Ref. 33 - See Note
33
6641359
COUPLER Female - Bruning 8609-036 - Use Ref. 33 - See Note
34
6648561
SEAL KIT For Both Ref. 32 & 33 Bruning 8609-036 & 8609-037 Couplers
35
6570746
INSTRUCTIONS mounting
36
6648968
QUICK COUPLER Female - Bruning SM-803 - Use Ref. 37 - See Note
37
6648970
QUICK COUPLER Male - Bruning SM-804 - Use W/Ref. 36 - See Note
38
17C6104
BOLT
39
7D6
NUT
40
61D6
NUT 5
41
6588042
COVER
42
35C612
BOLT
43
6585808
STOP
44
17C628
BOLT
45
25E17
WASHER 5
46
85D6
NUT, 5 Was 87D000006B - B
47
6666654
RESTRICTER dump - for 953
49
59D6
NUT
50
6588044
BUSHING
51
6555989
BUSHING
