Запчасти Bobcat GRAPPLES HYDRAULIC CYLINDER - 900 Series Grapple Forks Loader

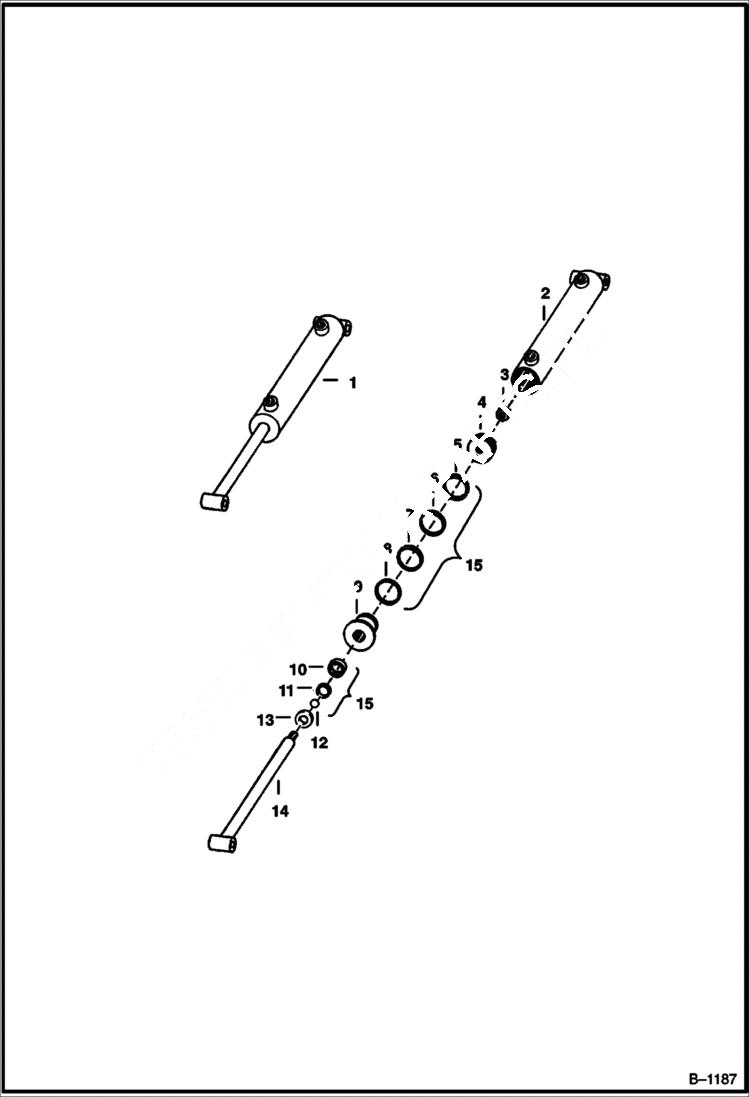

Схема запчастей Bobcat GRAPPLES - HYDRAULIC CYLINDER - 900 Series Grapple Forks Loader

Артикул

Название

Примечание

Количество

1

6509130

CYLINDER

2

CASE NLA

3

92D12

NUT Was 86D000012B - B

4

6516200

PISTON

5

25K30210

O-RING

6

6516229

PISTON SEAL

7

25K60212

O RING 10

8

73K332

RING back-up - Was 80K000332B - B

9

6586342

HEAD Was 6529998 - A

10

6665184

SEAL Was 6519519 - A

11

6665208

SEAL wiper - Was 1657085B - A

12

25K20020

O RING 10

13

664432

WASHER

14

6516198

ROD

15

6589871

SEAL KIT Ref. 3, 5 - 8 & 10 - 12 - Was 6505586 - A

Выбрано товаров: 15
